Engine Performance
>>
System
>>
Engine Controls - Tests W/Codes - PFI
>>
Diagnostic Code Chart
>>
Code 24: Idle Speed Control (ISC) Solenoid Valve
Code 24: Idle Speed Control (ISC) Solenoid Valve
Fig 1: Schematic - Code 24, Idle Speed Control (ISC) Solenoid Valve

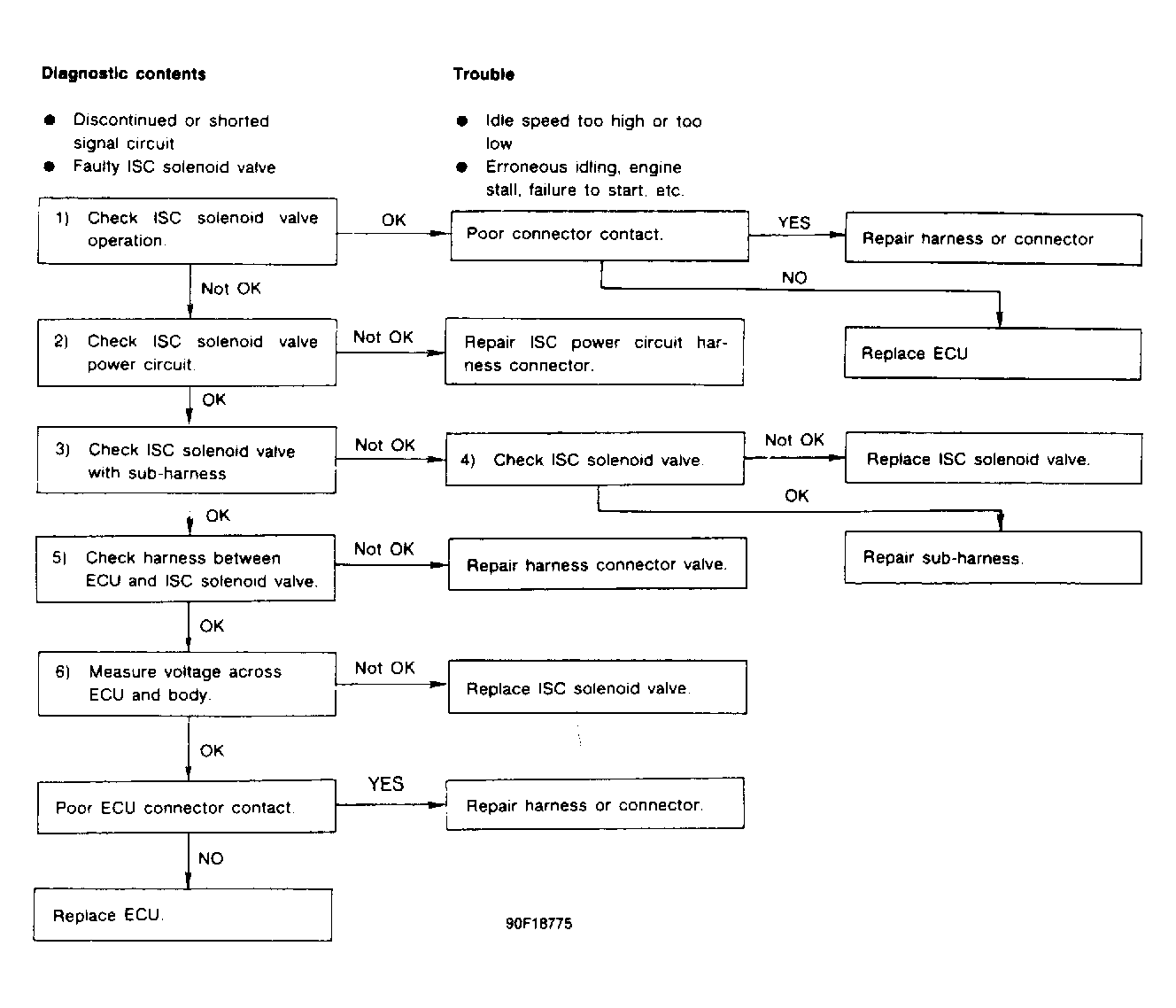

Fig 2: Flow Chart - Code 24, Idle Speed Ctrl (ISC) Solenoid Valve
