Clear Memory Mode

Fig 1: Flow Chart - Clear Memory Mode (1 of 2)

G90G18768

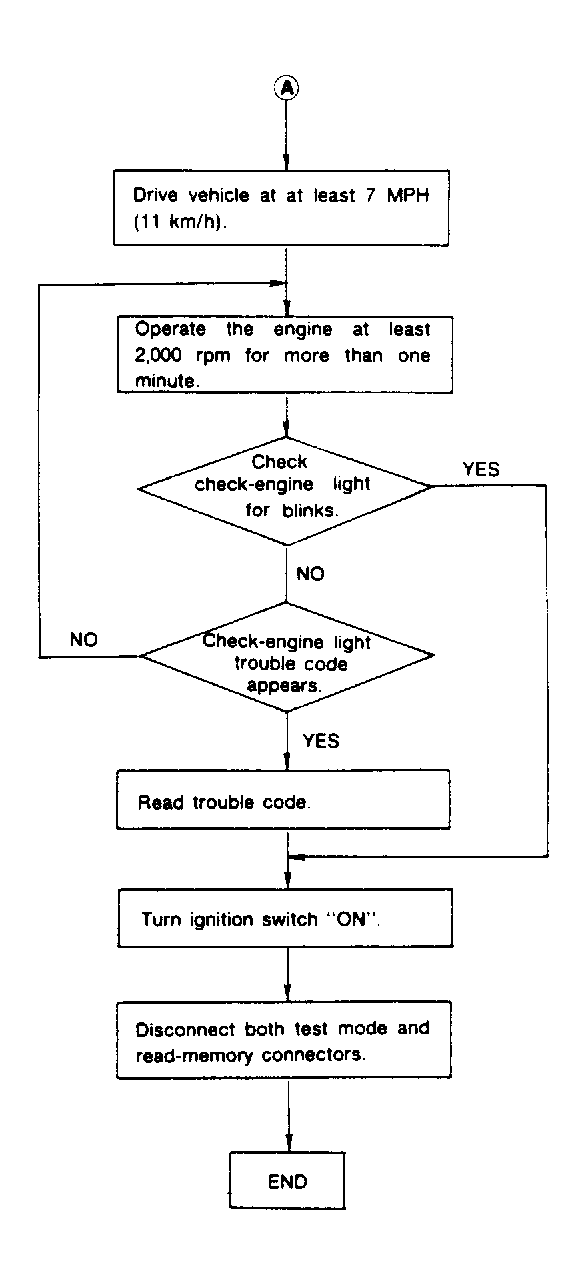

Fig 2: Flow Chart - Clear Memory Mode (2 of 2)

G91E18329
