Air Bag Module Check

WARNING: This page is about a different car, the 1992 Subaru SVX and 1992 Subaru Legacy. However, it is still accessible from the selected car via links, so may be relevant.

Visually inspect air bag module wiring harness for pinched or damaged wires. If wires are okay, replace control unit. If wires are pinched or damaged, replace air bag module.

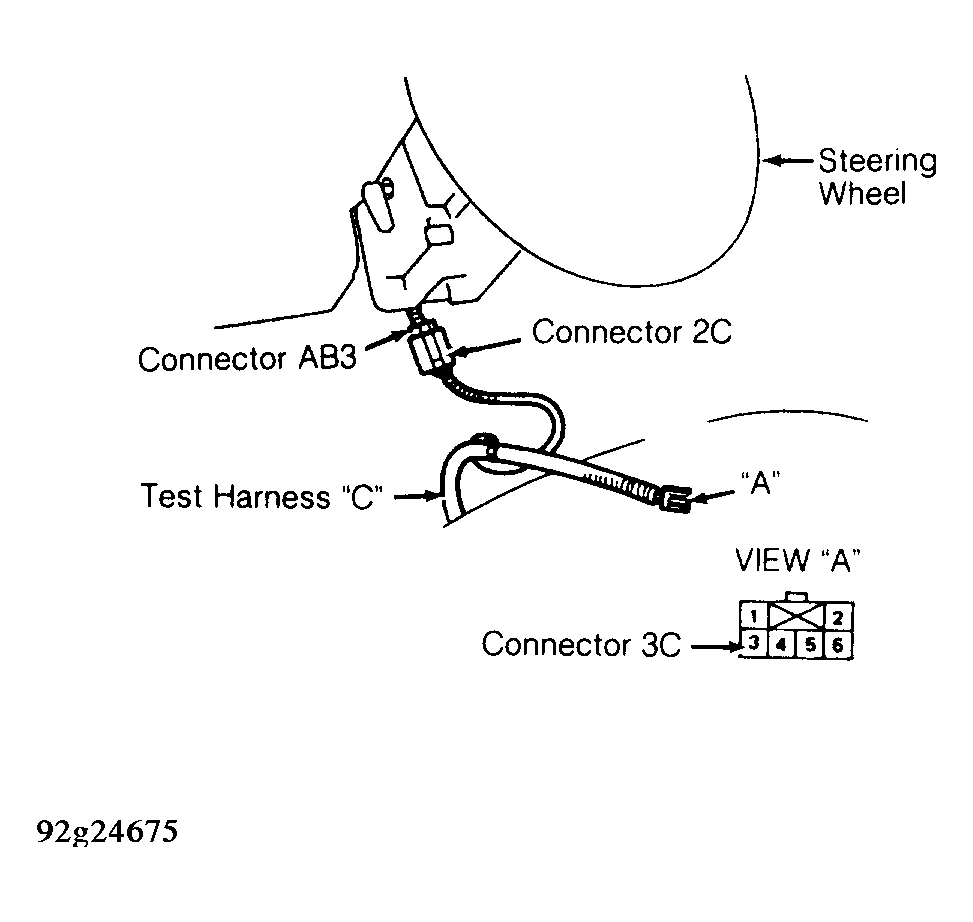

Fig 1: Preparing For Clockspring Test
G92G24675Courtesy of SUBARU OF AMERICA, INC.
