Wiring Diagrams

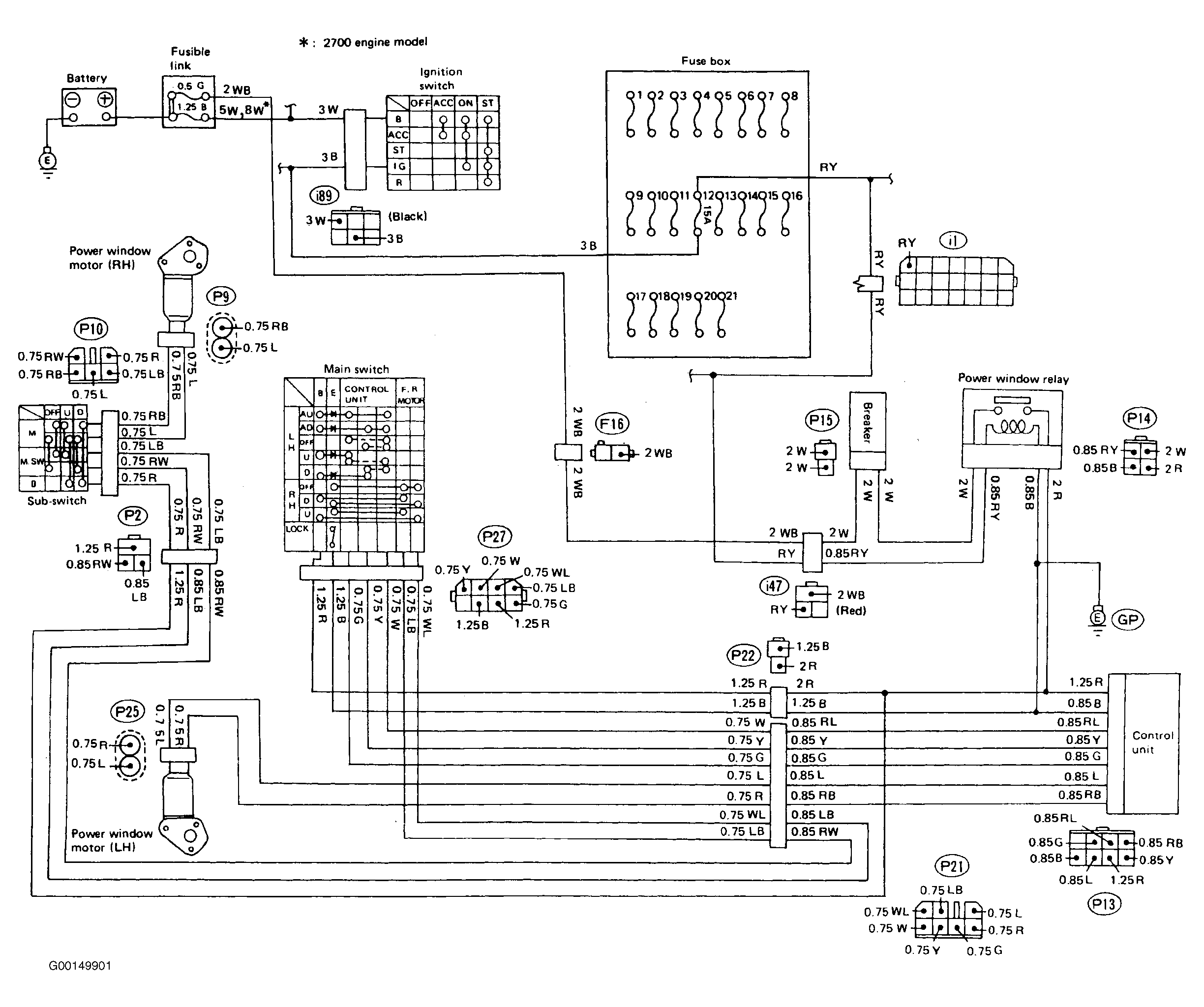

Fig 1: Power Window Wiring Diagram & Switch Testing

G00149901

Courtesy of SUBARU OF AMERICA, INC.
