Window Regulator: Removal

  1. Remove trim panel. See Fig 1 .
  2. Remove door pull handle.
  3. Remove sealing cover.
  4. Remove rearview mirror from door.
  5. Remove outer weatherstrip
  6. Remove inner stabilizer
  7. Remove front and rear upper stoppers from door.
  8. Remove door glass.
  9. Remove wire clip (manual type only).
  10. Remove regulator base plate and regulator rail.
  11. Take out regulator ASSY through service hole in lower door panel.

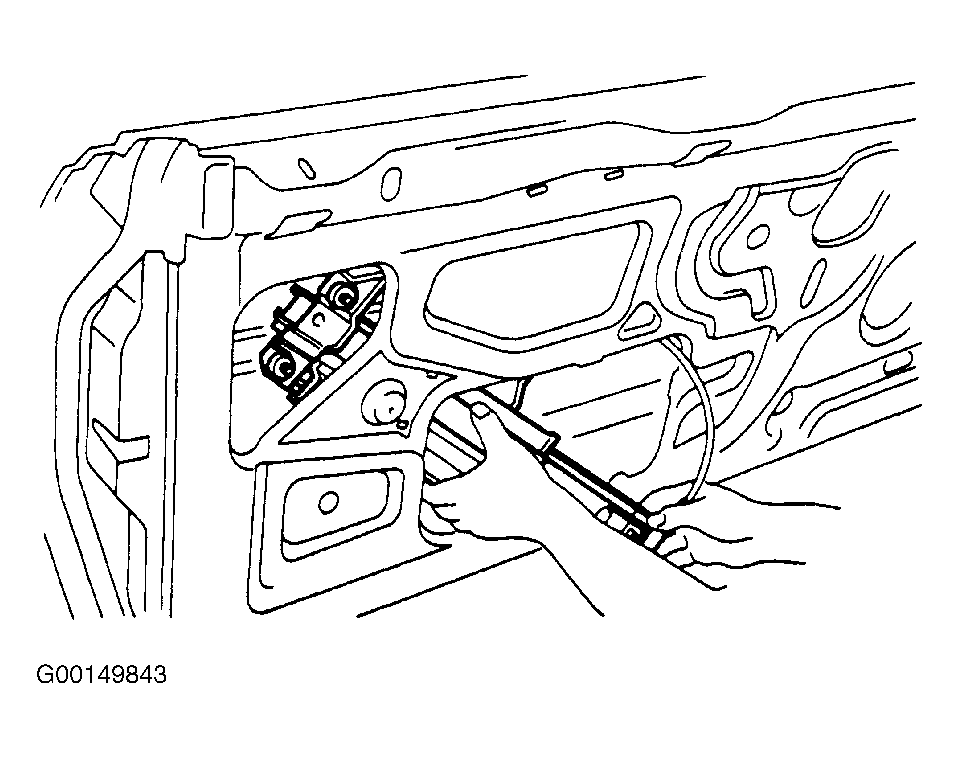

Fig 1: Power Window Regulator Removal & Installation
G00149843Courtesy of SUBARU OF AMERICA, INC.
