Steering System - Power: Description

NOTE: SVX information is not available from manufacturer.

NOTE: For information on XT6 electronic power steering, see STEERING SYSTEM - ELECTRONIC POWER article in the STEERING section.

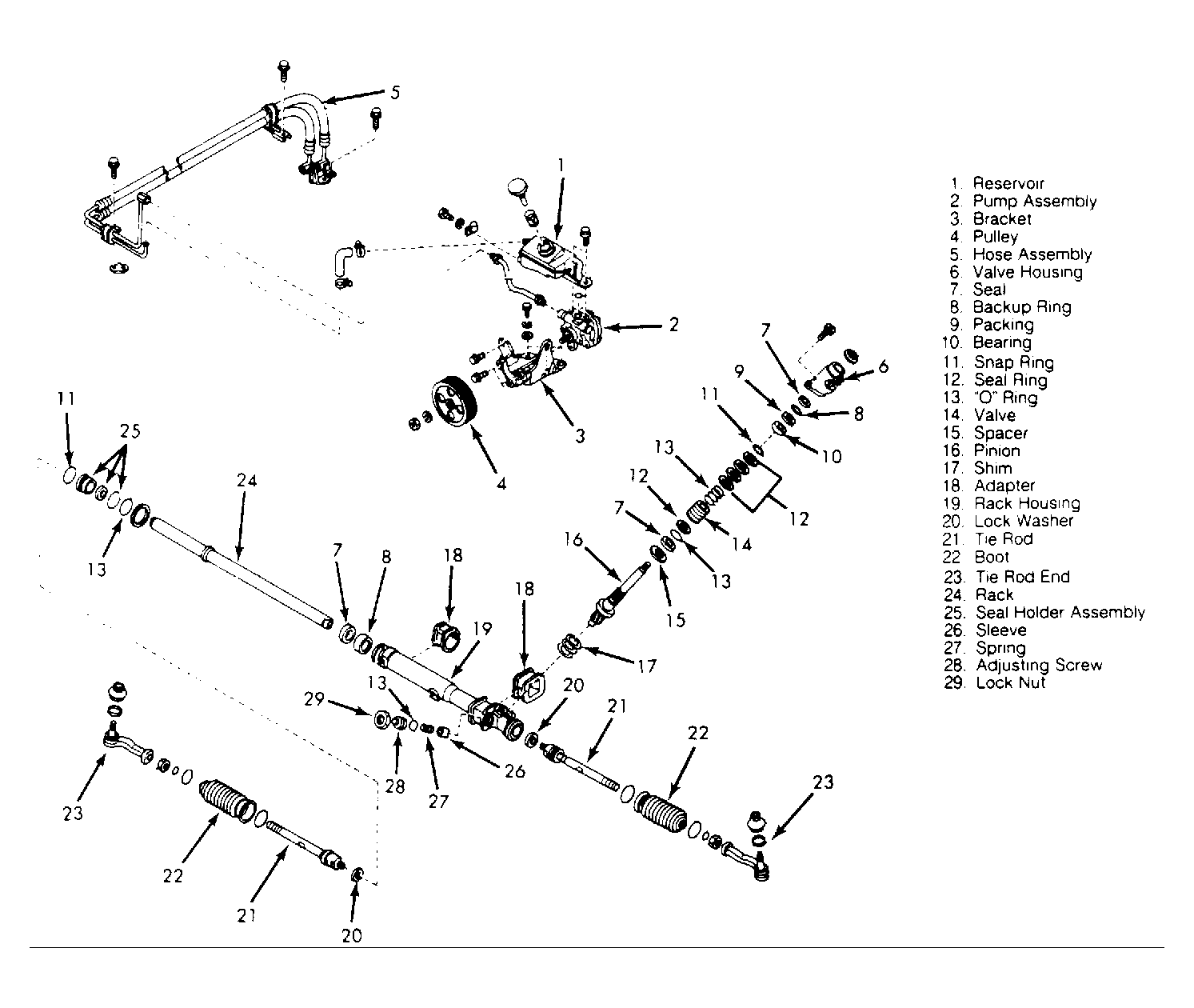

System consists of a fluid reservoir, power steering pump, pressure and return fluid lines, control valve and rack and pinion assembly. See Figure .
