Home >> Subaru >> 1991 >> XT Standard >> Repair and Diagnosis >> Steering >> Power Steering >> Steering System - Electronic Power >> Lubrication >> Fluid Level Check

Fluid Level Check

With engine cold, ensure fluid level is between arrow marks on COLD side of dipstick.

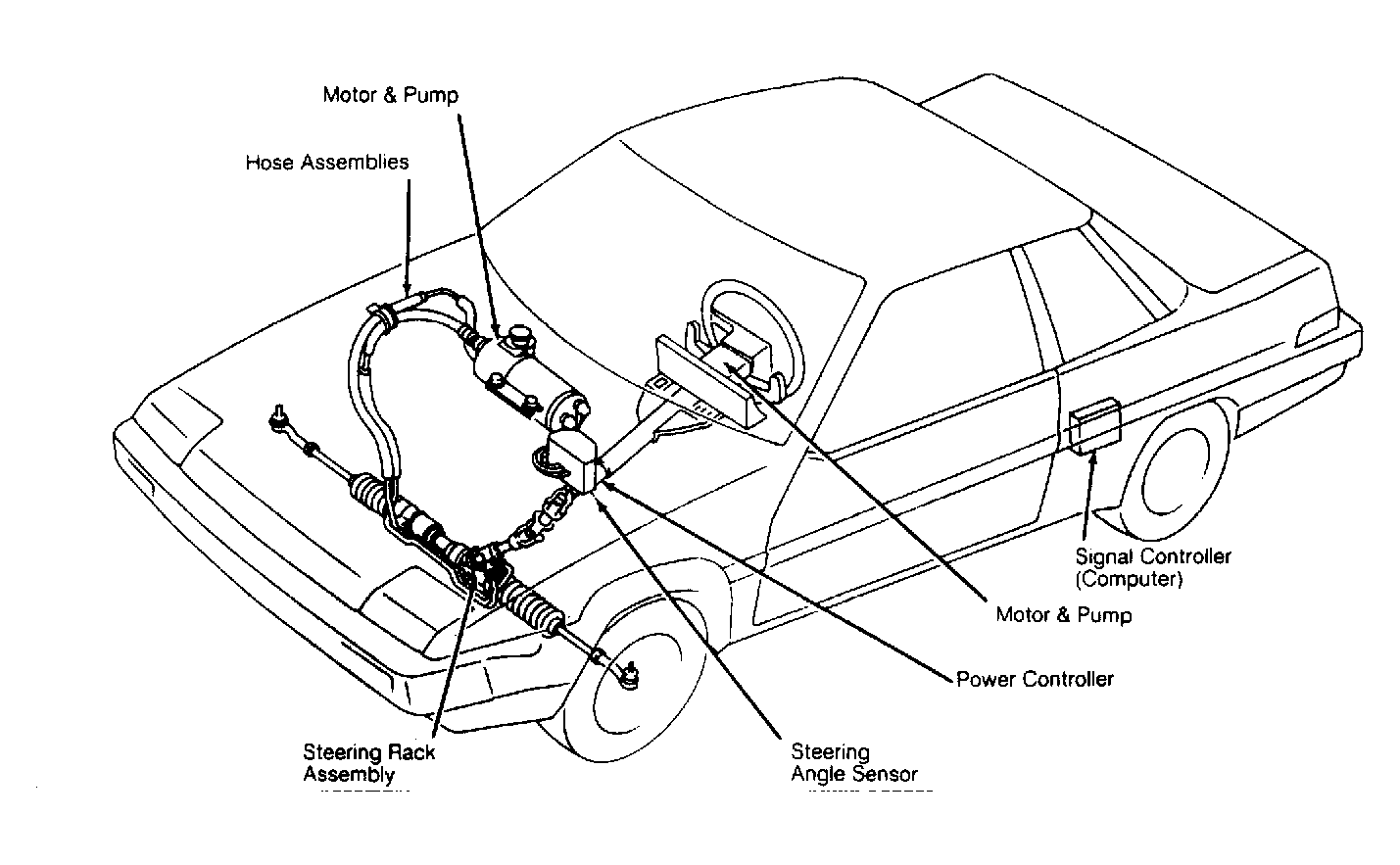

Fig 1: Locating Electronic Power Steering System Components

G101411

Courtesy of SUBARU OF AMERICA, INC.
