Wiring Diagrams

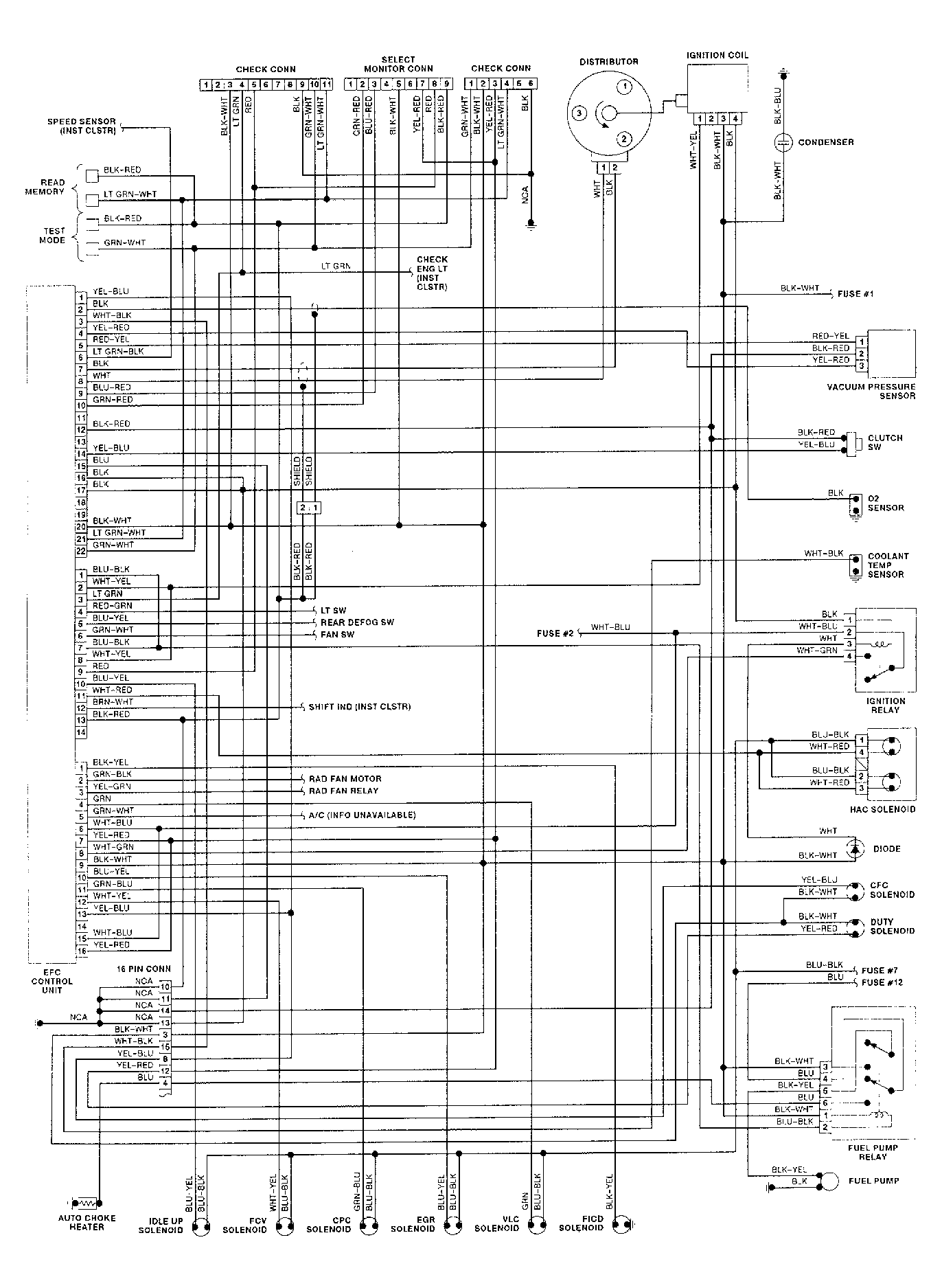

Fig 1: Wiring Diagram (Justy 1.2L Carbureted)

G91A17996

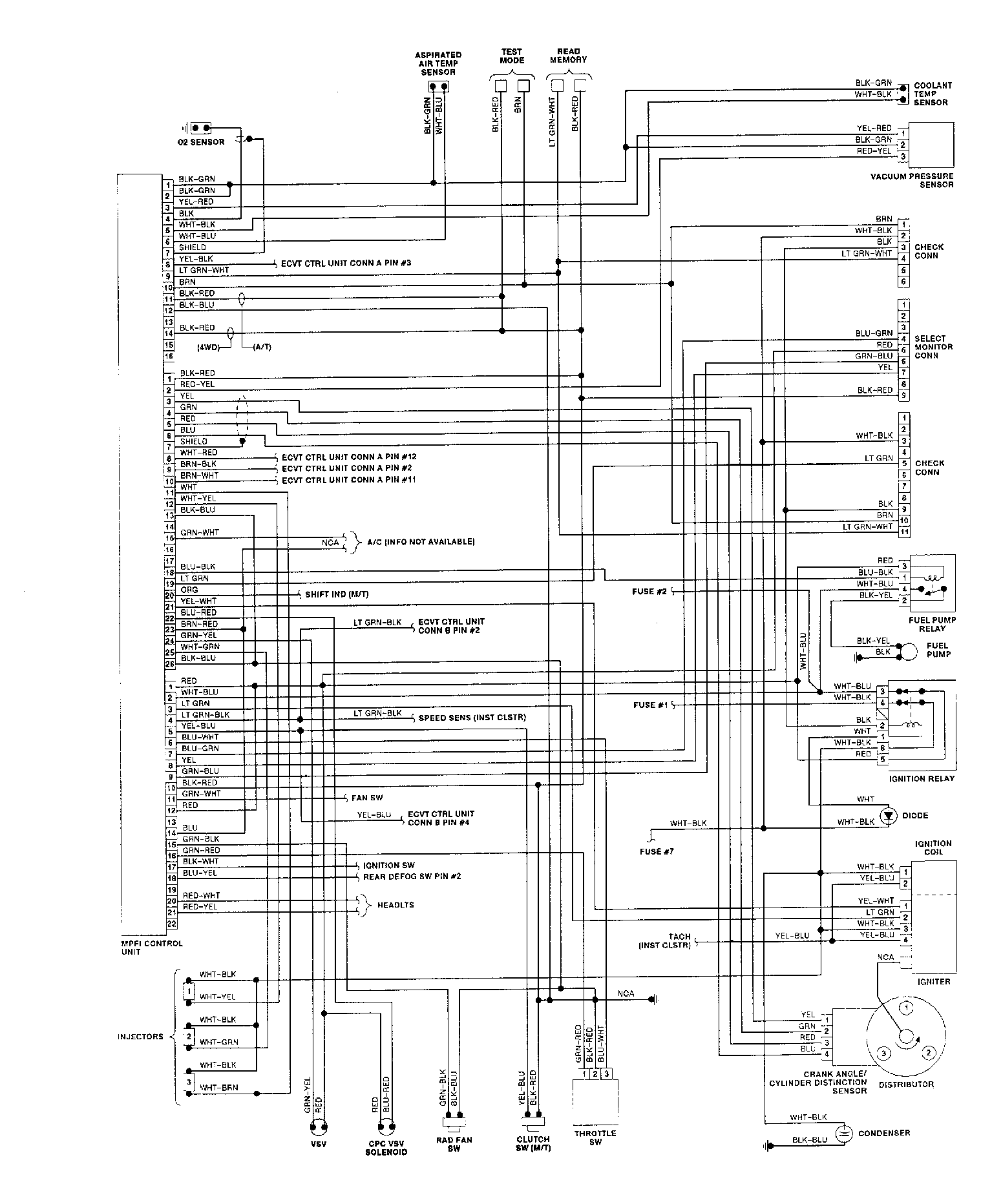

Fig 2: Wiring Diagram (Justy 1.2L PFI)

G91B17997

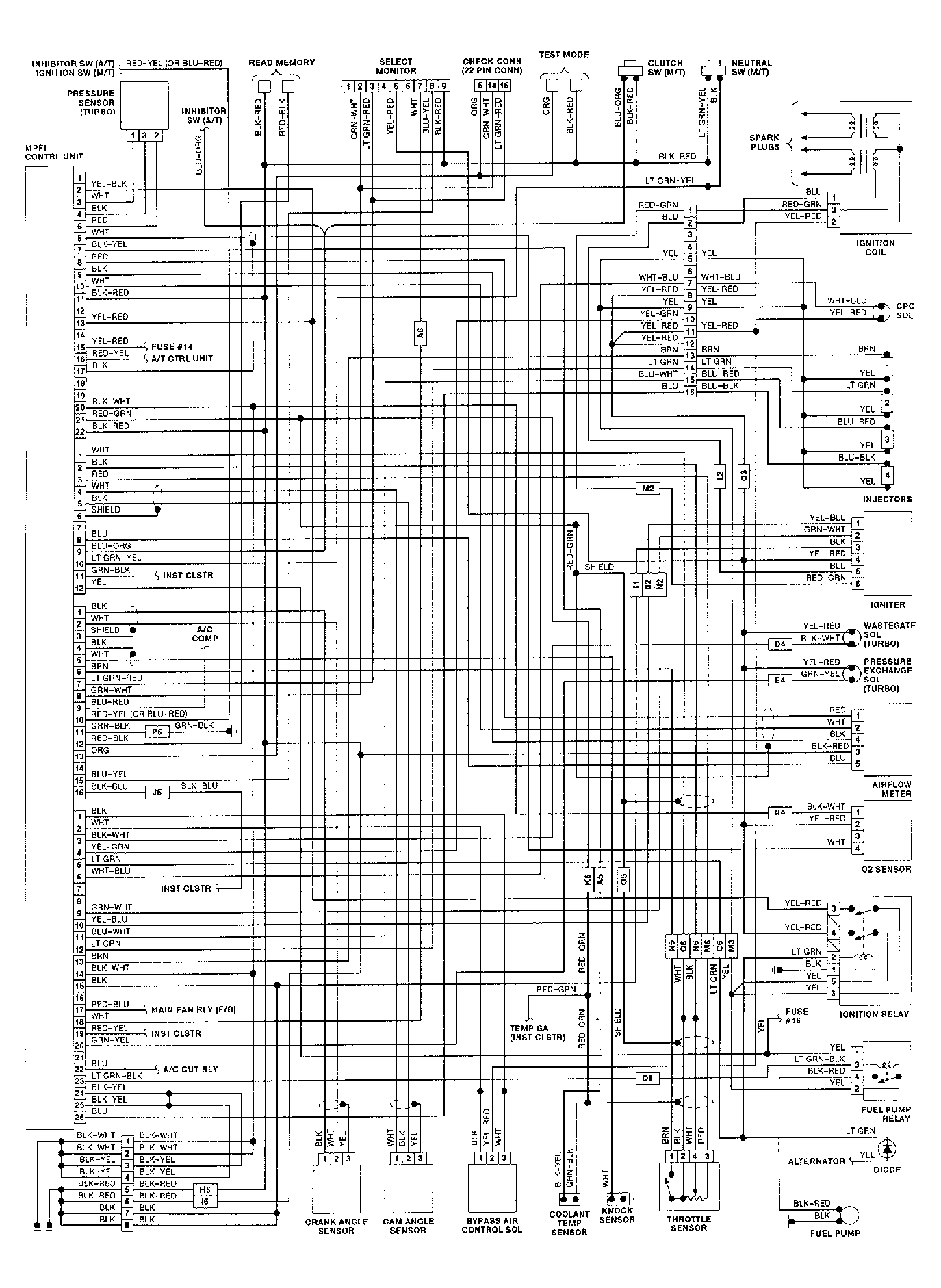

Fig 3: Wiring Diagram (Legacy 2.2L PFI & Turbo)

G91C17998

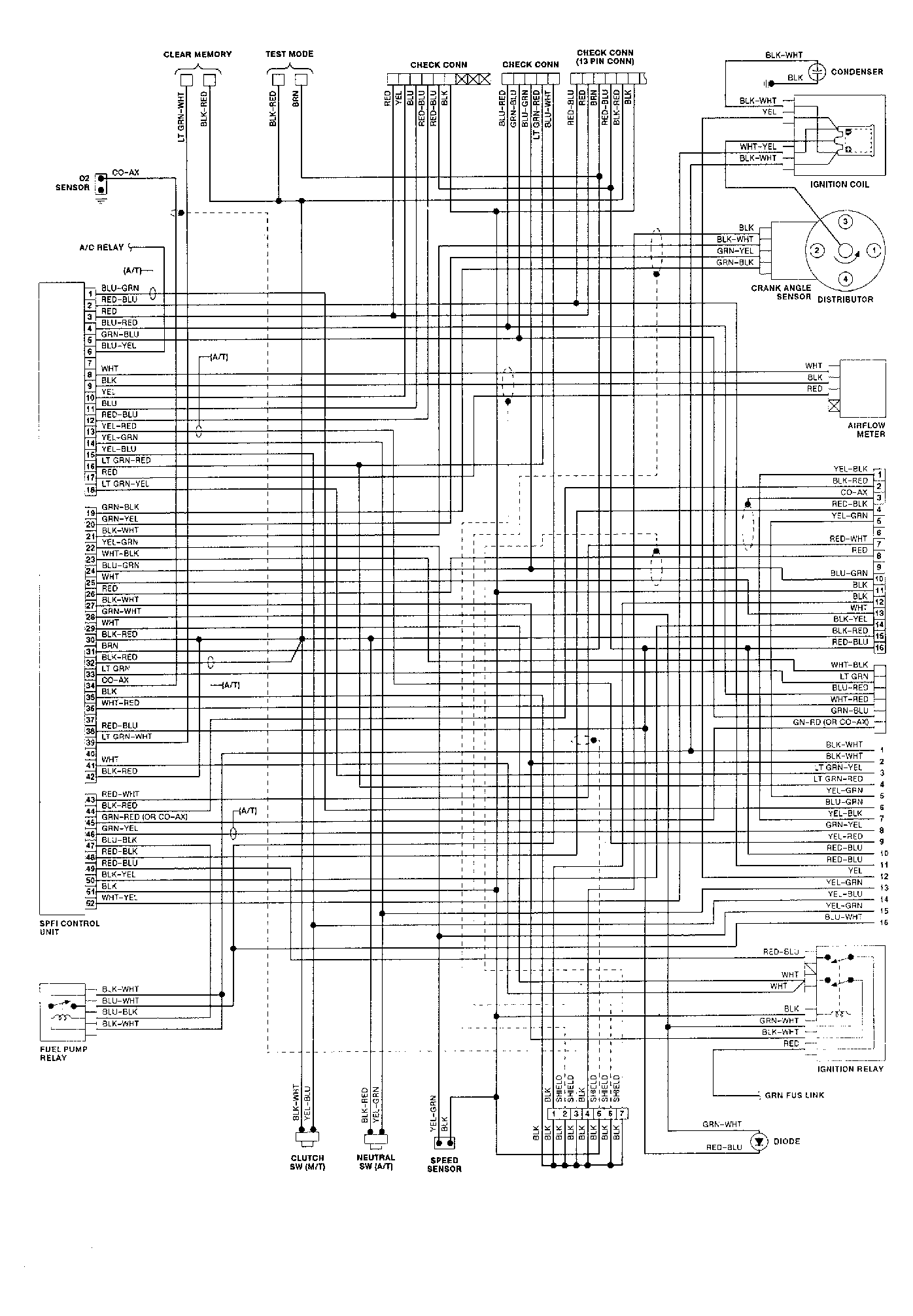

Fig 4: Wiring Diagram (Loyale 1.8L TBI - 1 of 2)

G91D17999

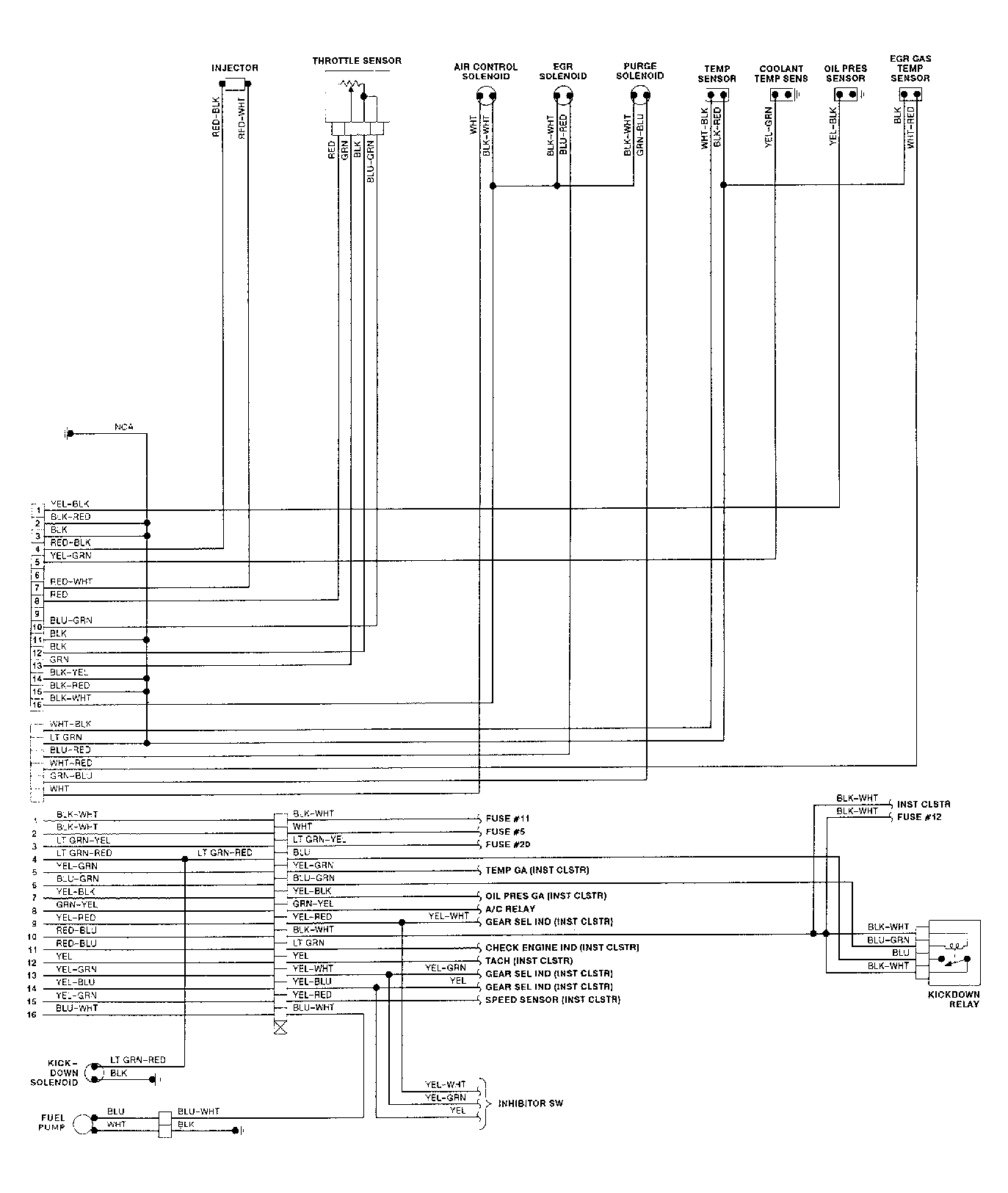

Fig 5: Wiring Diagram (Loyale 1.8L TBI - 2 of 2)

G91I18000

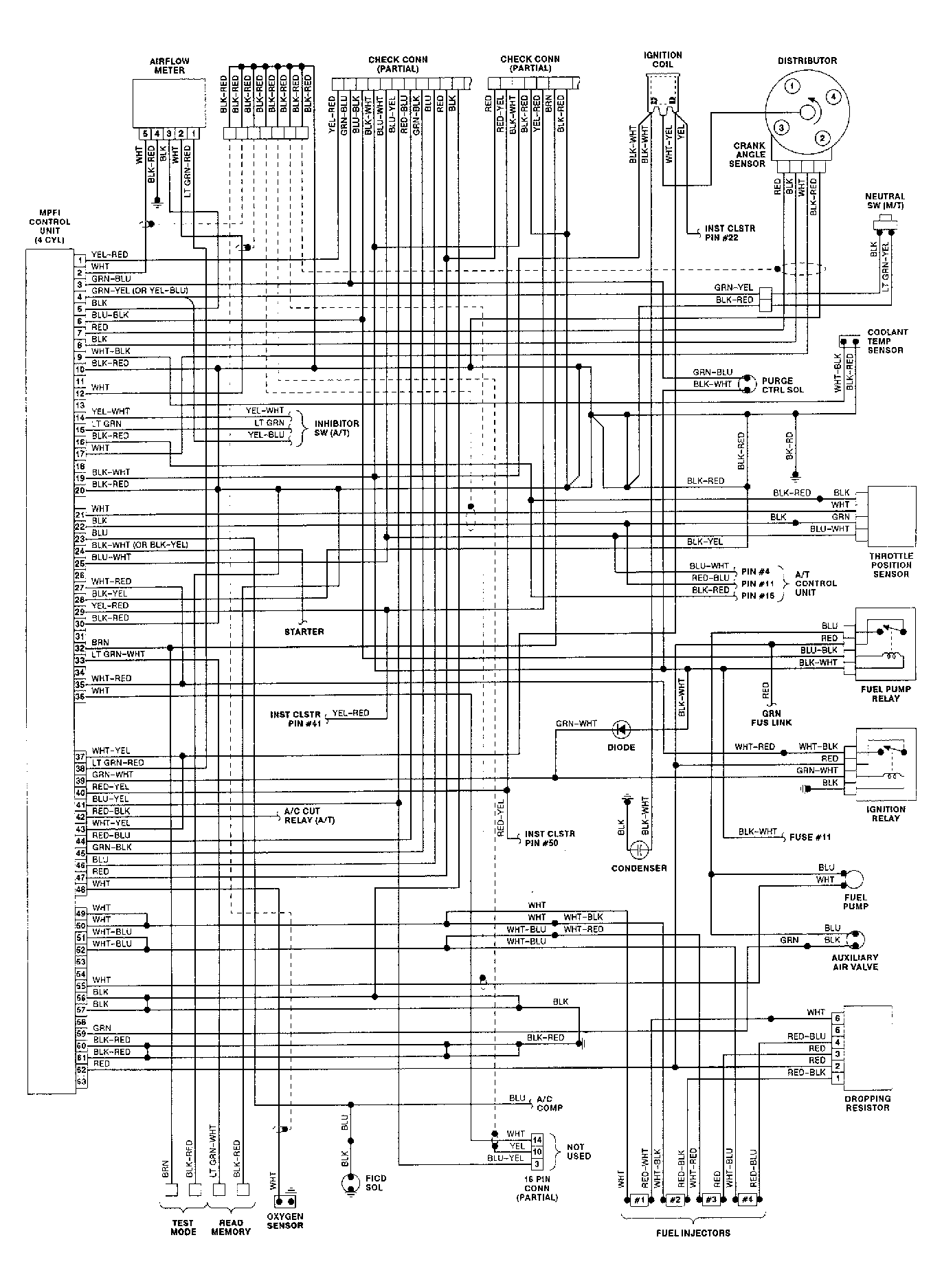

Fig 6: Wiring Diagram (XT 1.8L)

G91J18001

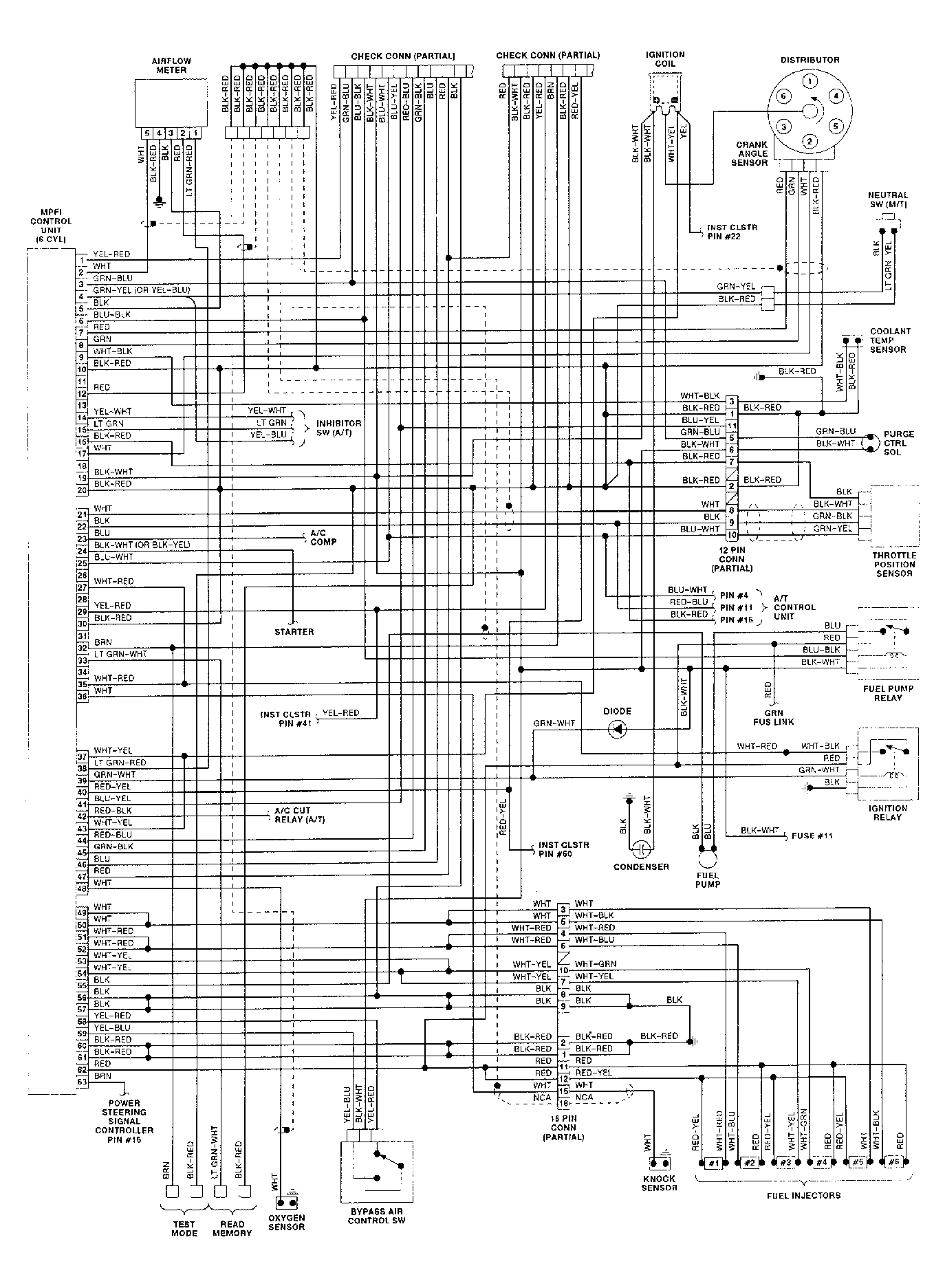

Fig 7: Wiring Diagram (XT6 2.7L)

G91A18002
