Code 35: Canister Purge Control (CPC) Solenoid

Fig 1: Wiring Schematic - Code 35, Canister Purge Control (CPC) Solenoid
G118398

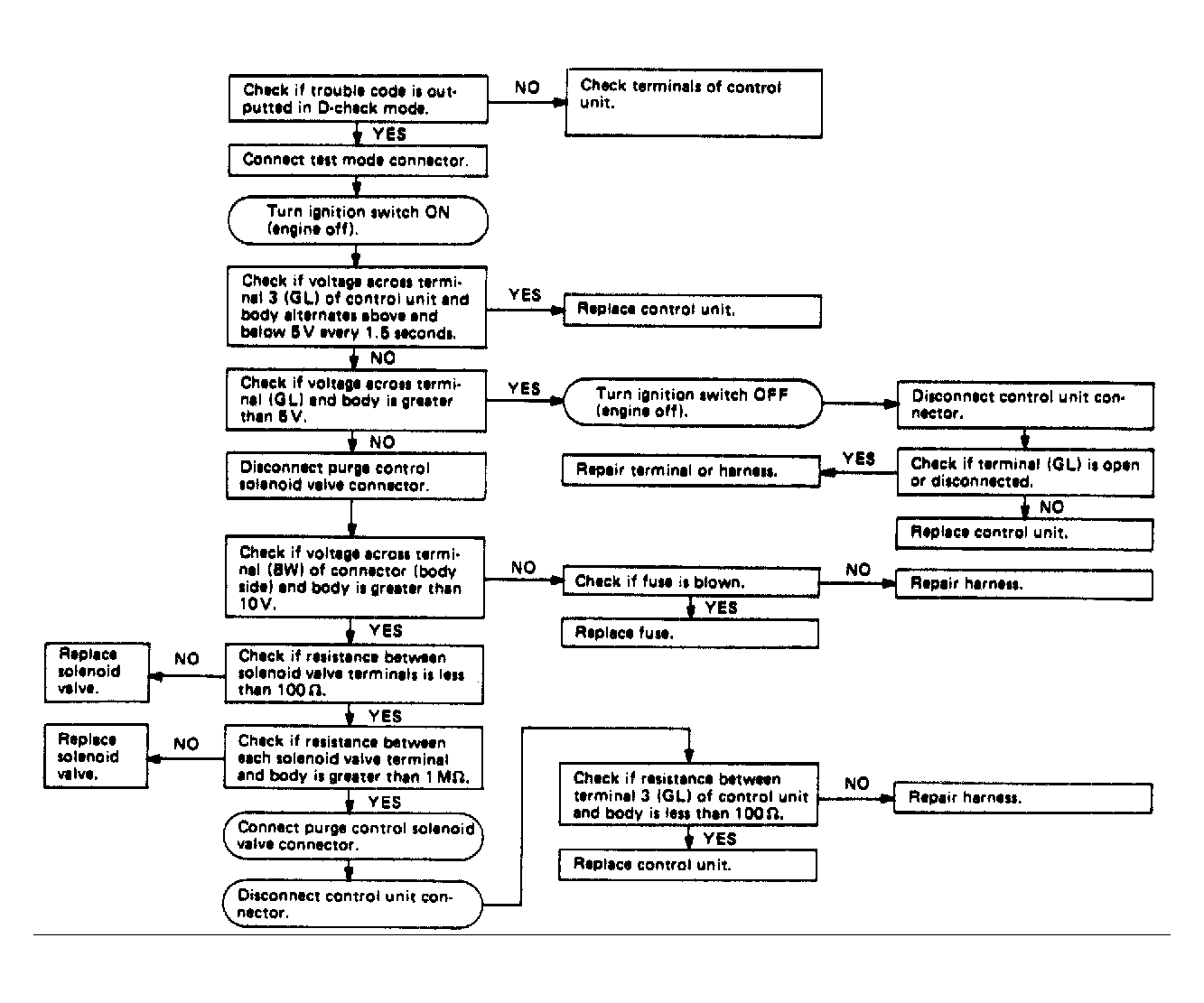

Fig 2: Flow Chart - Code 35, Canister Purge Control (CPC) Solenoid
G121918
