Fast Idle Bench Adjustment

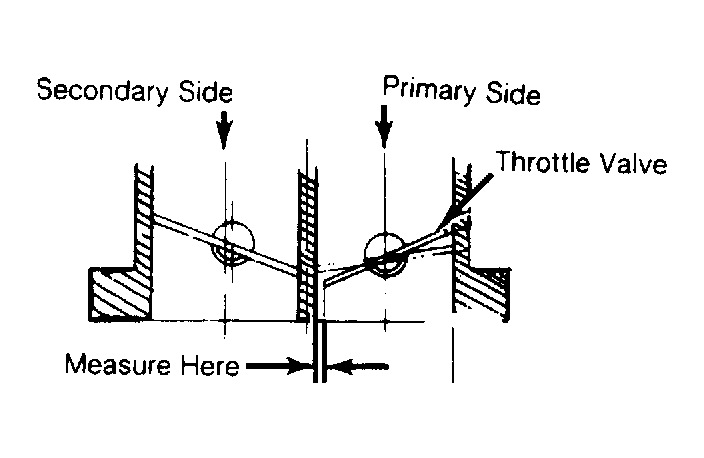

Close choke valve. Position fast idle lever on first (high) step of fast idle cam. Measure clearance between primary throttle valve and wall of throttle chamber. See Fig 1 . See CARBURETOR ADJUSTMENT SPECIFICATIONS table. If value is not as specified in table, adjust using fast idle speed adjusting screw.
