Code 21: Coolant (Water) Temperature Sensor

Fig 1: Wiring Schematic - Code 21, Coolant (Water) Temperature Sensor

G118389

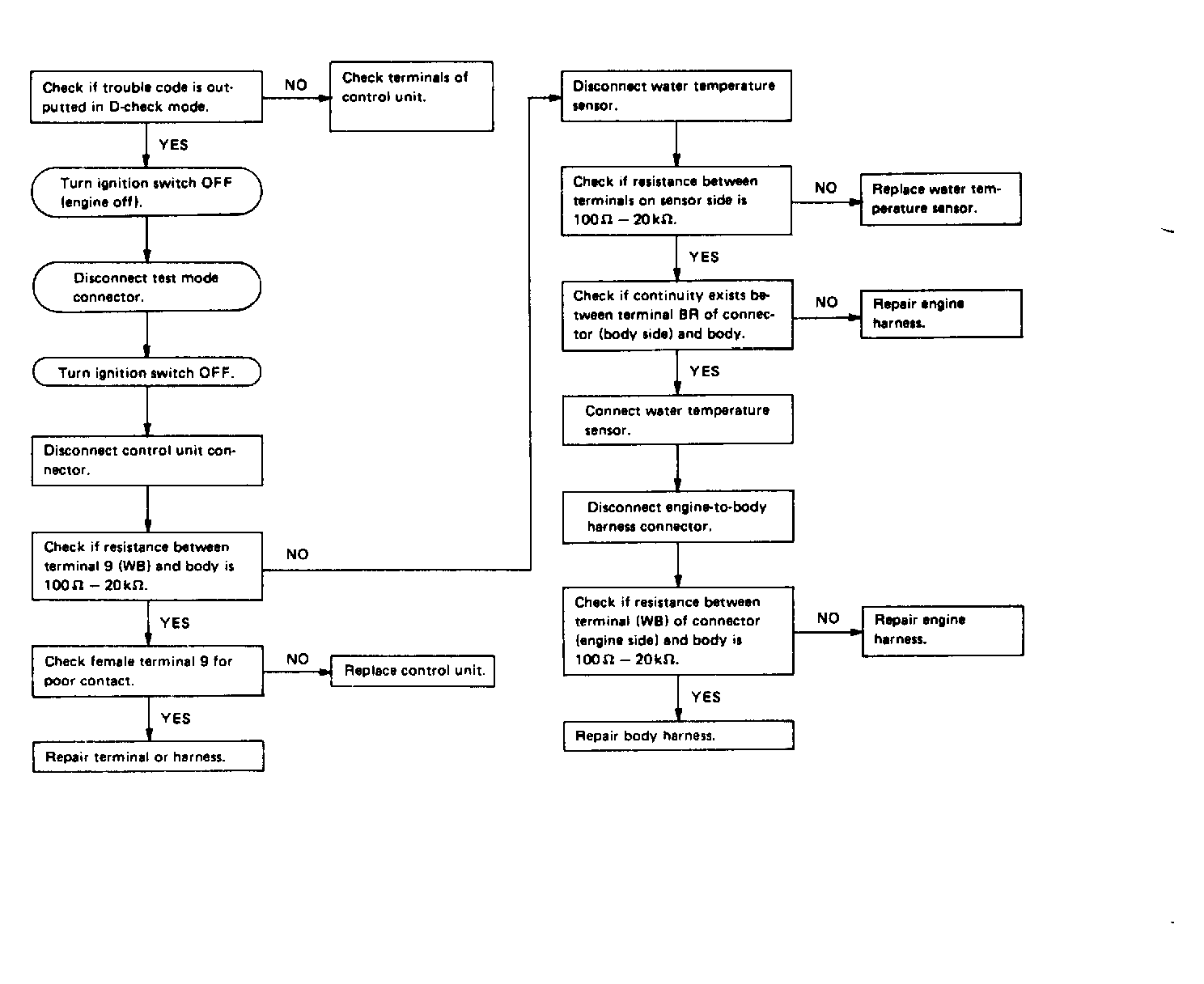

Fig 2: Flow Chart - Code 21, Coolant (Water) Temperature Sensor

G121909
