Anti-Lock Brake System: Wiring Diagram

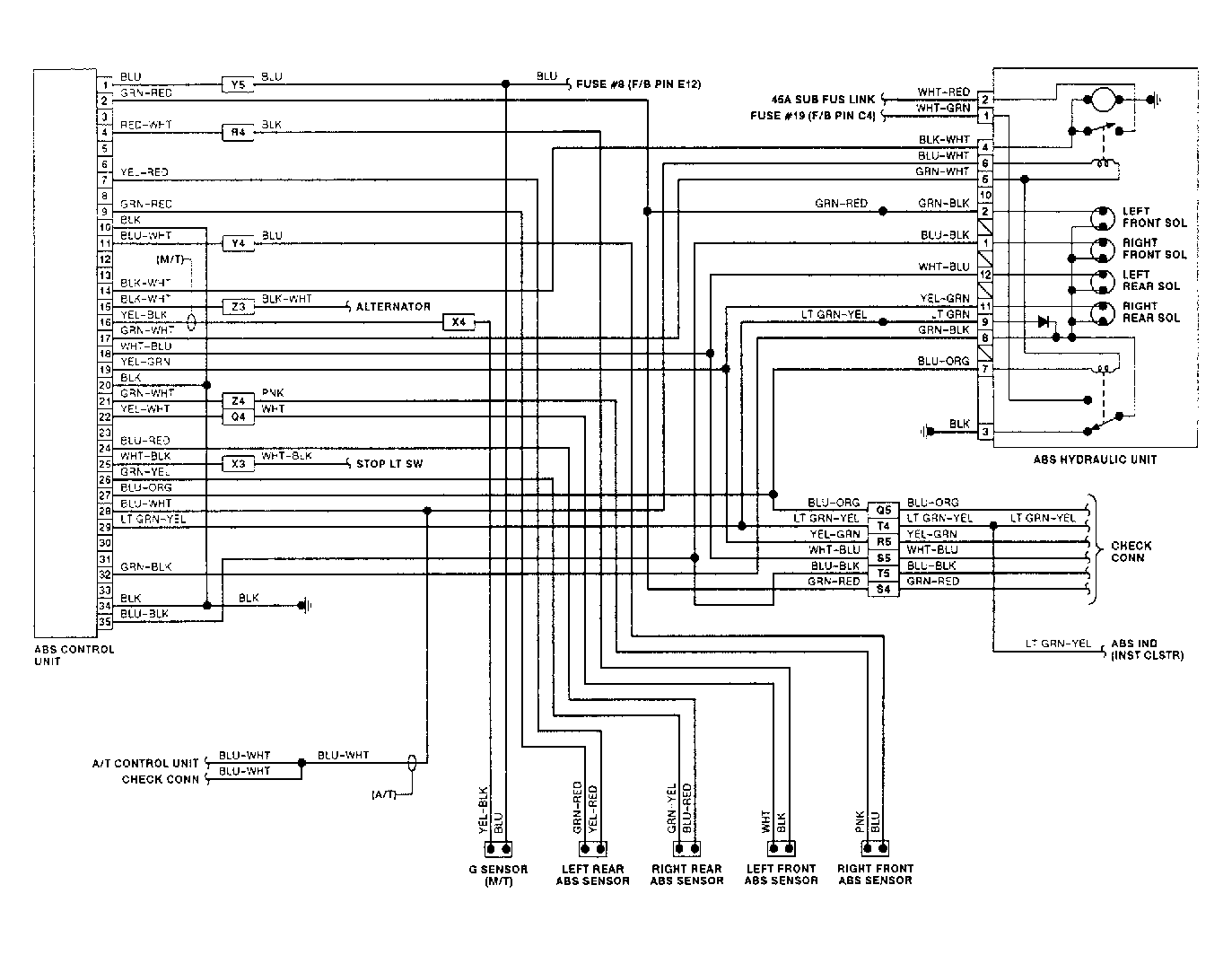

Fig 1: Legacy ABS Wiring Diagram

G92A01721

Courtesy of SUBARU OF AMERICA, INC.
