Engine Controls - Tests W/Codes - CARBURETED
>>
Diagnostic Code Charts
>>
Code 15: Coasting Fuel Cut (CFC) System
Code 15: Coasting Fuel Cut (CFC) System
Fig 1: Wiring Schematic - Code 15, Coasting Fuel Cut (CFC) System

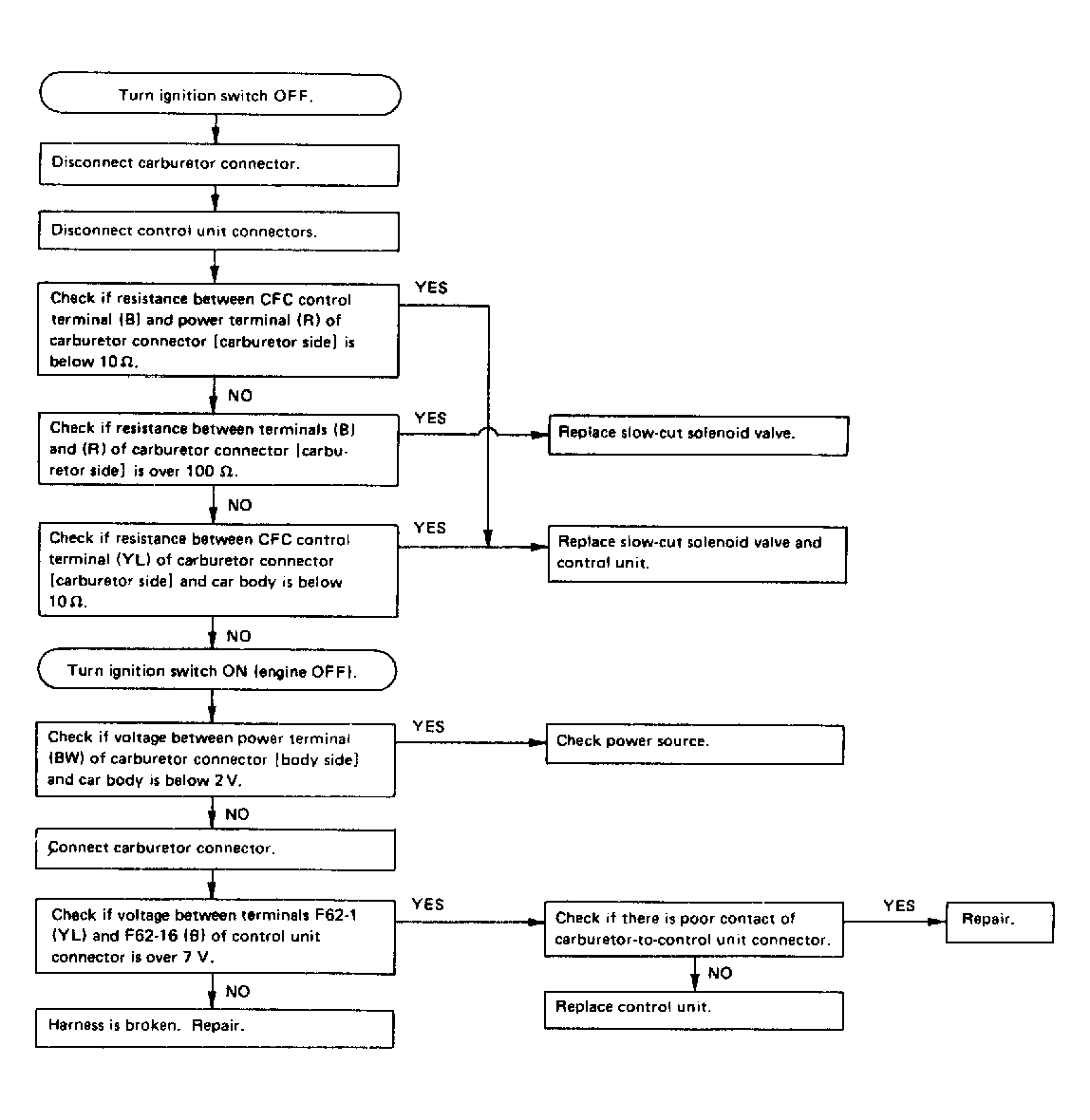

Fig 2: Flow Chart - Code 15, Coasting Fuel Cut (CFC) System
