Engine Controls - Tests W/Codes - CARBURETED
>>
Diagnostic Code Charts
>>
Code 23: Pressure Sensor
Code 23: Pressure Sensor

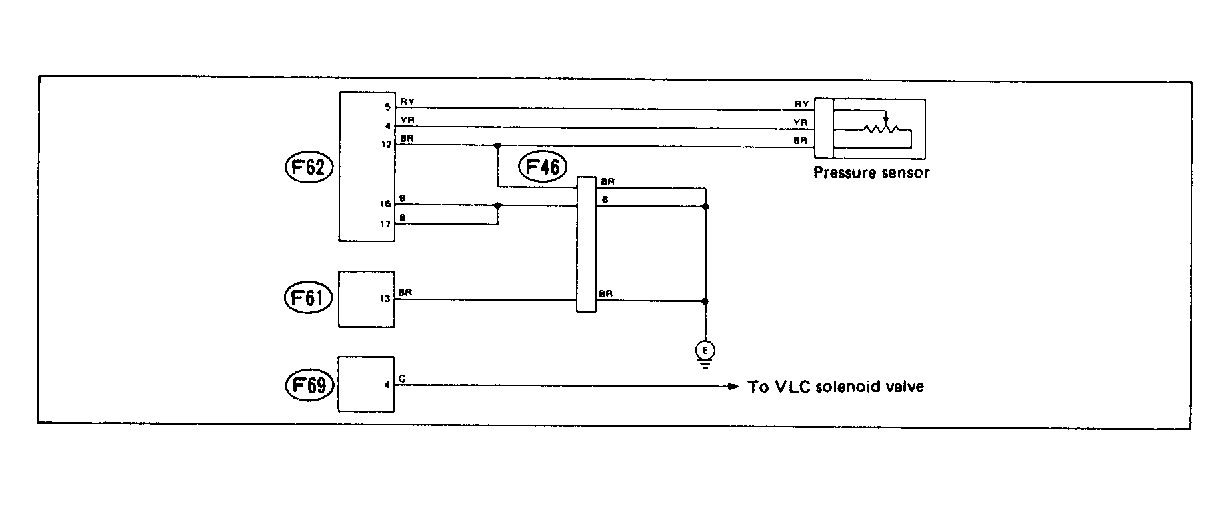

Fig 1: Wiring Schematic - Code 23: Pressure Sensor
Courtesy of SUBARU OF AMERICA, INC.

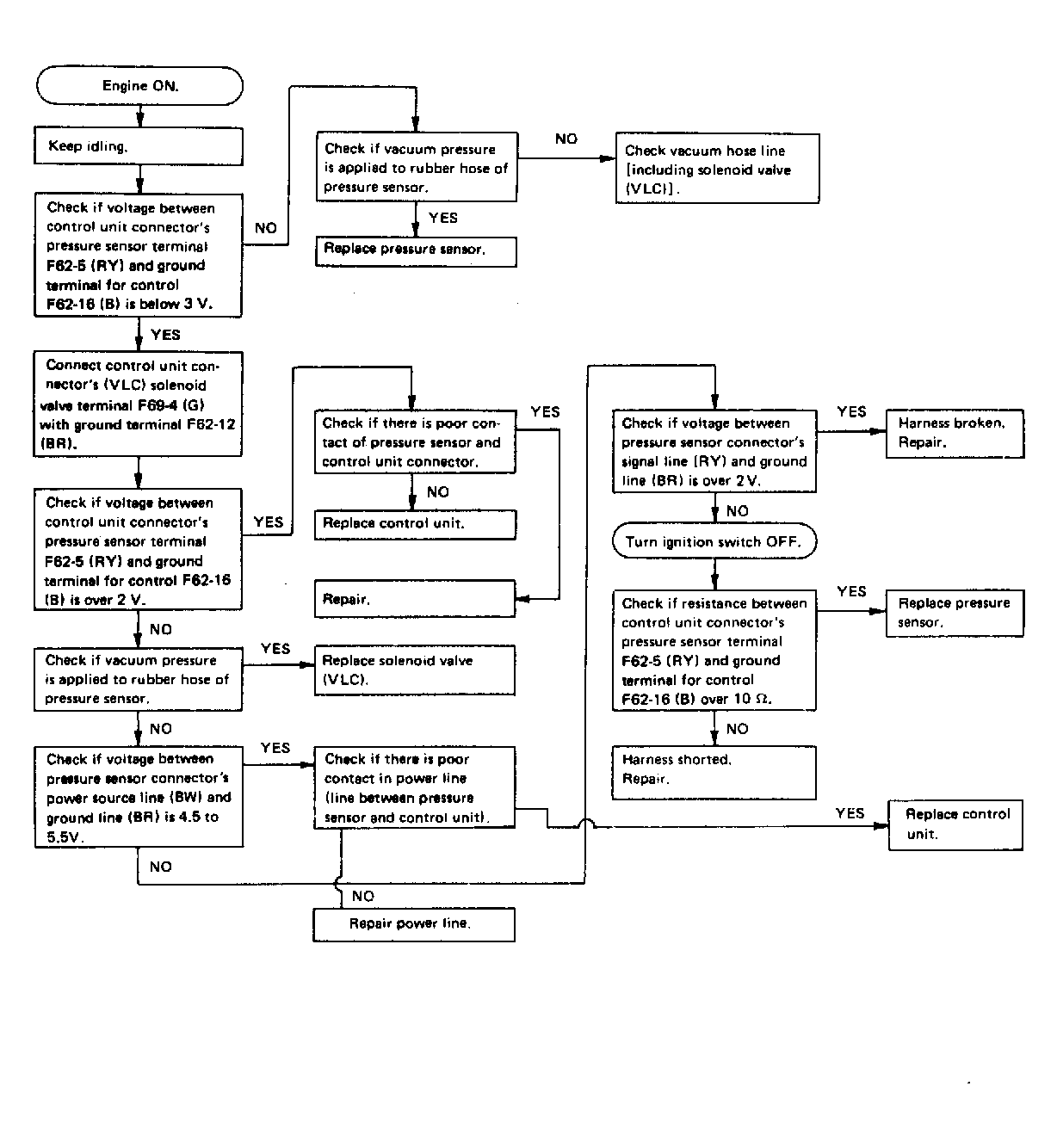

Fig 2: Flow Chart - Code 23: Pressure Sensor
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
