Read Memory Mode

Fig 1: Flow Chart (1 of 3) - Read Memory Mode

G90H21854

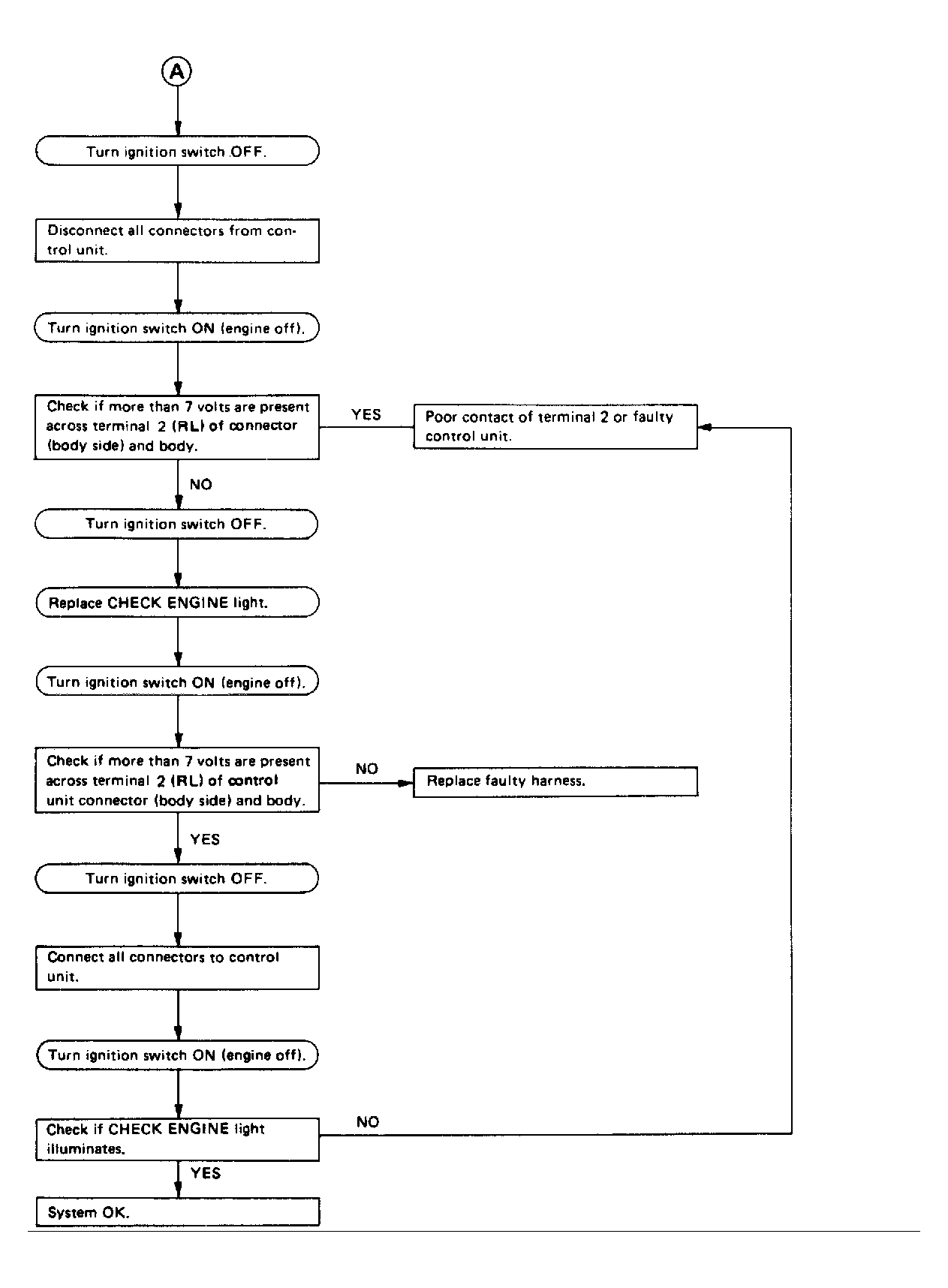

Fig 2: Flow Chart (2 of 3) - Read Memory Mode

G90I21855

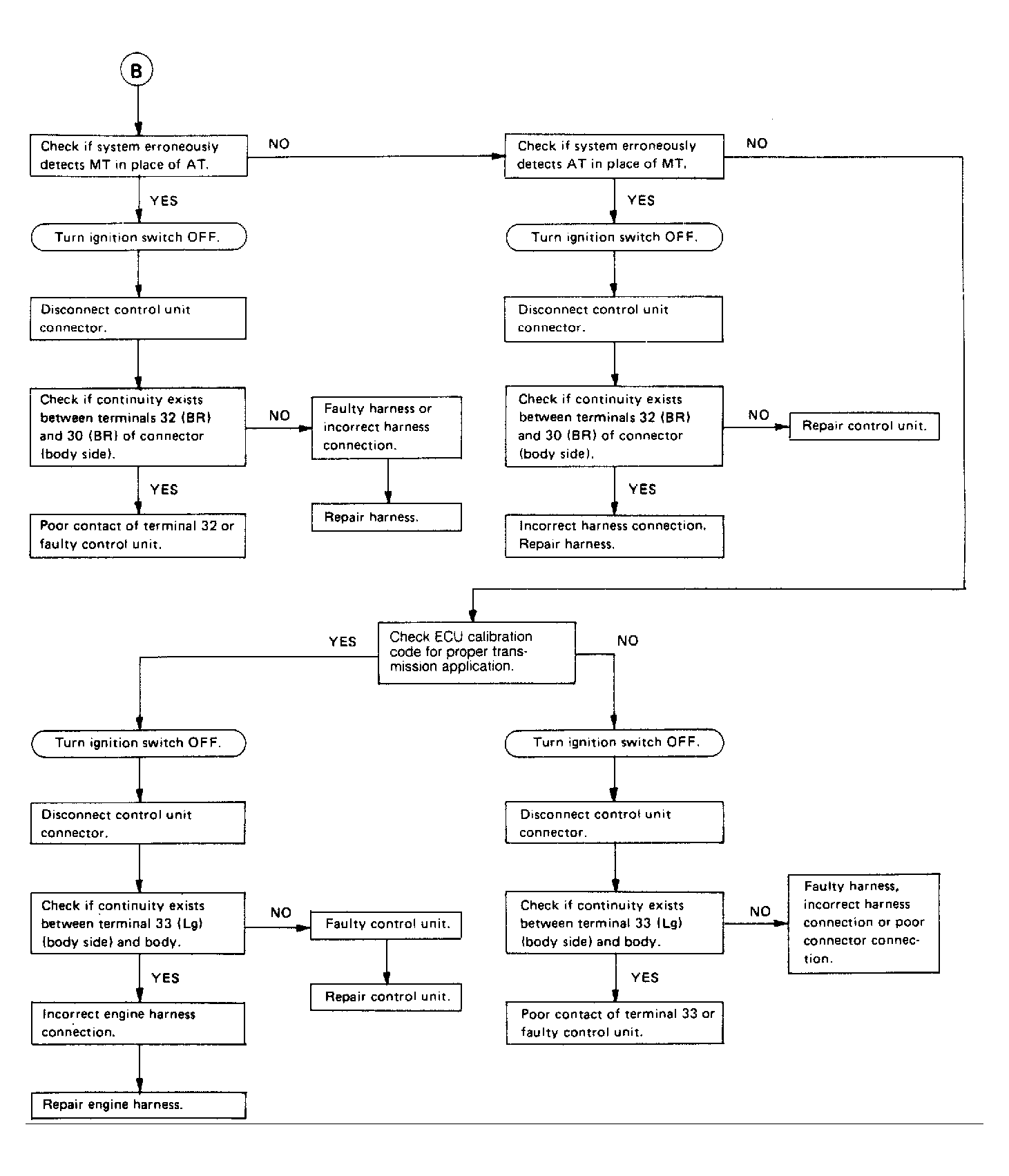

Fig 3: Flow Chart (3 of 3) - Read Memory Mode

G90J21856
