D-Check Mode

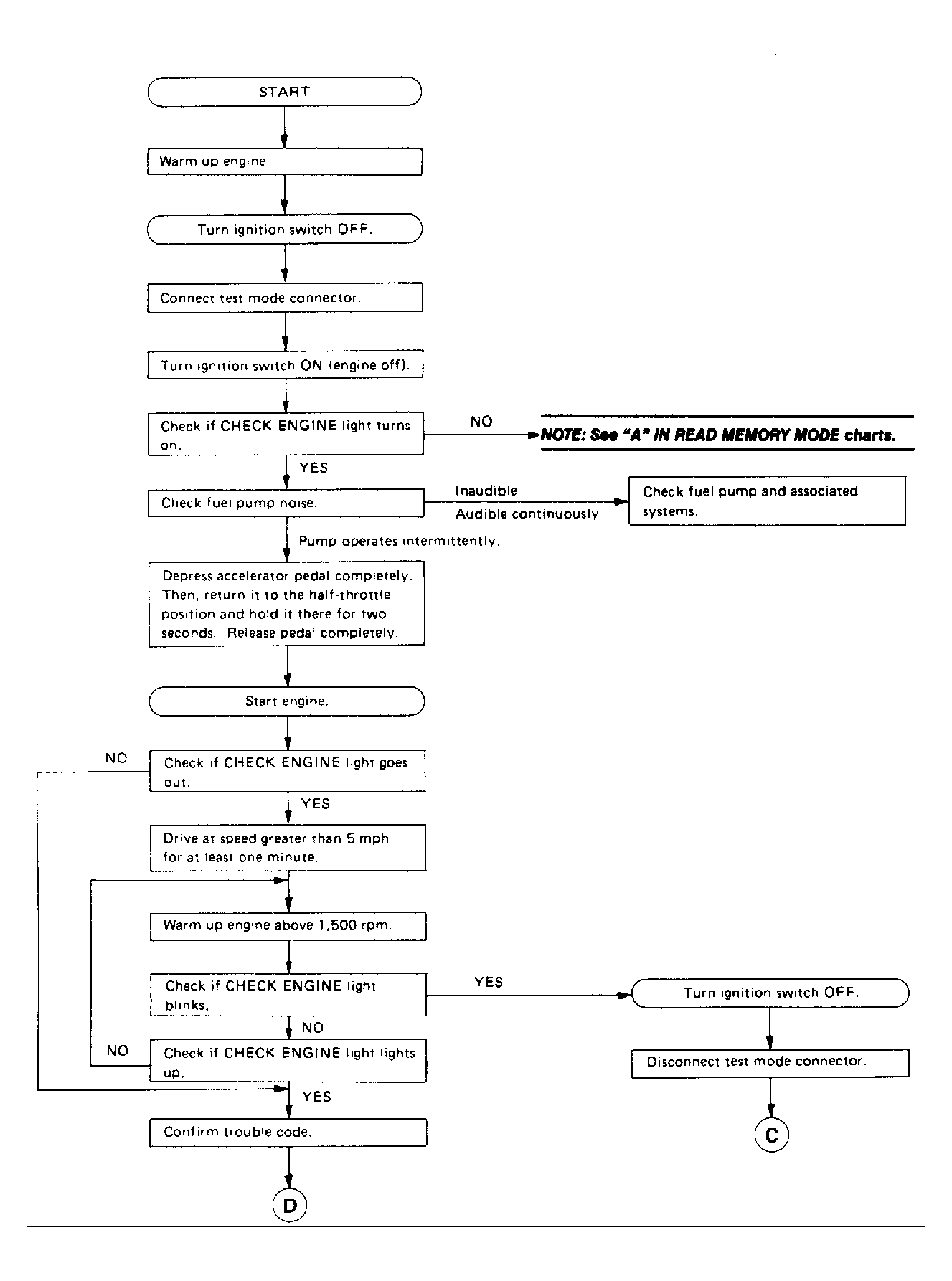

Fig 1: Flow Chart (1 of 2) - D-Check Mode

G90A21857

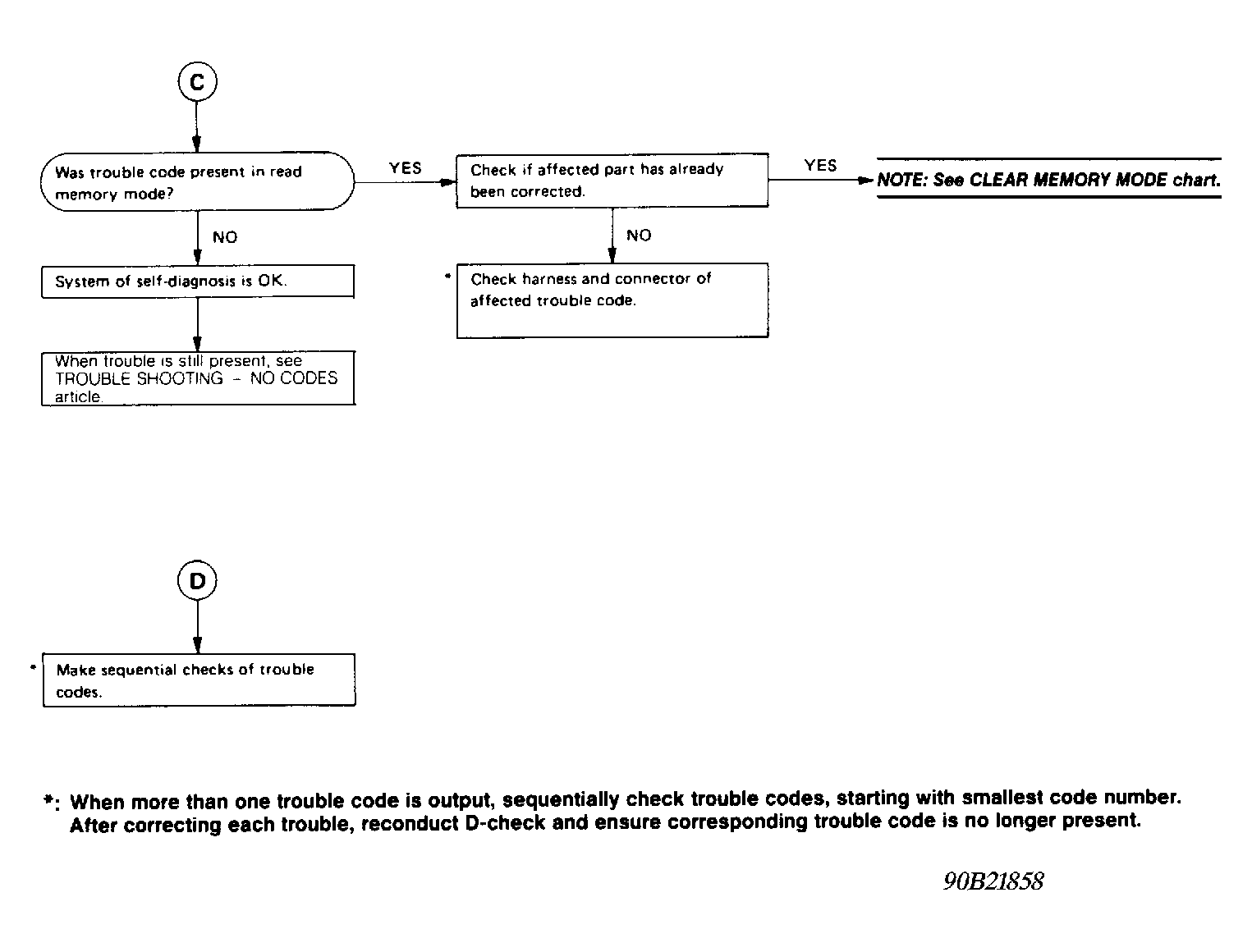

Fig 2: Flow Chart (2 of 2) - D-Check Mode

G90B21858
