Read Memory Mode

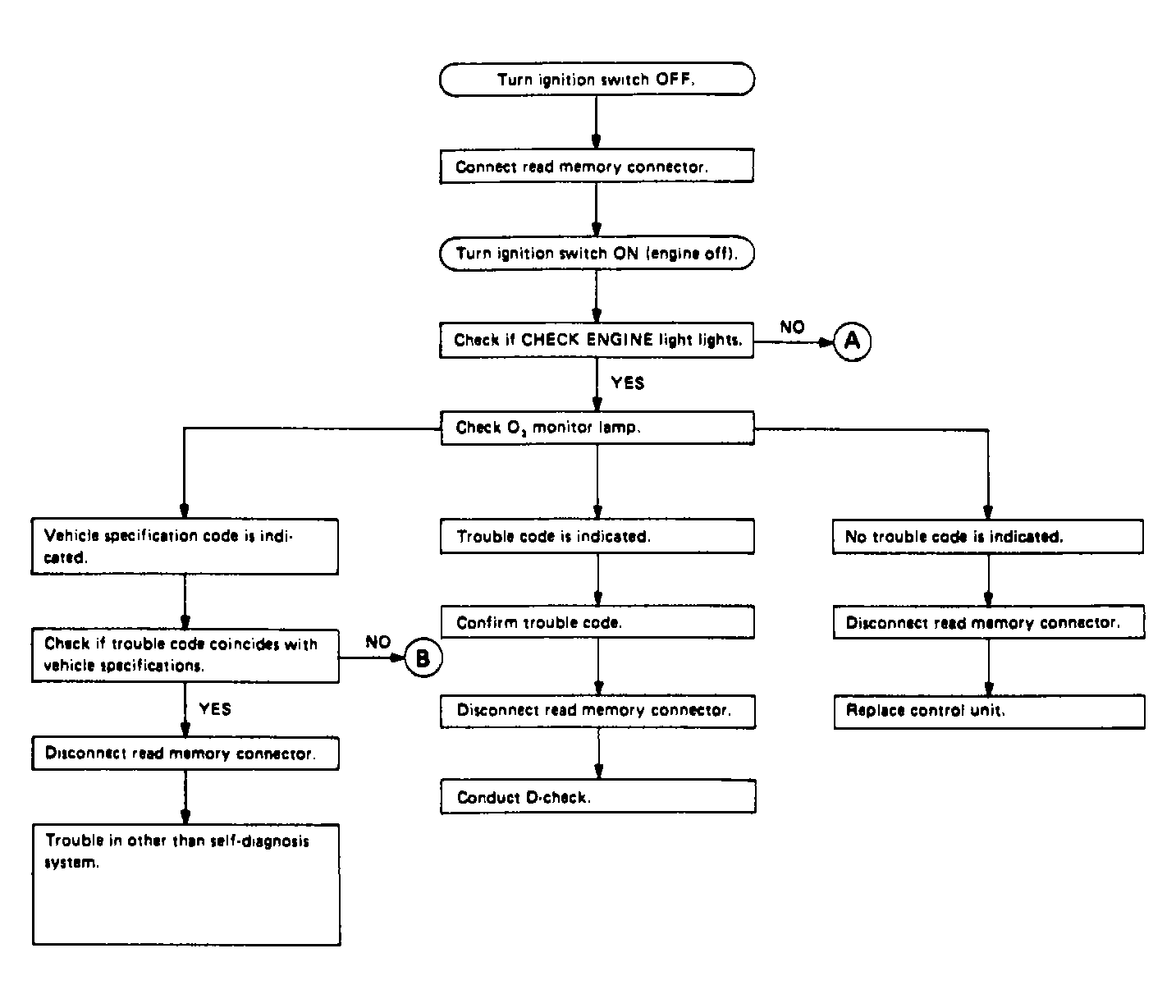

Fig 1: Flow Chart (1 of 3) - Read Memory Mode

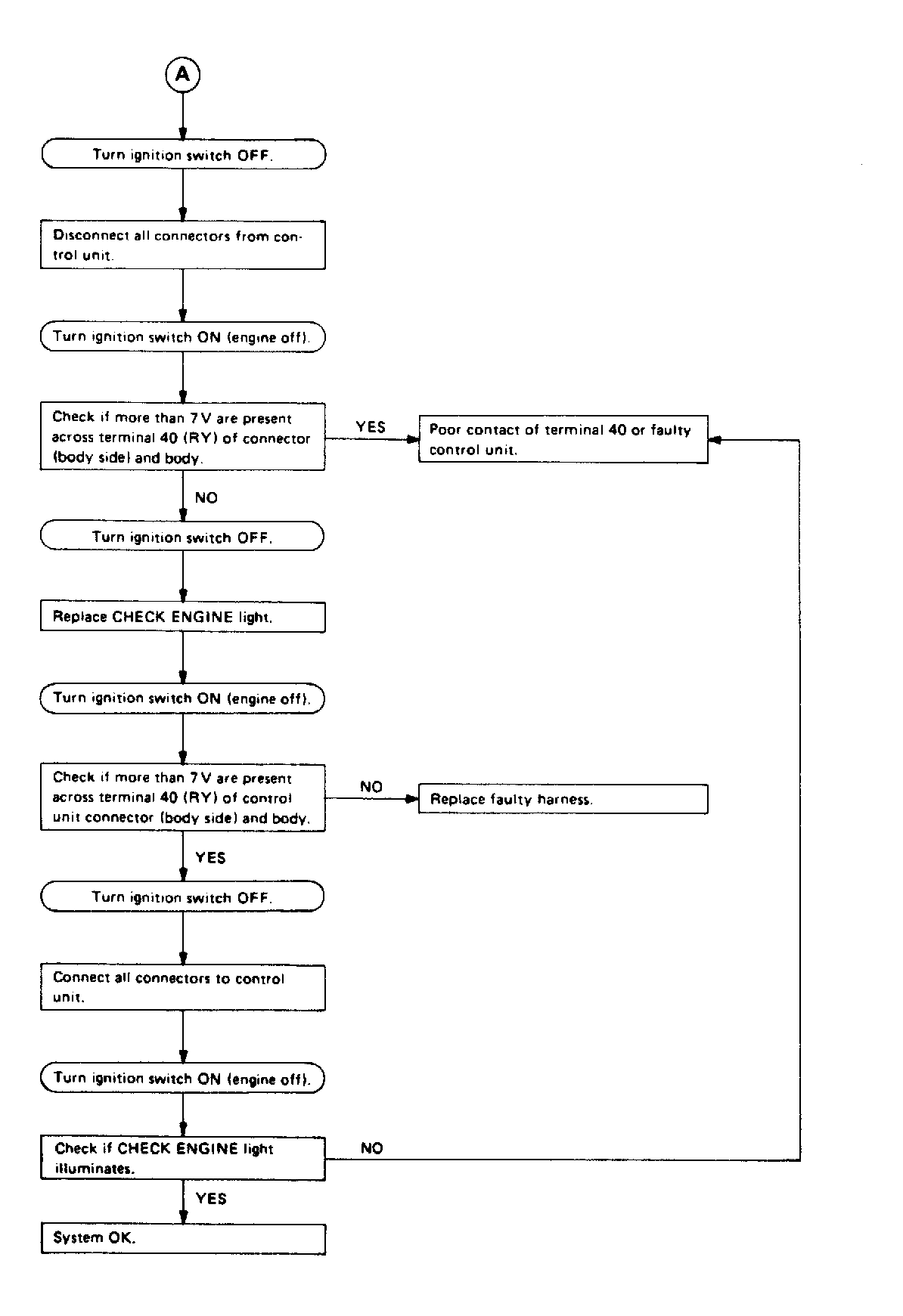

Fig 2: Flow Chart (2 of 3) - Read Memory Mode

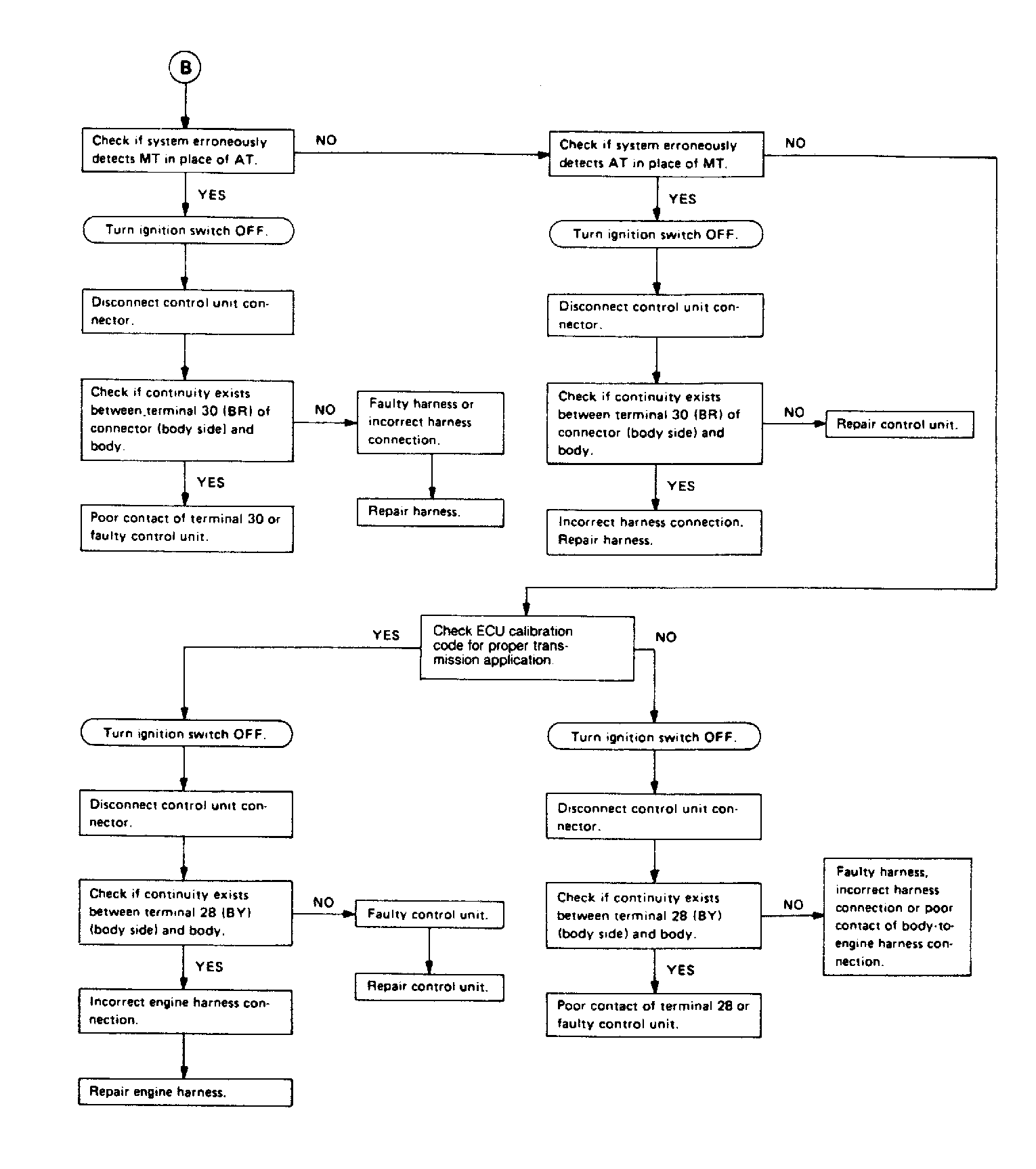

Fig 3: Flow Chart (3 of 3) - Read Memory Mode
