D-Check Mode

NOTE: When more than one trouble code is output, sequentially check trouble codes, starting with lowest code number. After correcting each trouble, reconduct D-check and ensure corresponding trouble code is no longer present. If another trouble code is output, carry out trouble shooting again.

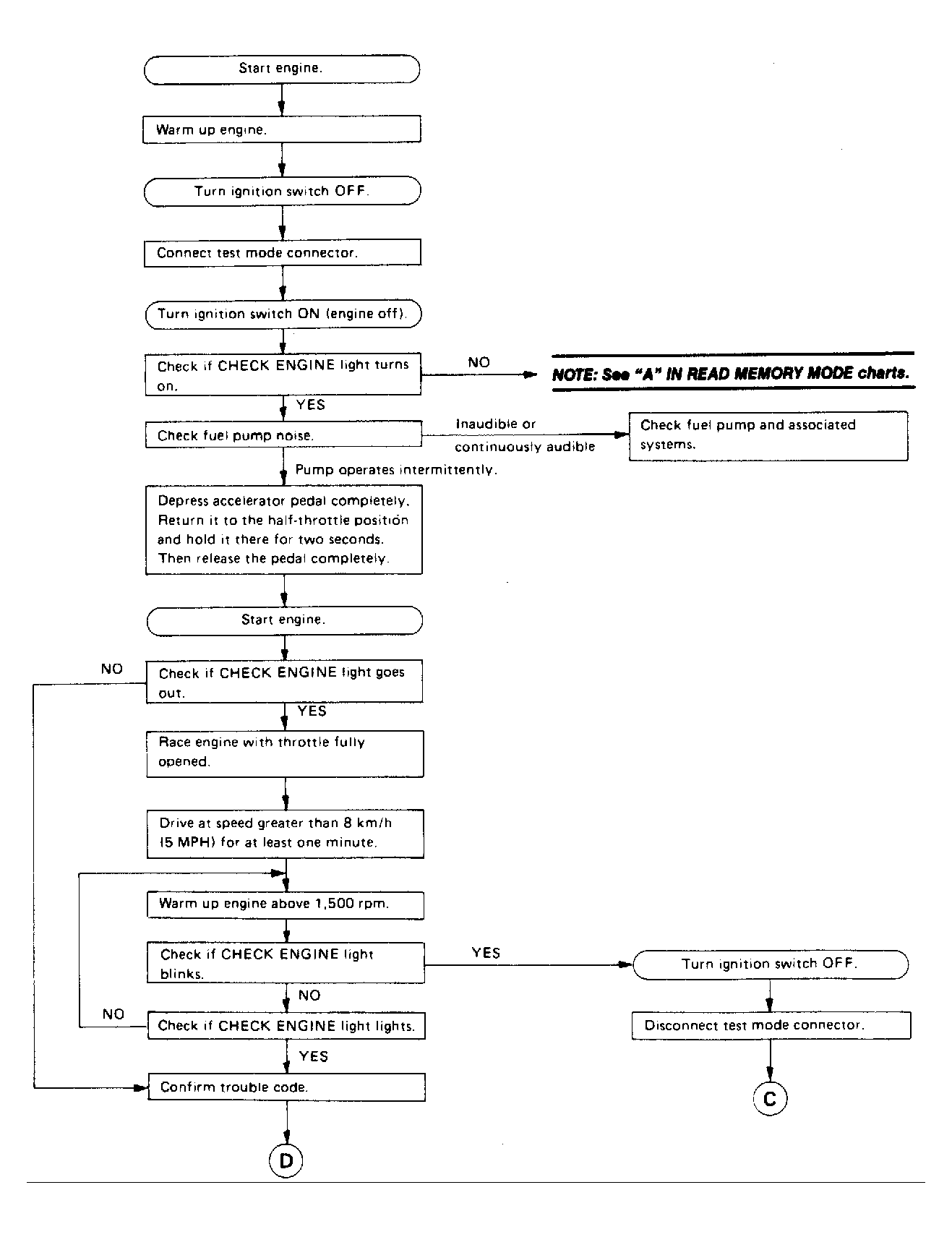

Fig 1: Flow Chart (1 of 2) - D-Check Mode
G90D21884

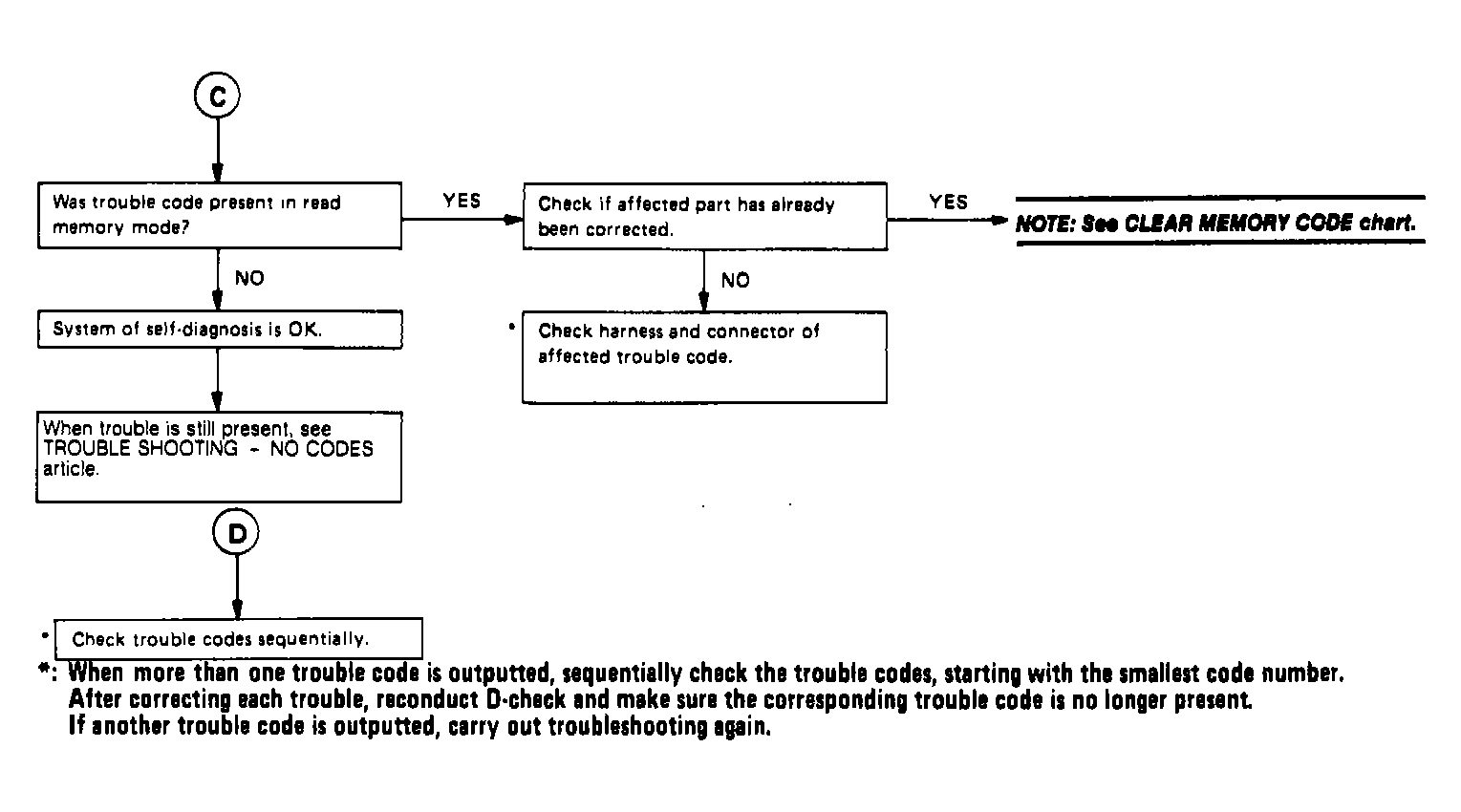

Fig 2: Flow Chart (2 of 2) - D-Check Mode
G90E21885
