Code 32: Oxygen (O2) Sensor

Fig 1: Schematic - Code 32, Oxygen (O2) Sensor (Federal)
G91C18384

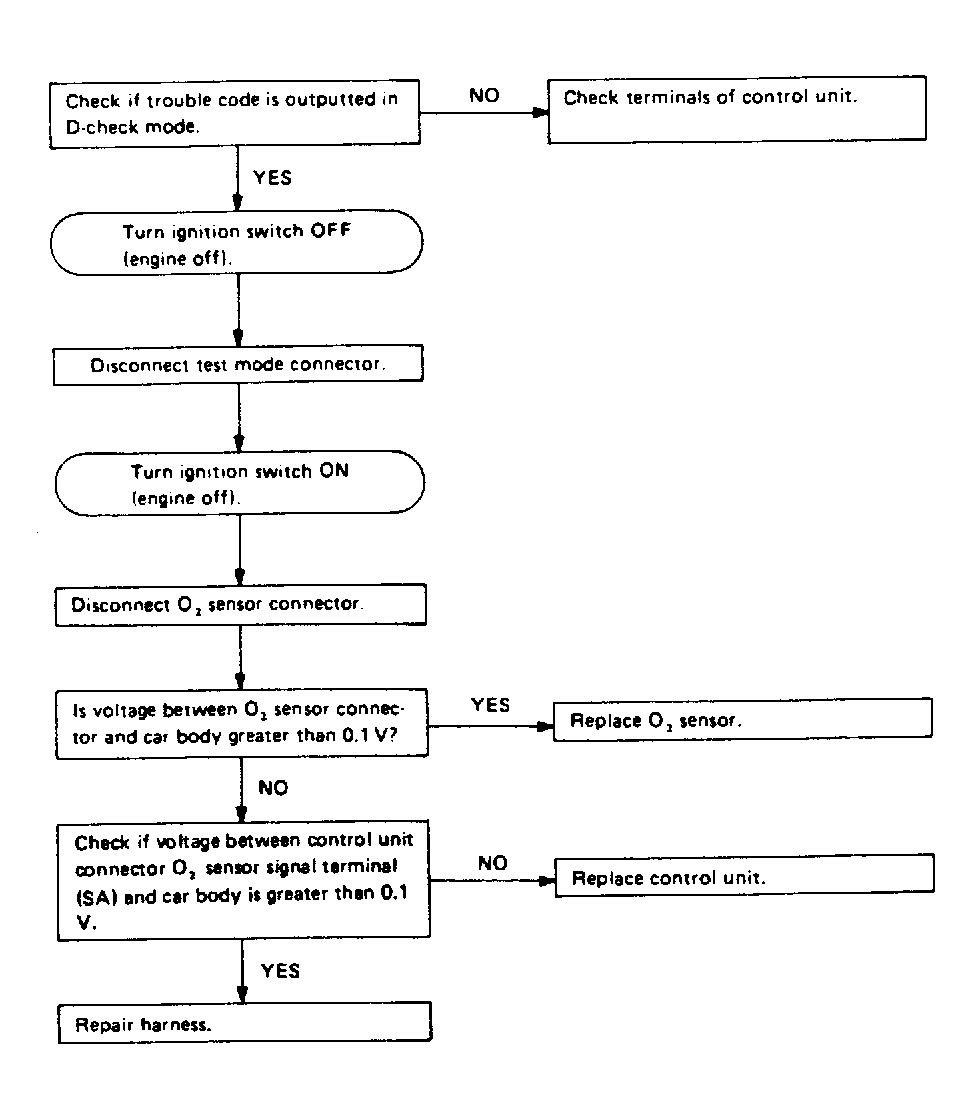

Fig 2: Flow Chart - Code 32, Oxygen (O2) Sensor (Federal)
G90J21898
Fig 3: Schematic - Code 32, Oxygen (O2) Sensor (Calif.)
G91D18385

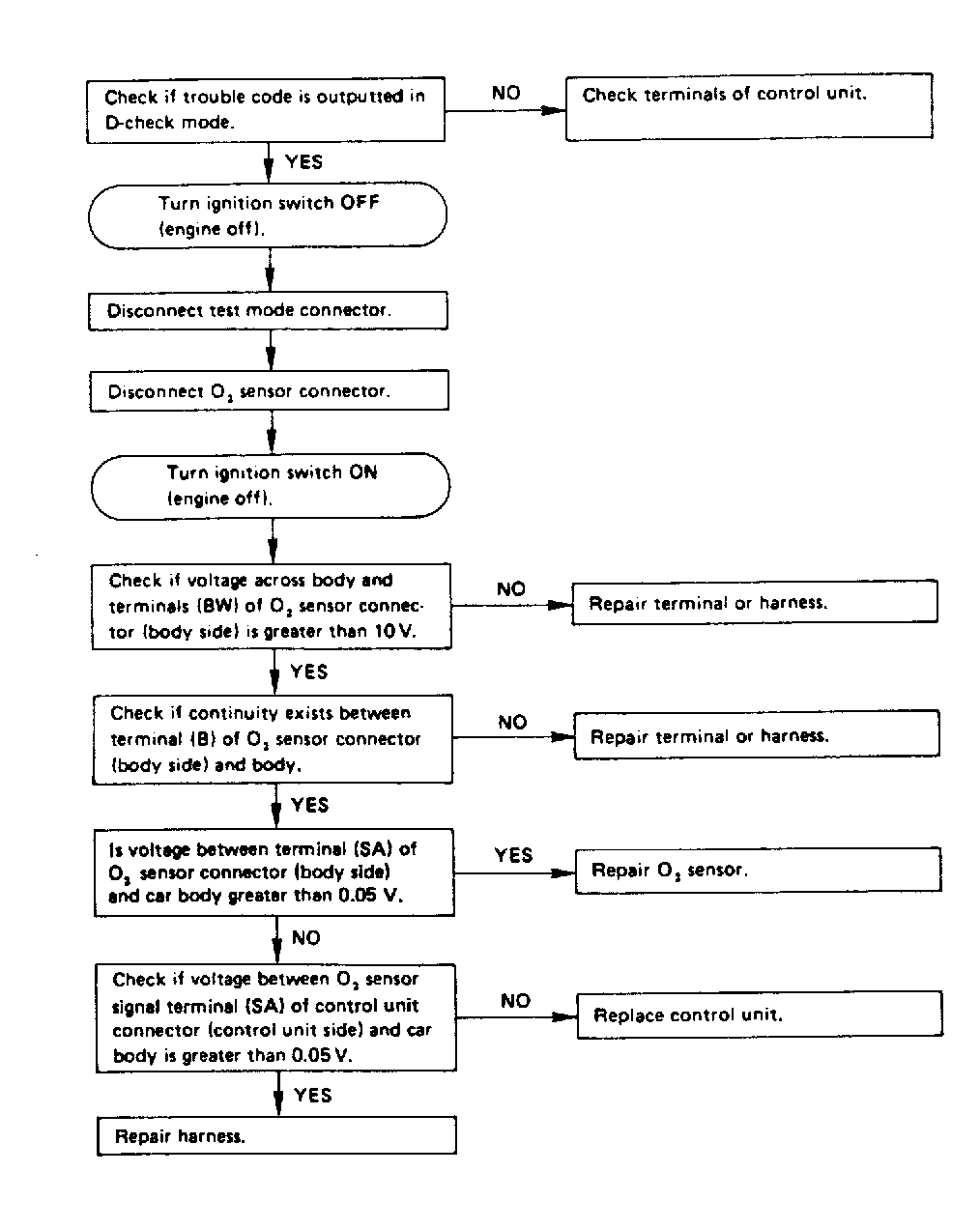

Fig 4: Flow Chart - Code 32, Oxygen (O2) Sensor (Calif.)
G90A21899
