Code 11: Crank Angle Sensor

Fig 1: Schematic - Code 11, Crank Angle Sensor

G91B18375

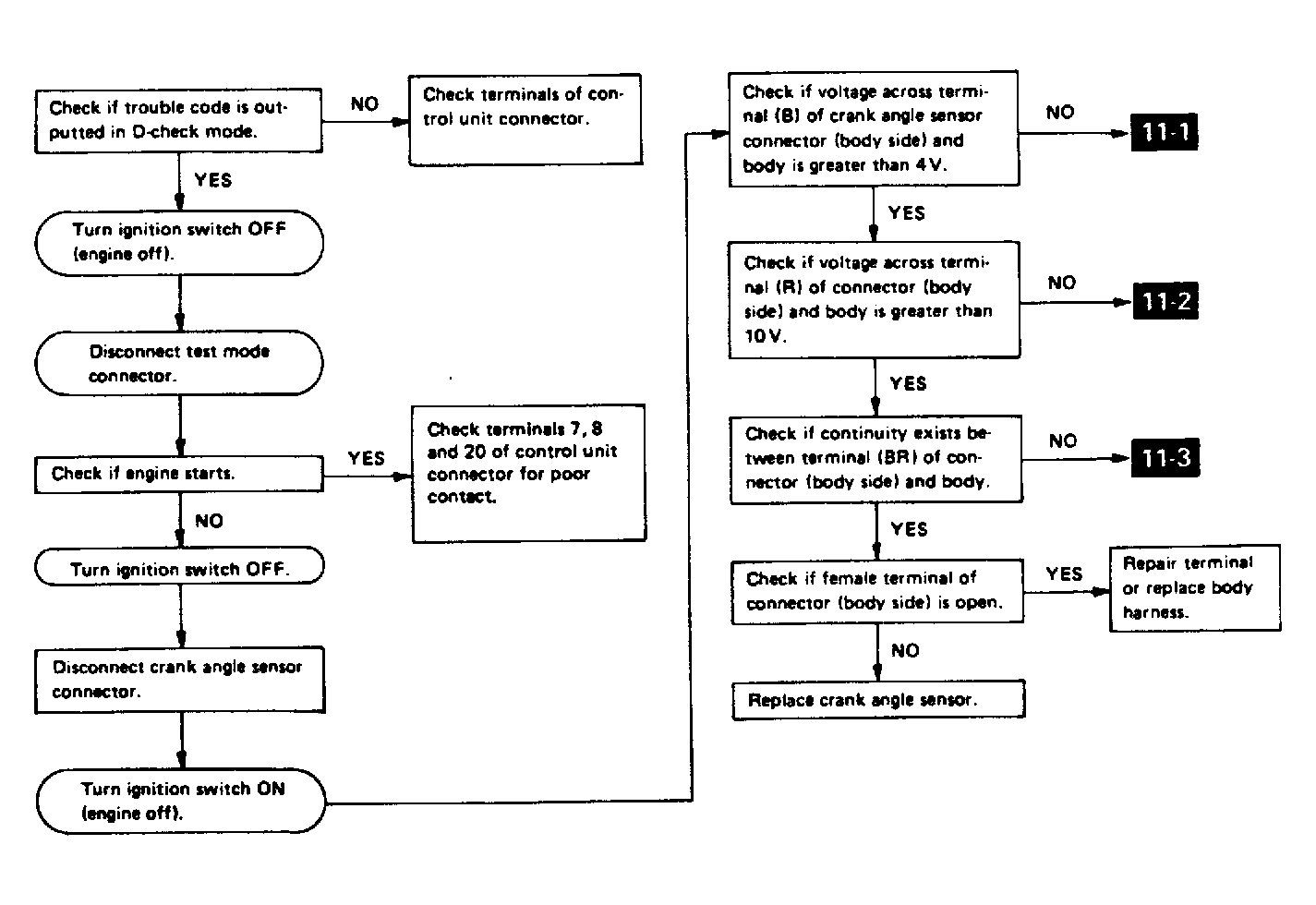

Fig 2: Flow Chart (1 of 2) - Code 11, Crank Angle Sensor

G90G21887

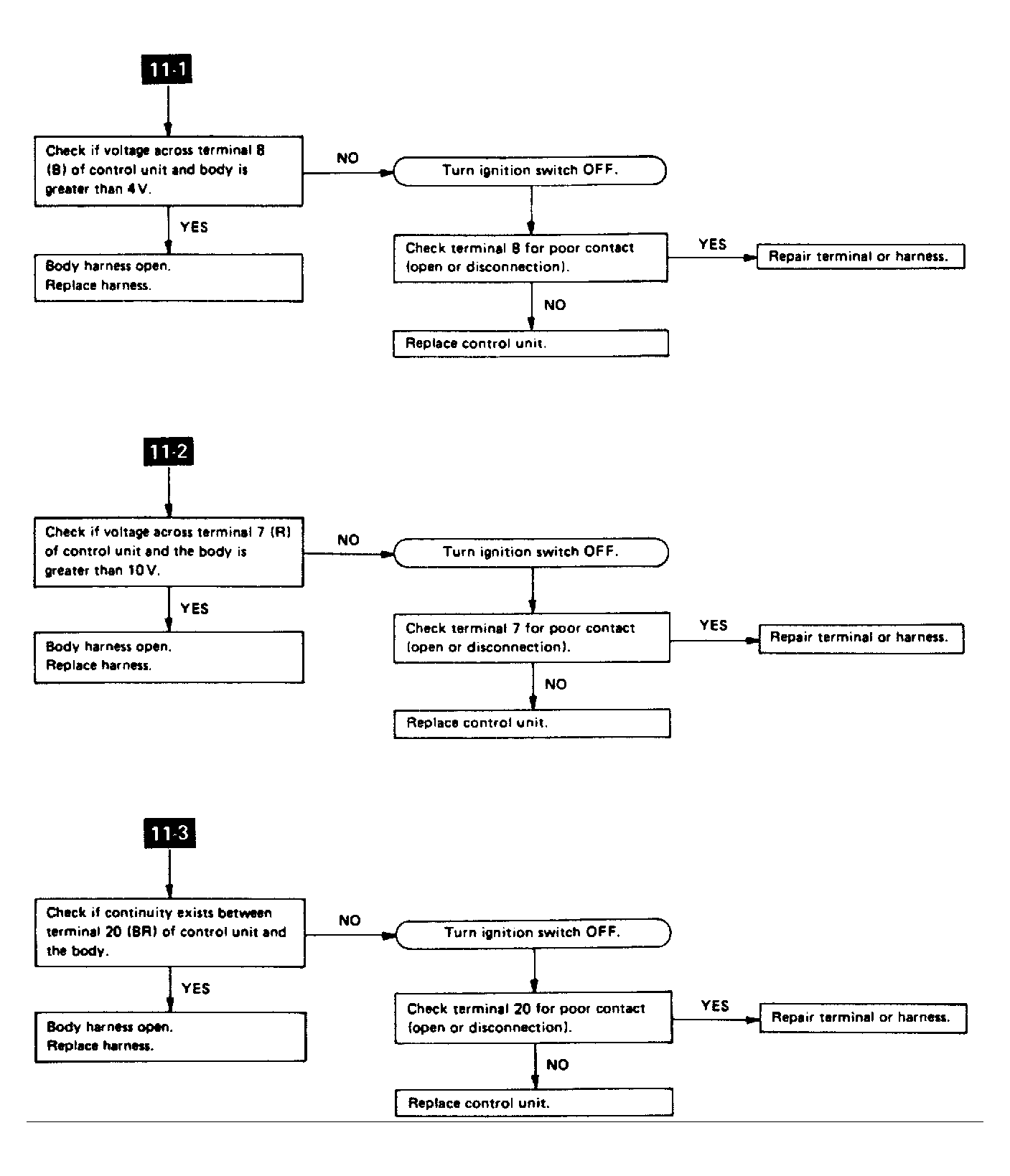

Fig 3: Flow Chart (2 of 2) - Code 11, Crank Angle Sensor

G90H21888
