Code 42: Idle Switch

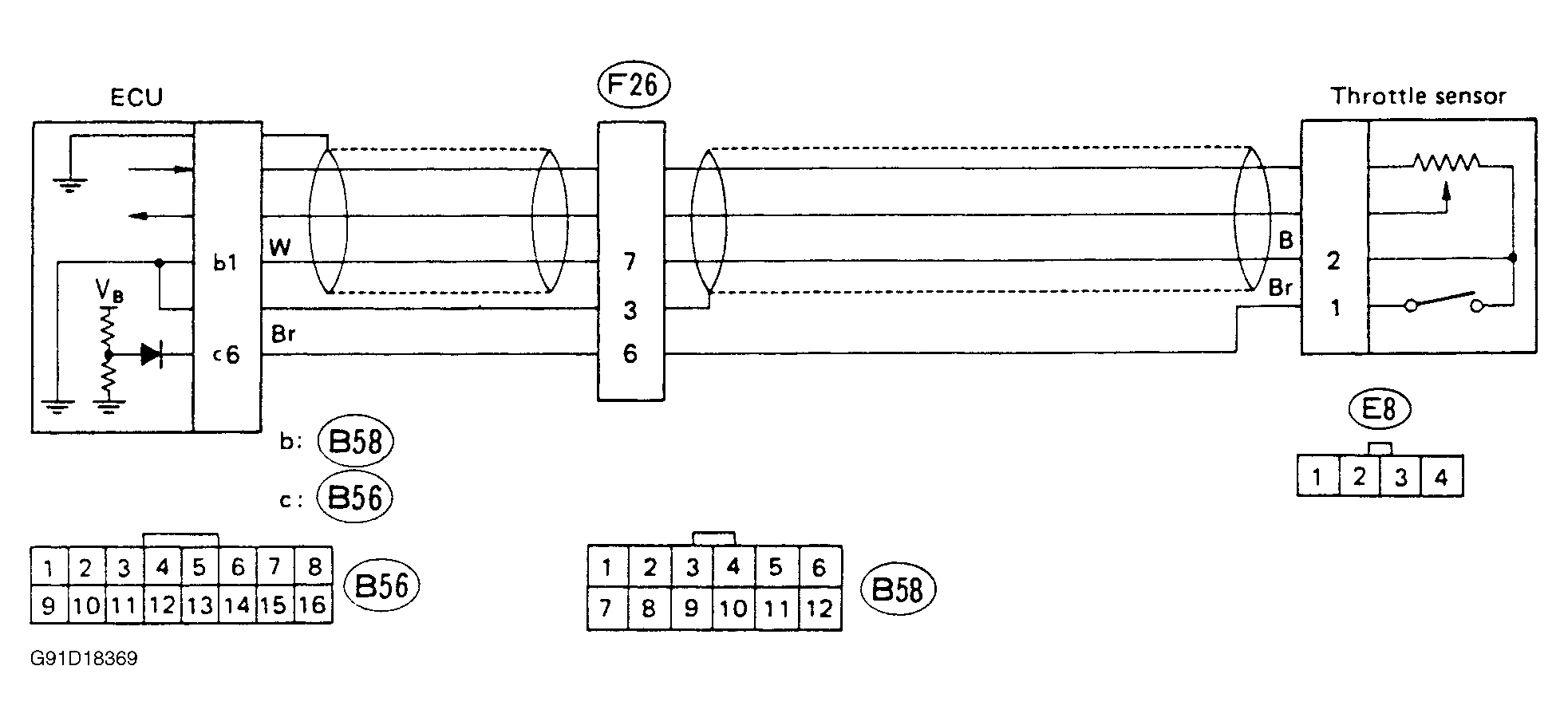

Fig 1: Schematic - Code 42, Idle Switch

G91D18369

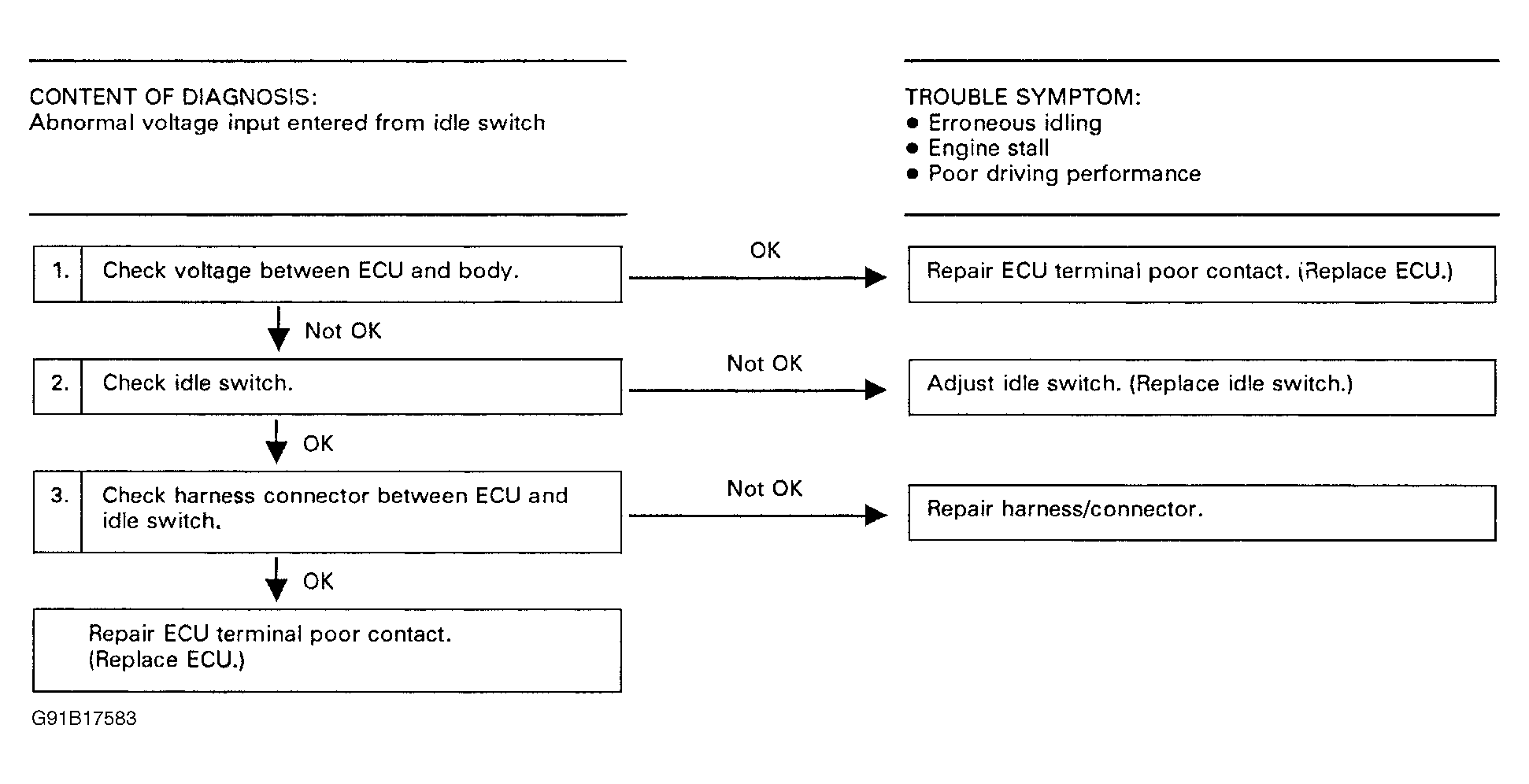

Fig 2: Flow Chart - Code 42, Idle Switch

G91B17583

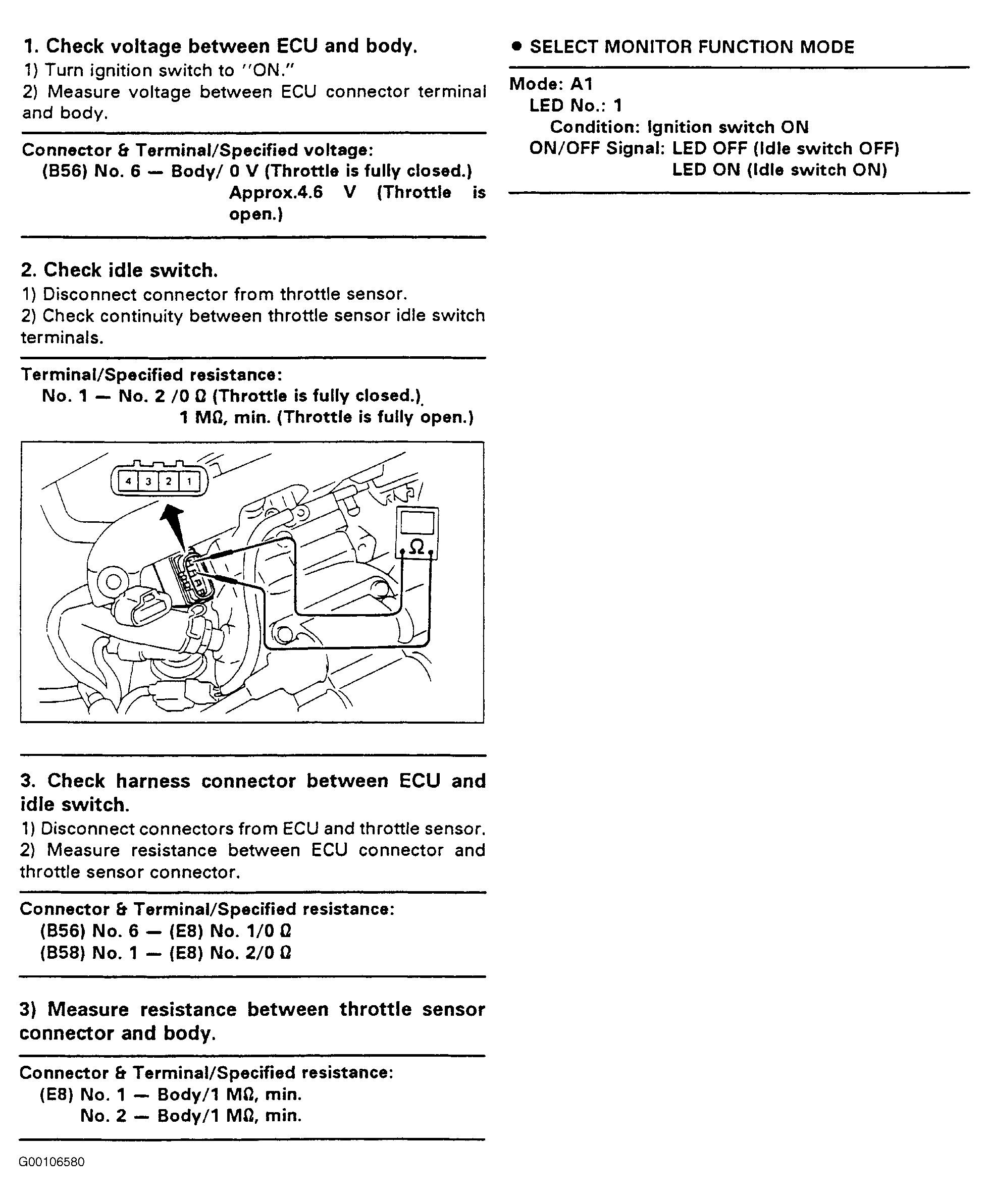

Fig 3: Code 42, Flow Chart Diagnostic Aids

G00106580

Courtesy of SUBARU OF AMERICA, INC.
