Code 23: Airflow Meter Circuit

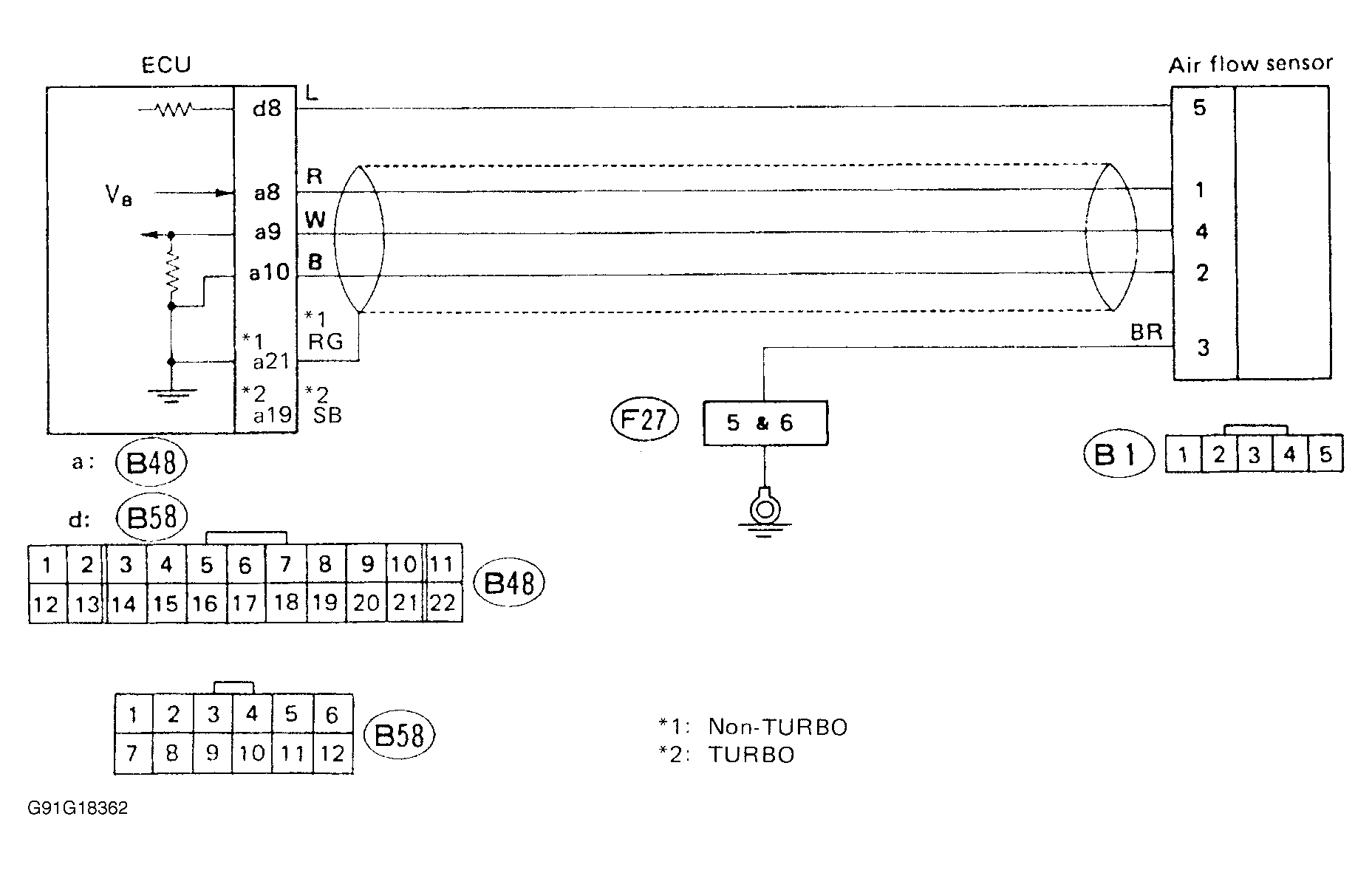

Fig 1: Schematic - Code 23, Airflow Meter Circuit
G91G18362

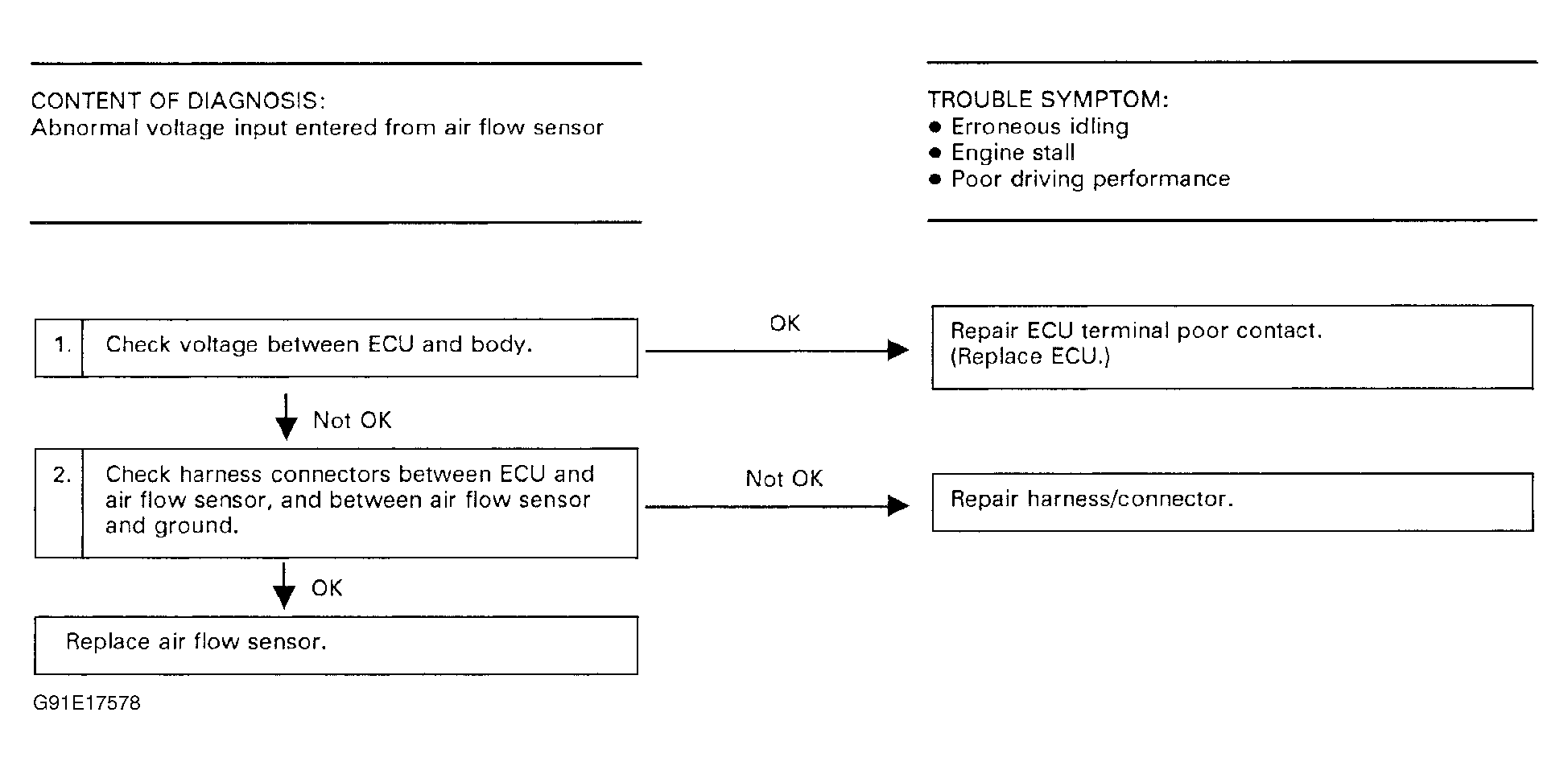

Fig 2: Flow Chart - Code 23, Airflow Meter Circuit
G91E17578
Fig 3: Code 23, Flow Chart Diagnostic Aids
G00106587Courtesy of SUBARU OF AMERICA, INC.
