Code 14: Duty Solenoid Valve

Fig 1: Wiring Schematic - Code 14, Duty Solenoid Valve

G118315

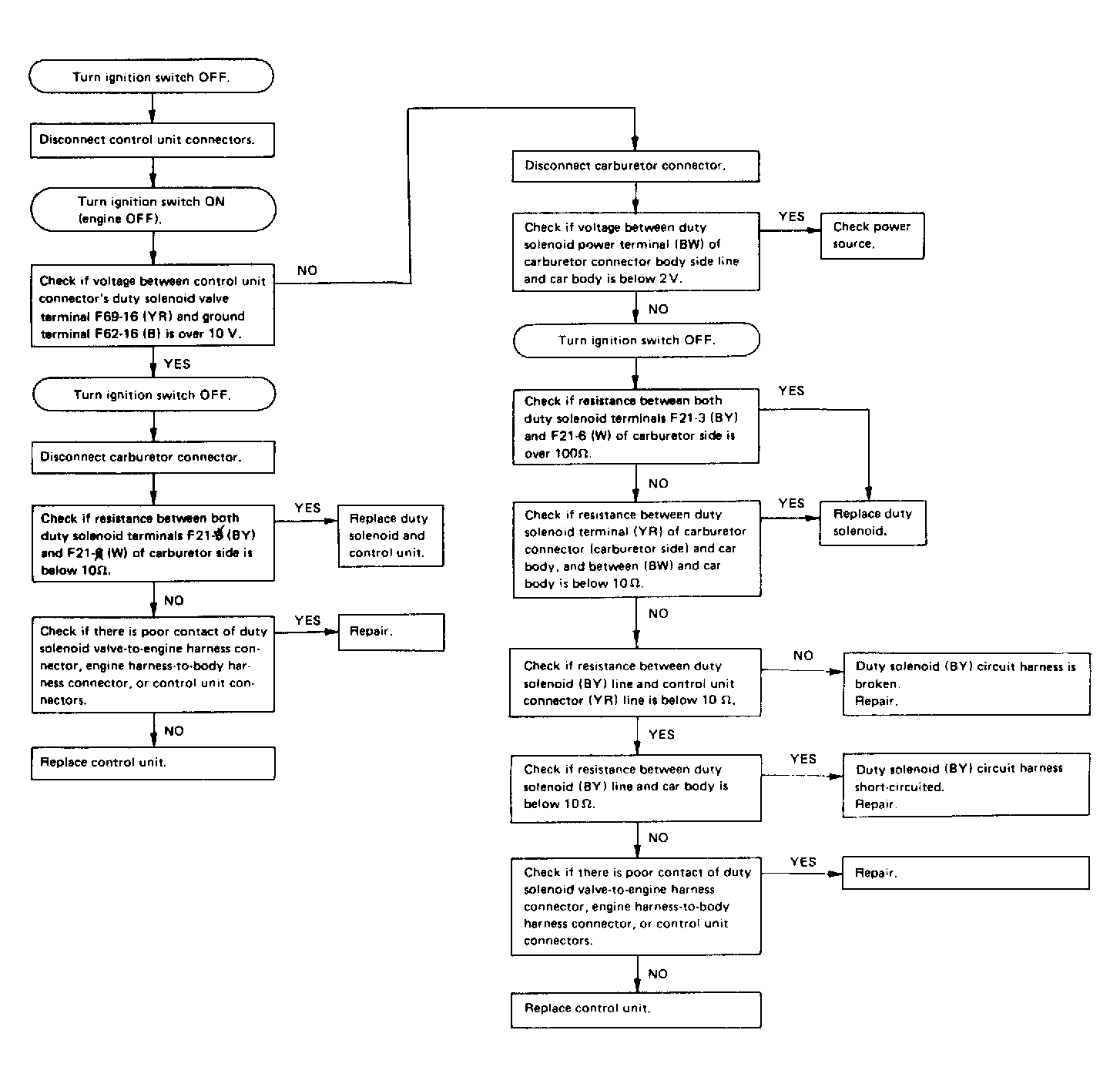

Fig 2: Flow Chart - Code 14, Duty Solenoid Valve

G121921
