ECVT Control Unit Self-Diagnosis

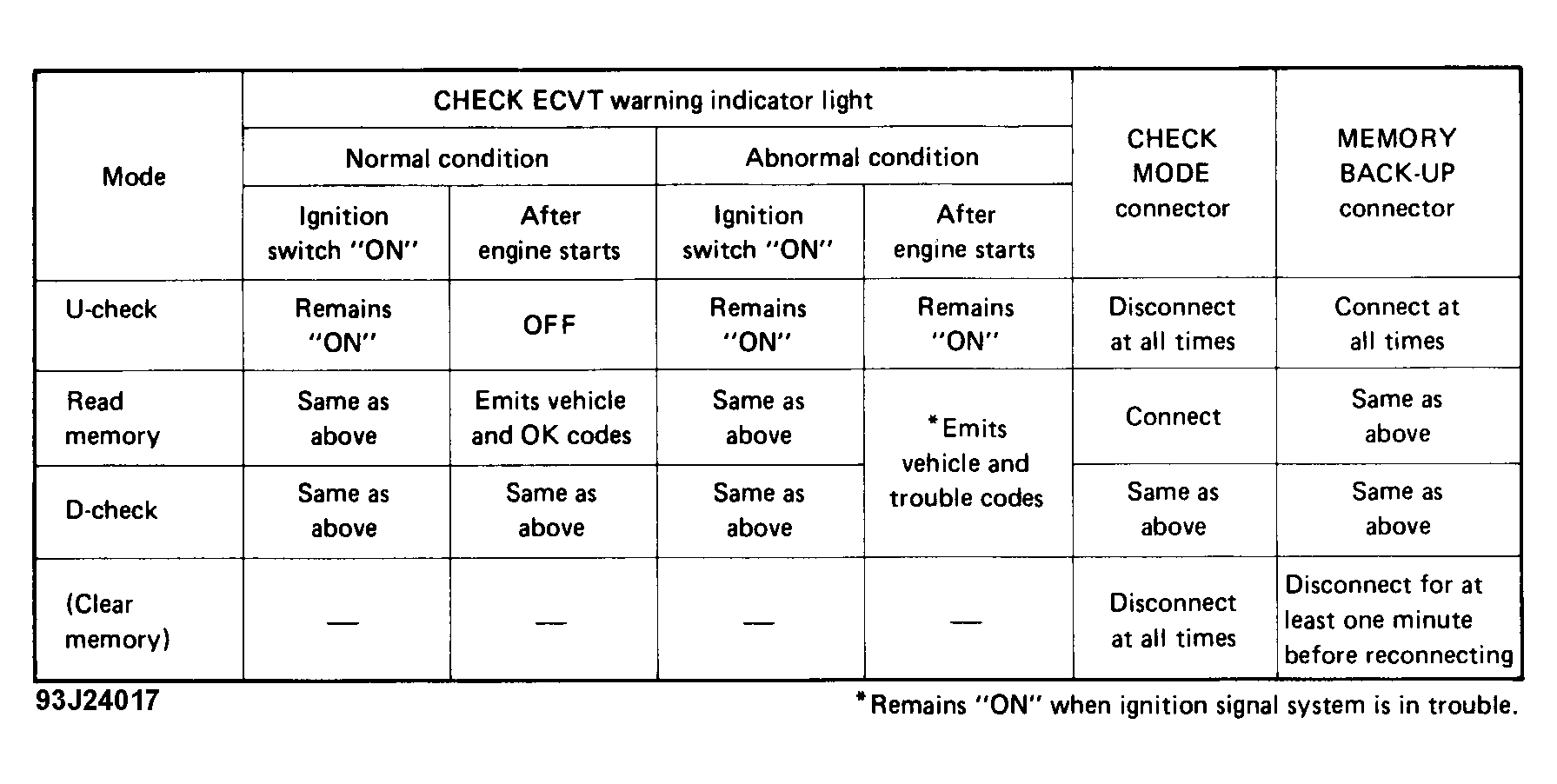

- When a problem occurs, CHECK ECVT warning indicator light will glow. When no problem is present, warning indicator light will go out soon after engine starts. See Fig 5.

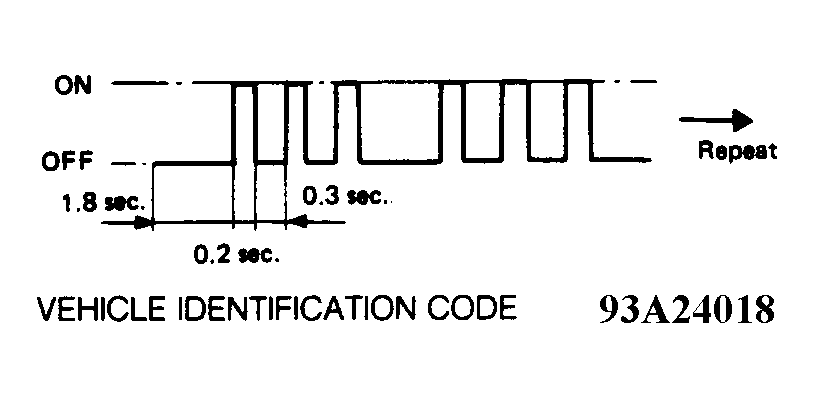

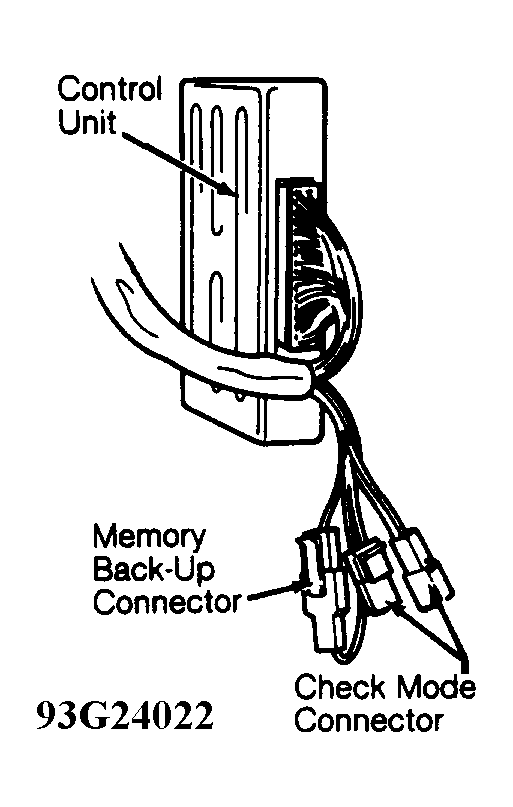

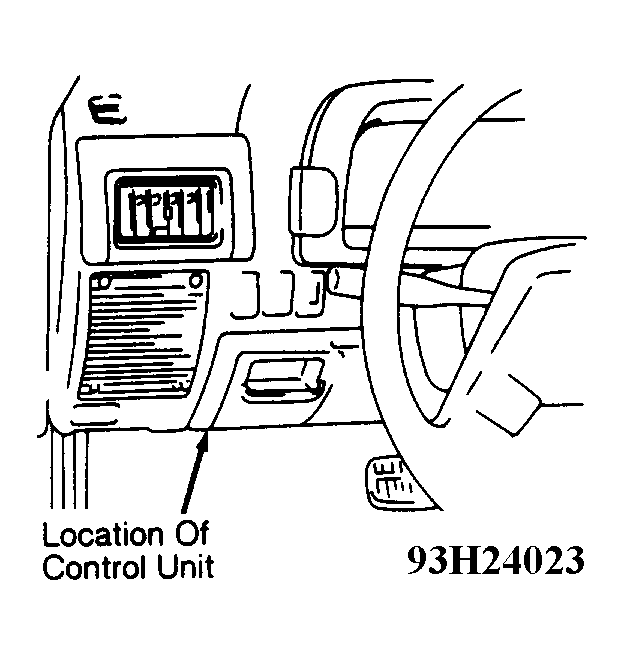

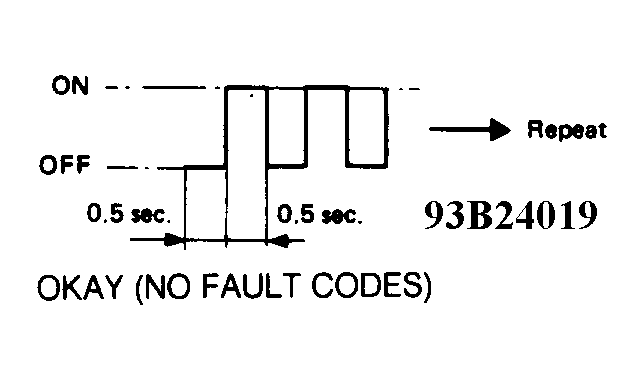

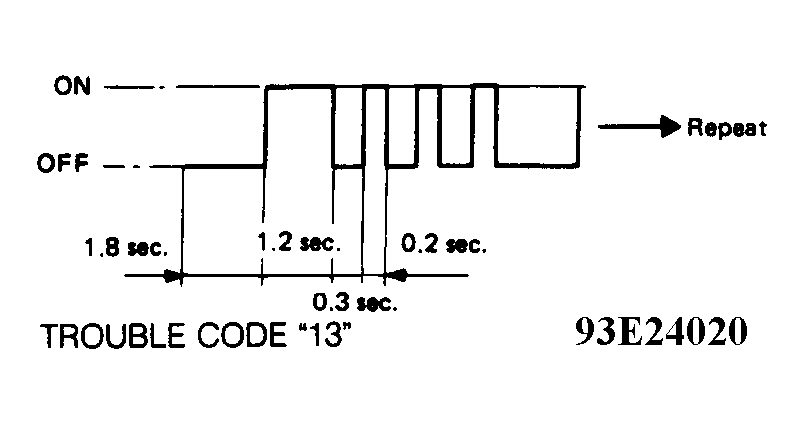

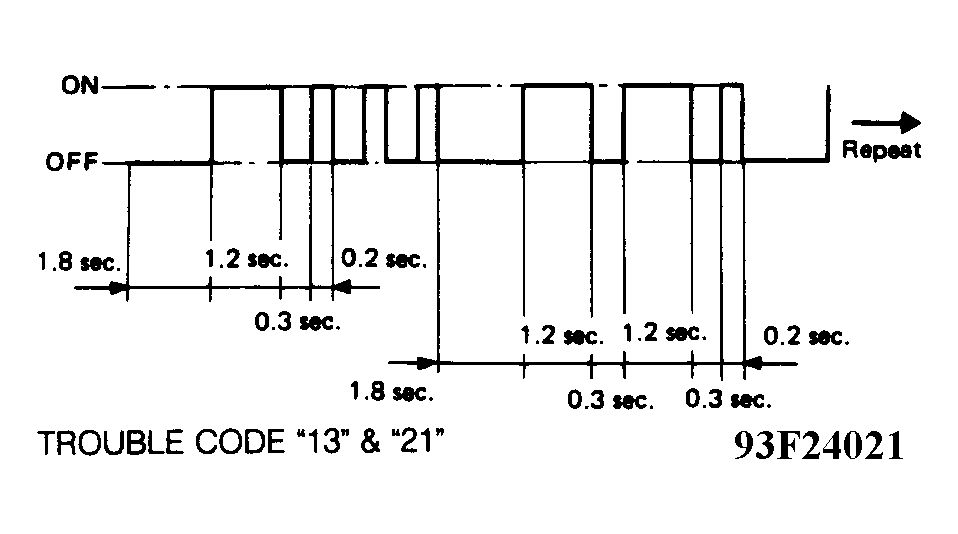

- If a problem is indicated, connect the check mode connectors. See Fig 6-9 for connector locations. Verify trouble codes. See Fig 1-5. See TROUBLE CODES.
- Cancel previous trouble codes stored in memory by disconnecting memory back-up connector for at least one minute. See Fig 6-9. Reconnect memory back-up connector.
