Electrical Specifications
>>
Power Window Motor
Power Window Motor

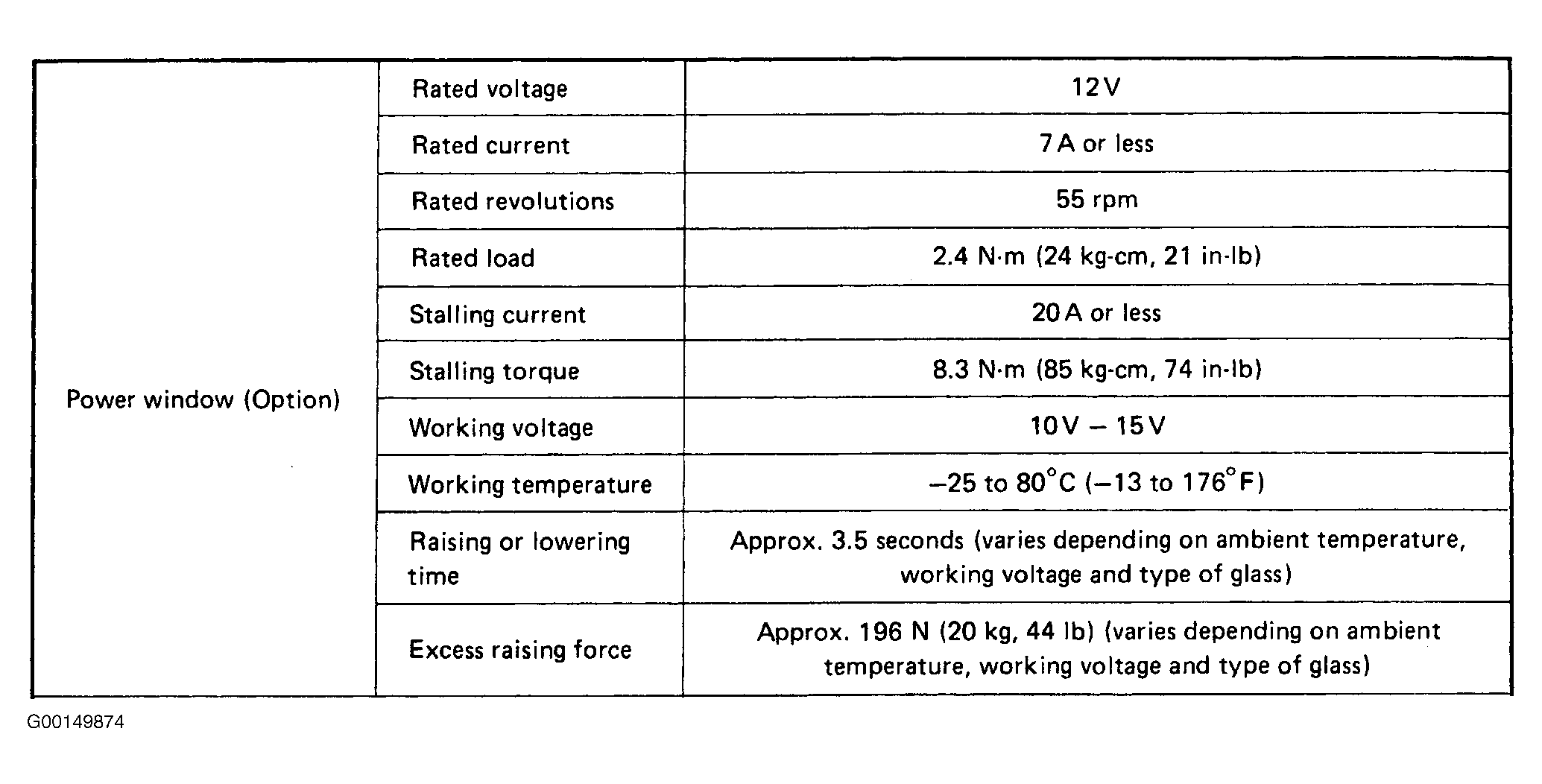

Fig 1: Power Window Motor Electrical Specifications
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
