Trouble Code 32, Throttle Sensor

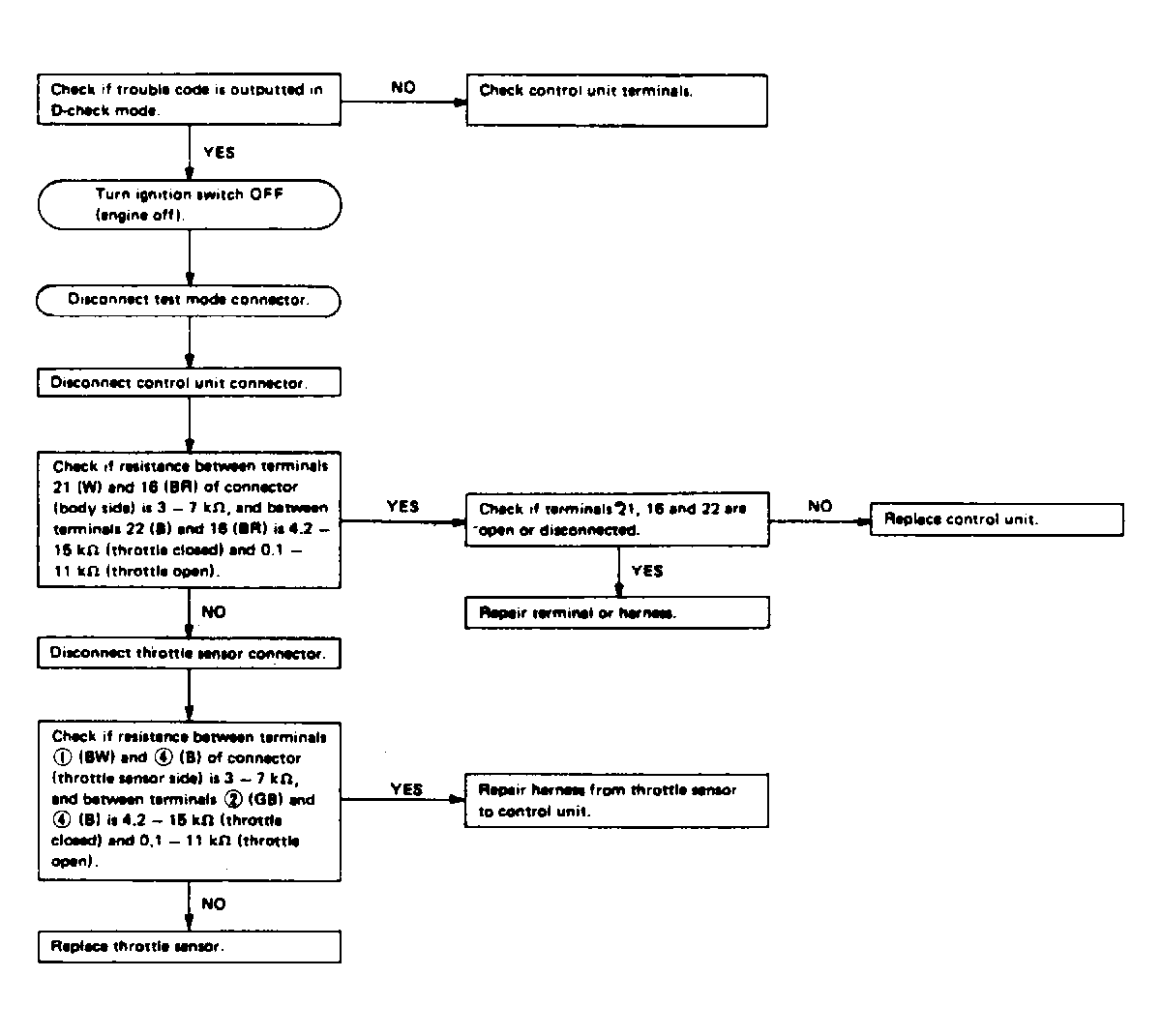

Fig 1: Trouble Code 32, Throttle Sensor (XT 2.7L Model)

G95128

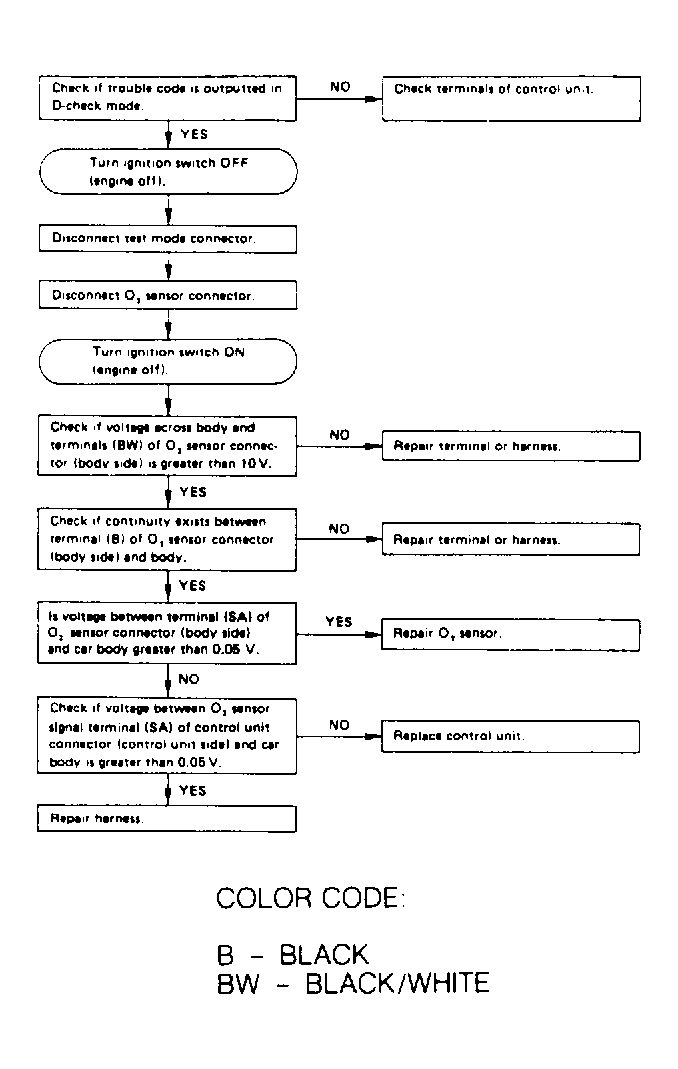

Fig 2: Trouble Code 32, Oxygen Sensor (Calif.)

G95130

Fig 3: Trouble Code 32, Oxygen Sensor (Exc. Calif.)

G61876
