Dual Range Models

Remove 4 bolts retaining transfer cover and remove cover. Move High/Low shifter rod to the "LO" position and insert Stopper Pin (499267000) into bore of transfer case and high/low shifter rod. See Fig 1 .
Loosen shifter rod adjustment lock nuts. While preventing front rod ball joint from turning, turn rod adjusting screw counterclockwise (as viewed from rear of screw). Back off rod adjusting screw 90 degrees from point at which rod is hard to move. Tighten lock nuts. See Fig 2 .
Remove stopper pin and check for proper operation of shifter rod. Install transfer cover with new gasket and tighten bolts to 11 ft. lbs. (15 N.m).

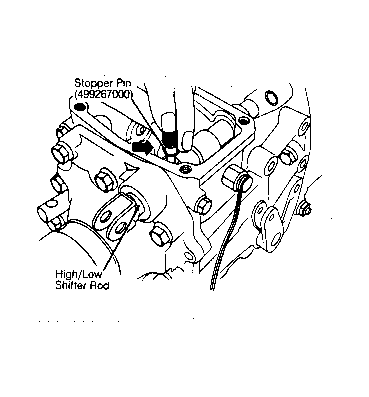

Fig 1: Installing Stopper Pin Into High/Low Shifter Rod
Courtesy of SUBARU OF AMERICA, INC.

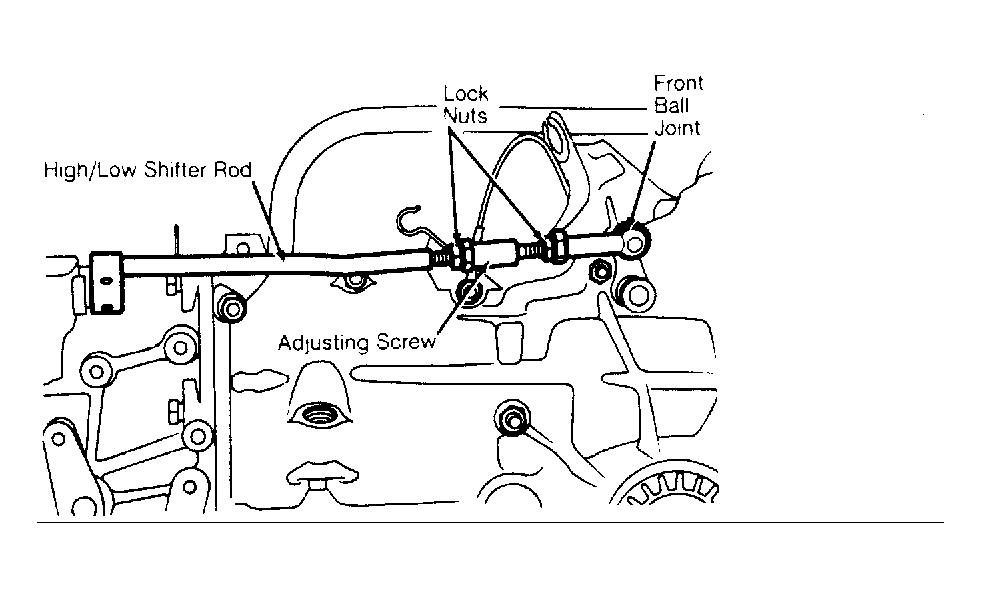

Fig 2: Adjusting High/Low Shifter Rod
Courtesy of SUBARU OF AMERICA, INC.
