Steering System - Electronic Power: Wiring Diagram

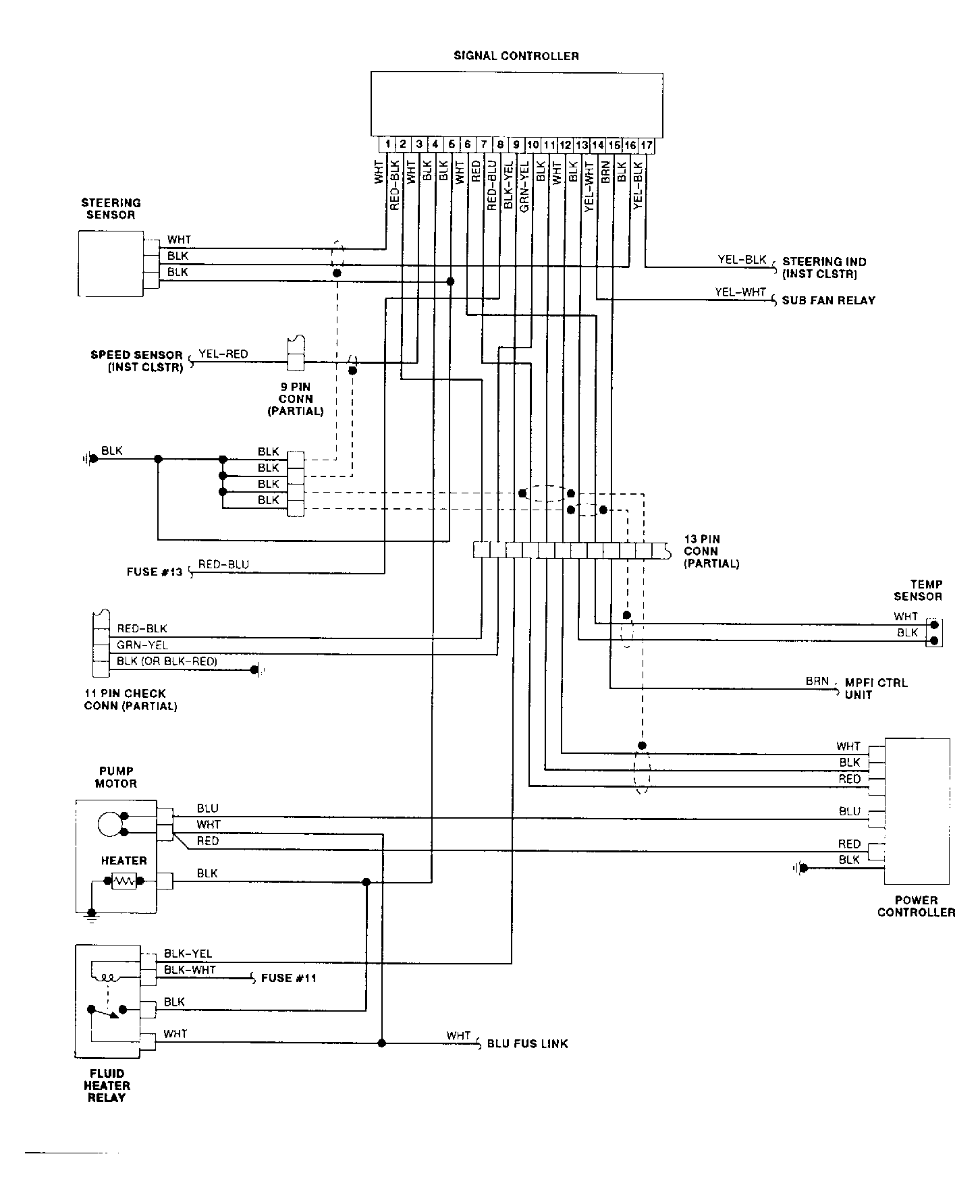

Fig 1: Subaru Electronic Controlled Power Steering Pump Schematic

G101414
