Trouble Shooting

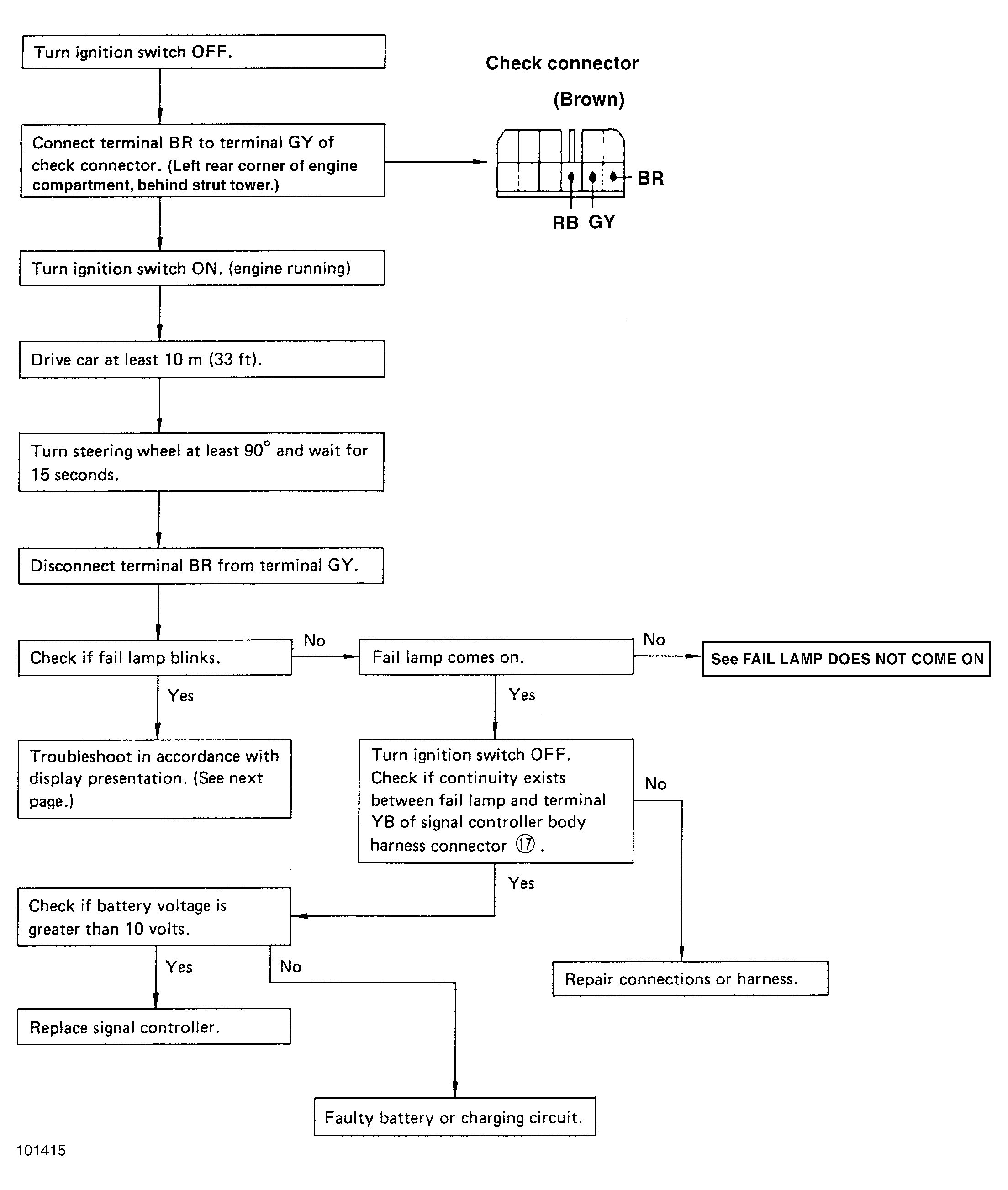

Fig 1: Self Diagnosis Procedure

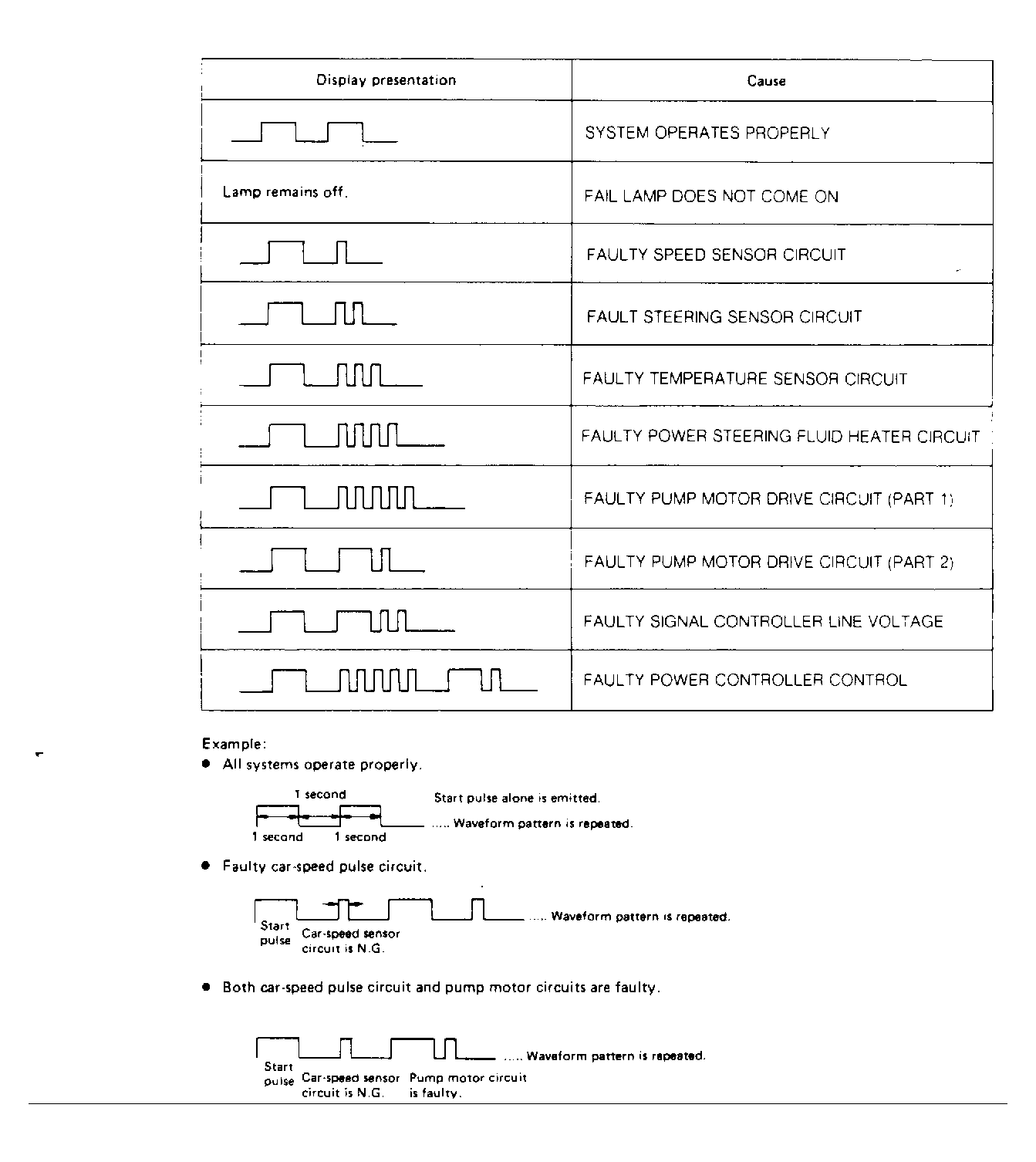

Fig 2: Display Presentation

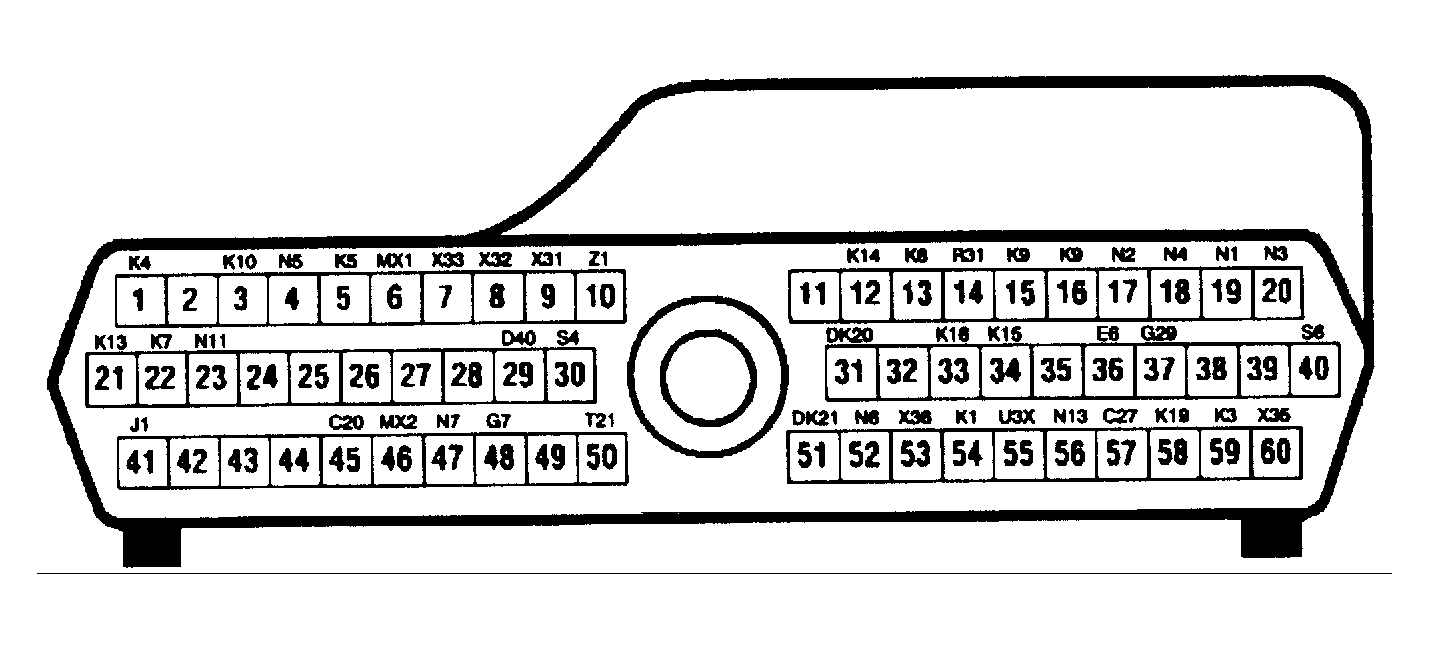

Fig 3: Faulty Speed And Temperature Sensor Circuit

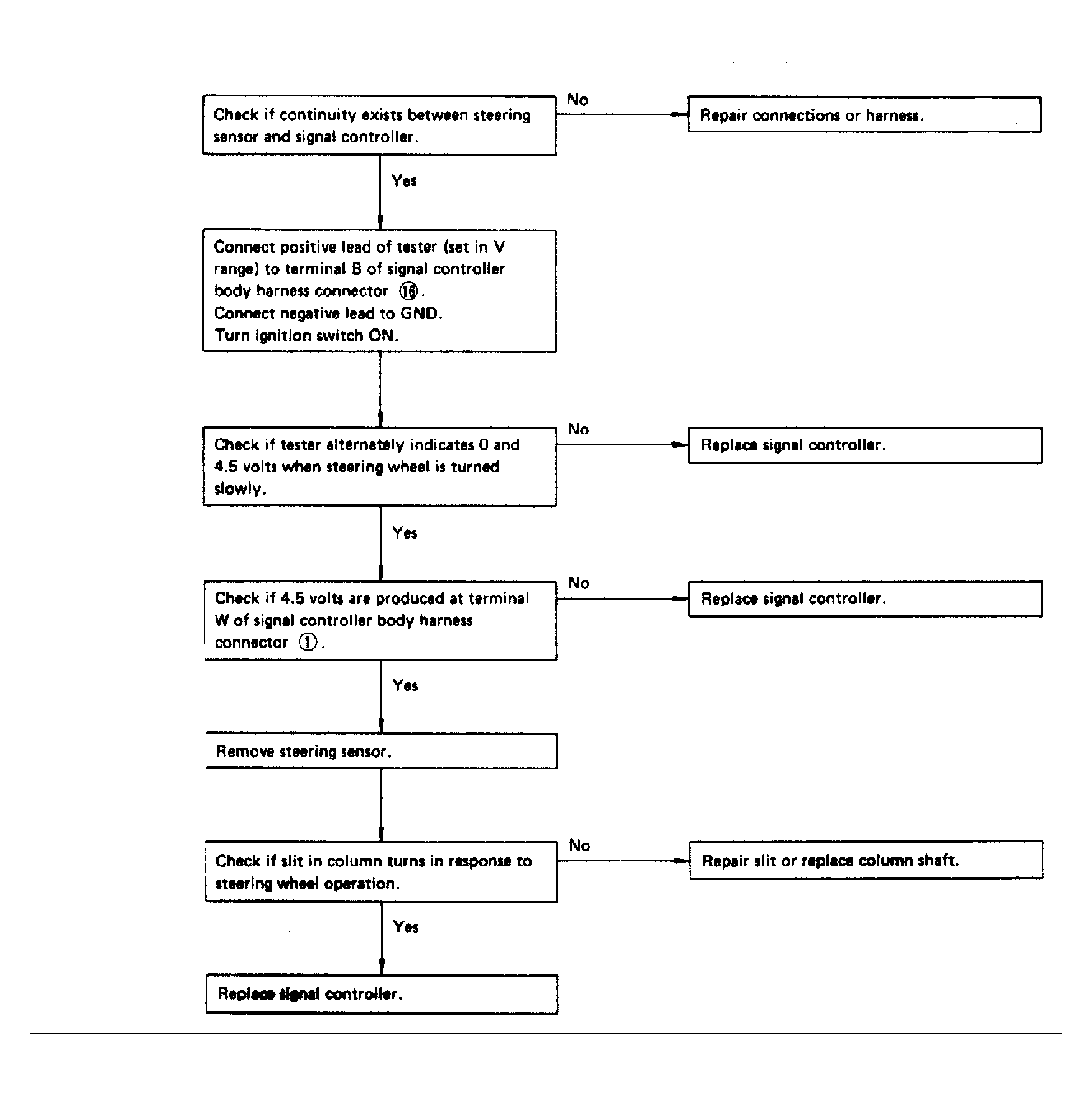

Fig 4: Faulty Steering Sensor Circuit

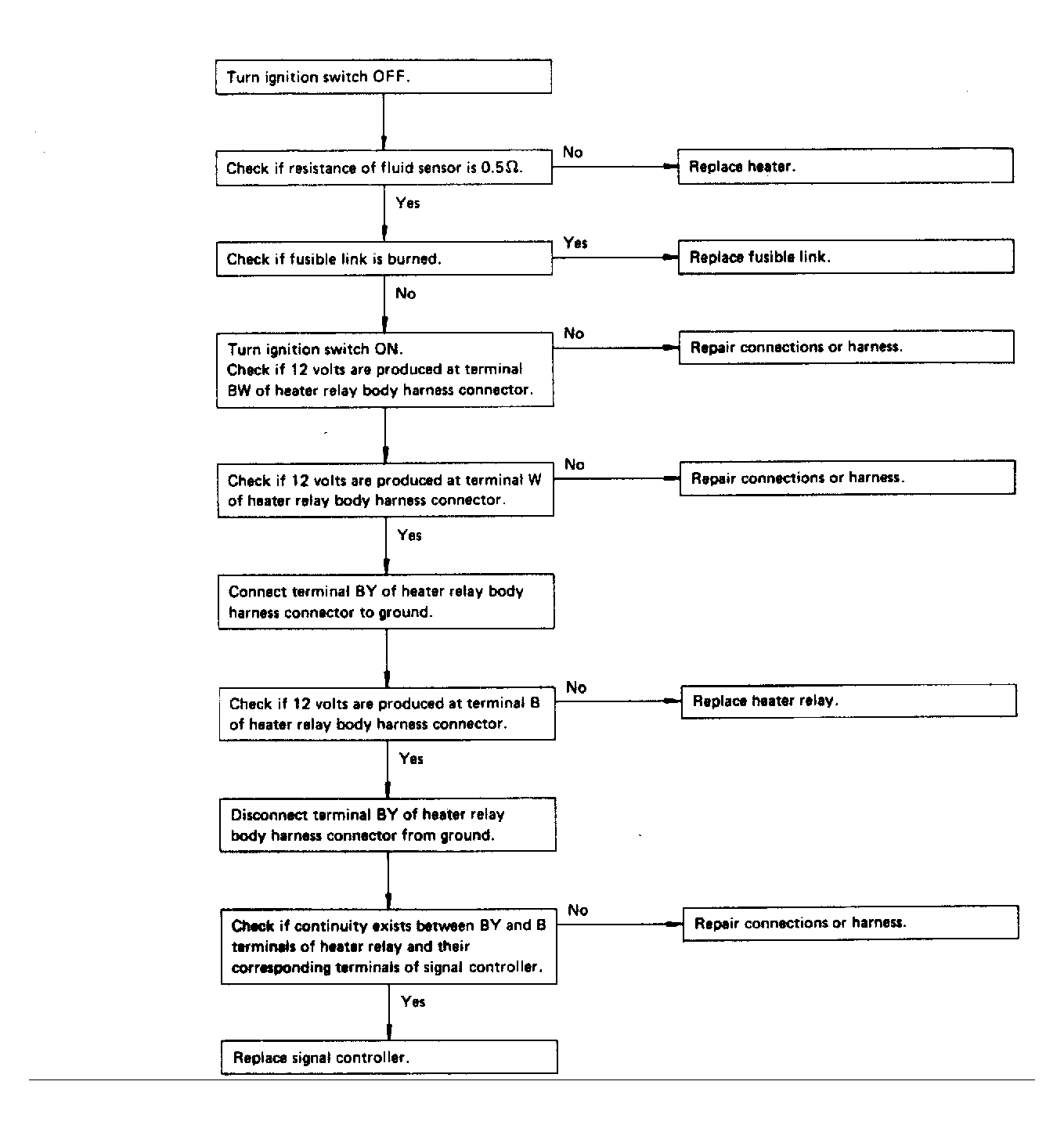

Fig 5: Faulty Power Steering Fluid Heater Circuit

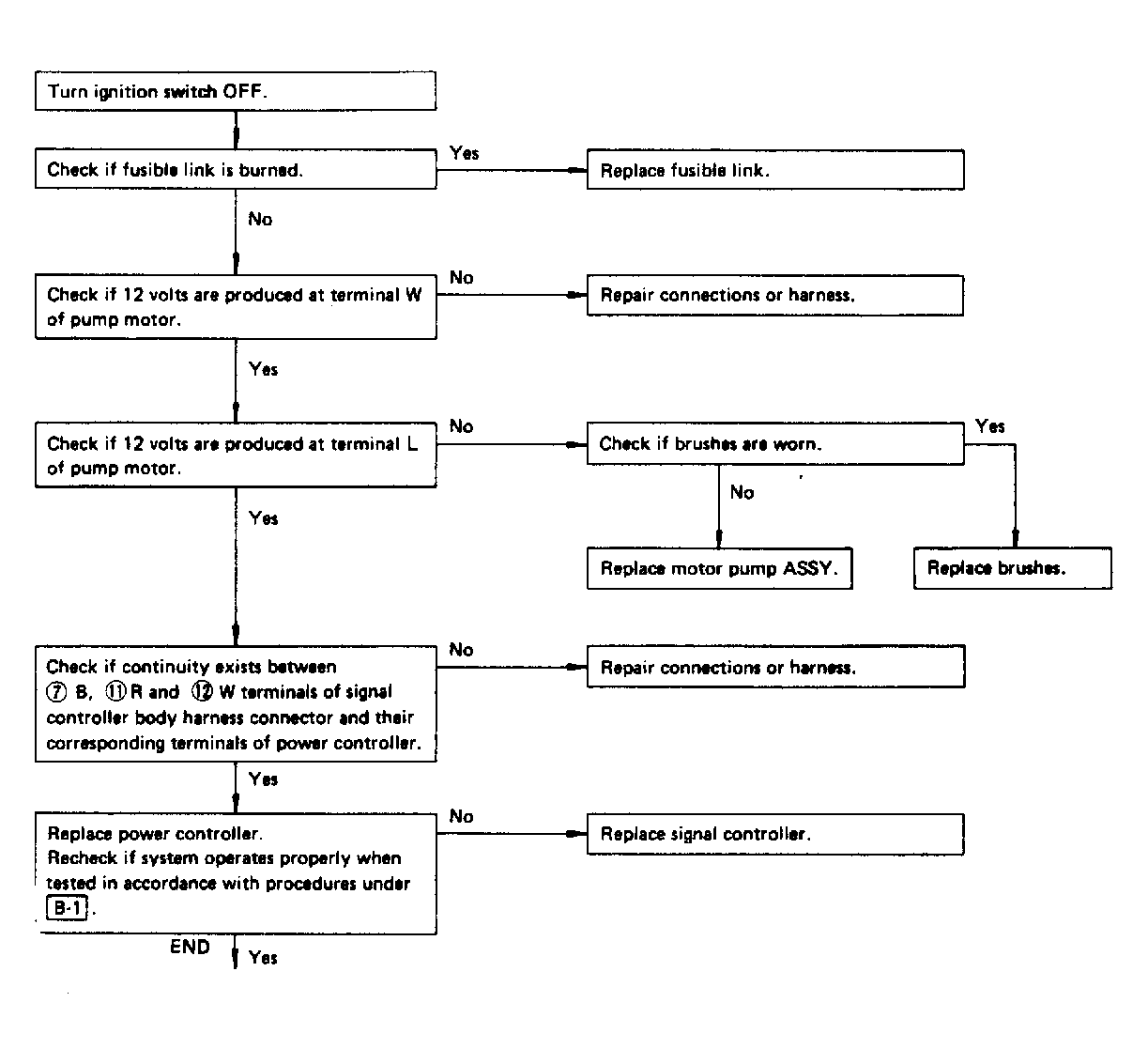

Fig 6: Faulty Pump Motor Drive Circuit (Part 1 & 2)

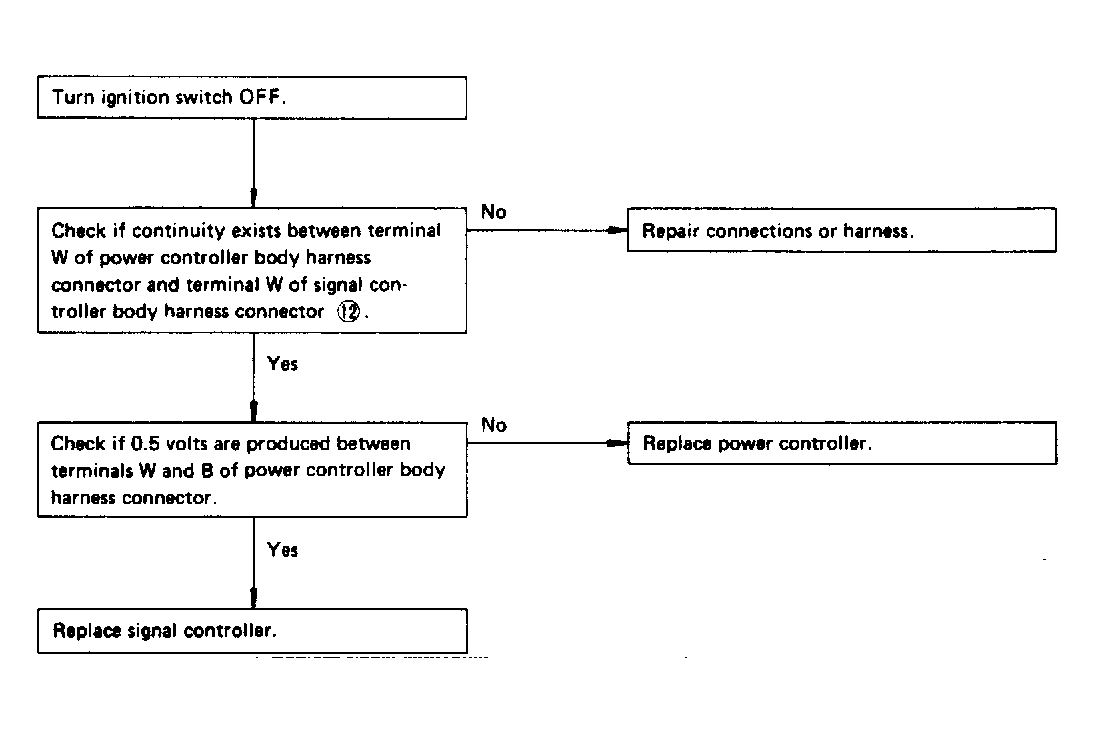

Fig 7: Faulty Power Controller Control & Faulty Signal Controller Line Voltage

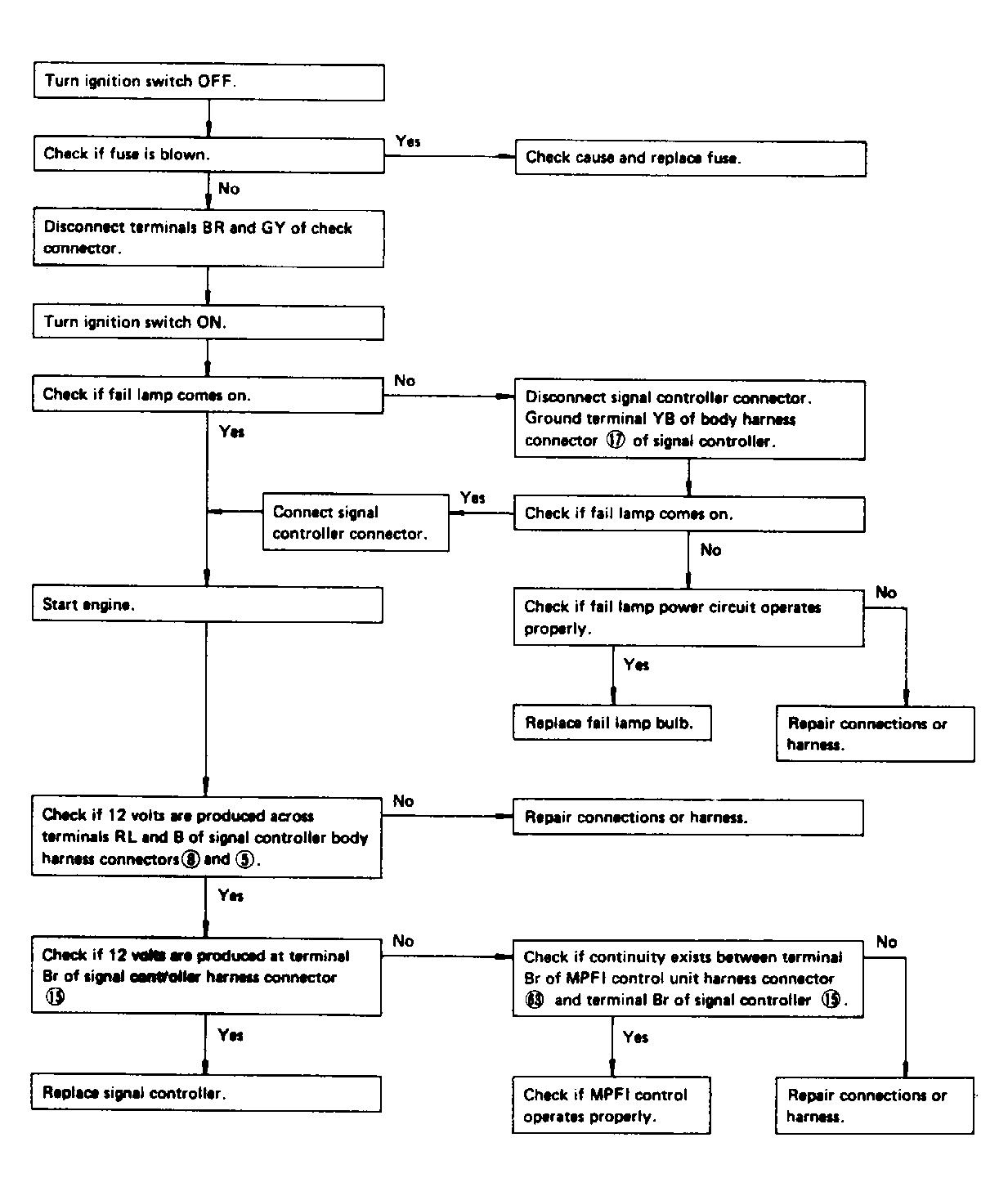

Fig 8: Fail Lamp Does Not Come On

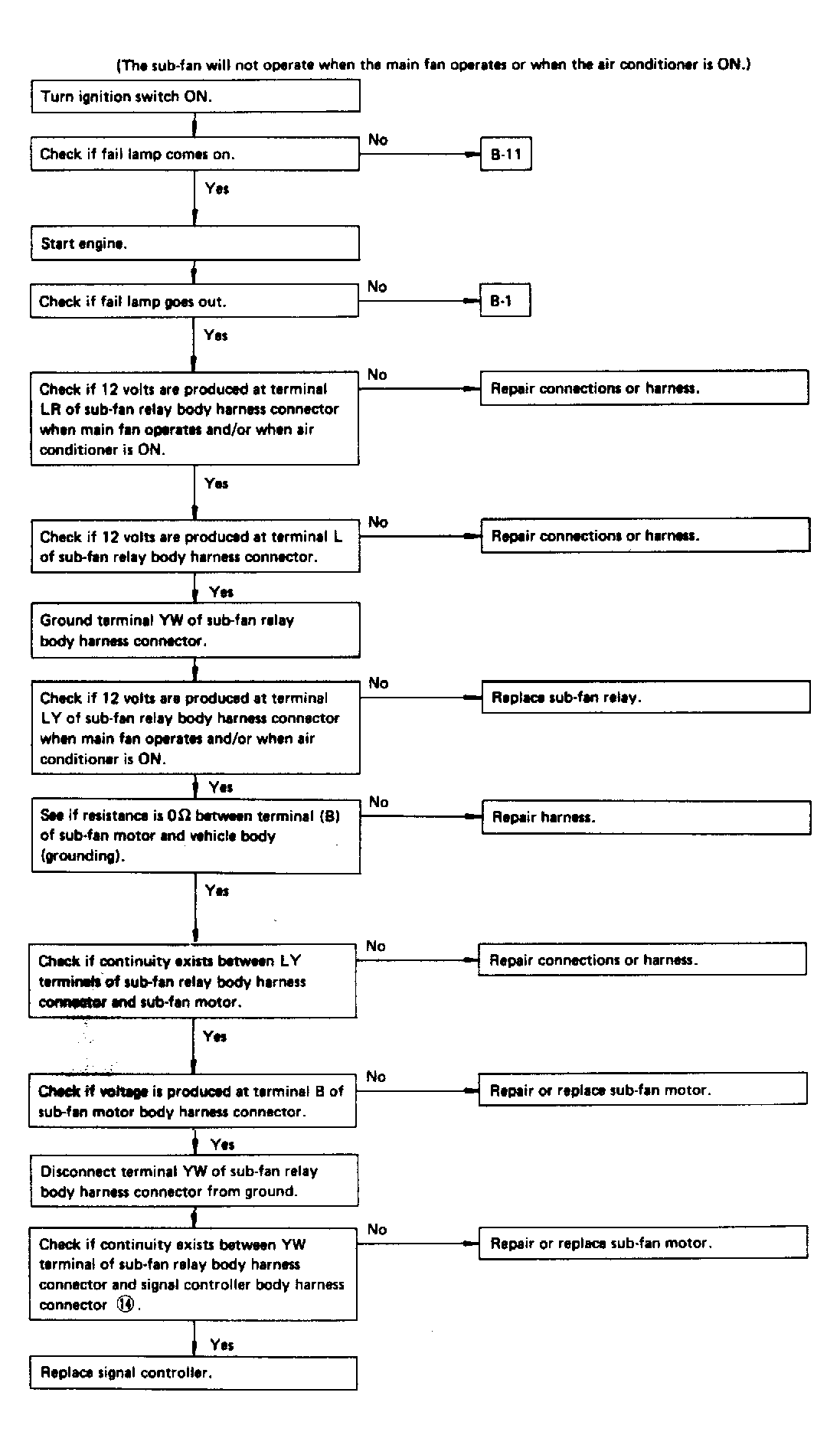

Fig 9: Faulty Sub-Fan Control Circuit (Part 1 Of 2)

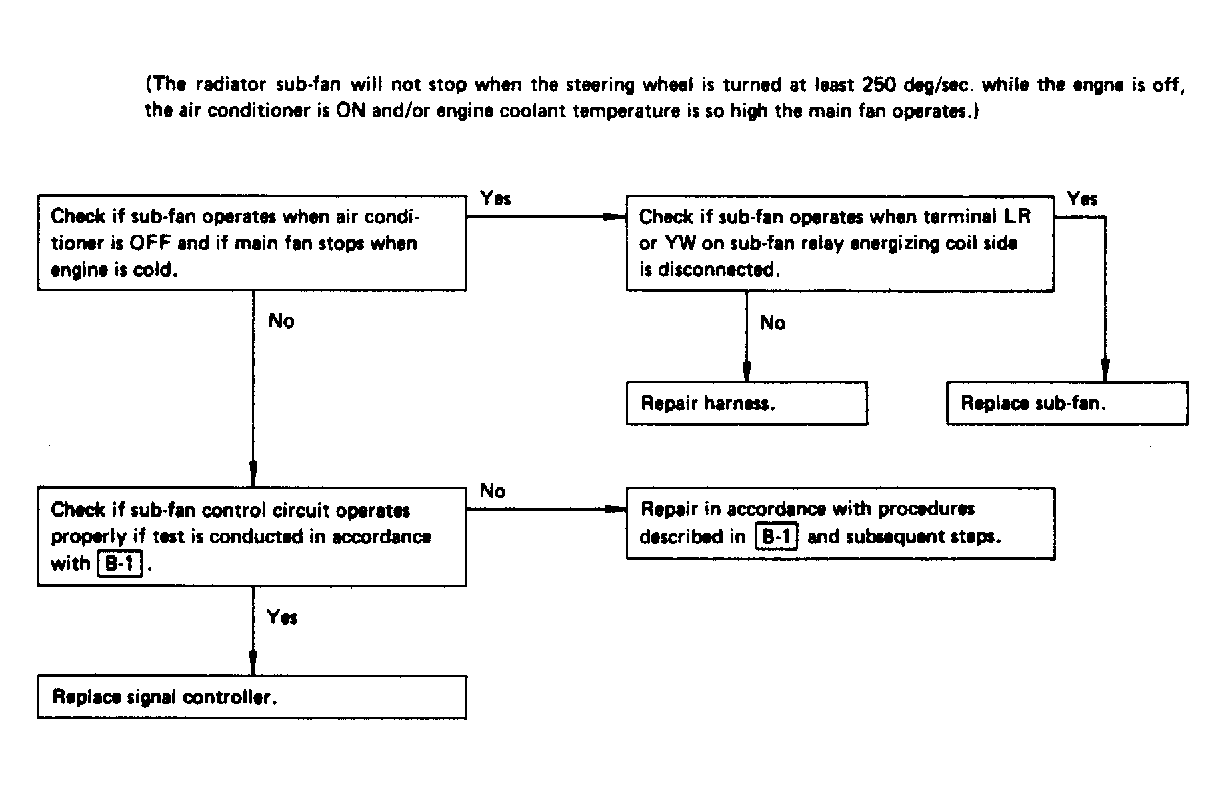

Fig 10: Faulty Sub-Fan Control Circuit (Part 2 Of 2)
