Home >> Subaru >> 1988 >> XT DL >> Repair and Diagnosis >> Engine Performance >> System >> MPFI CEC System >> Trouble Shooting For Engine Starting Failure >> Trouble Code 35, Purge Control Solenoid Valve

Trouble Code 35, Purge Control Solenoid Valve

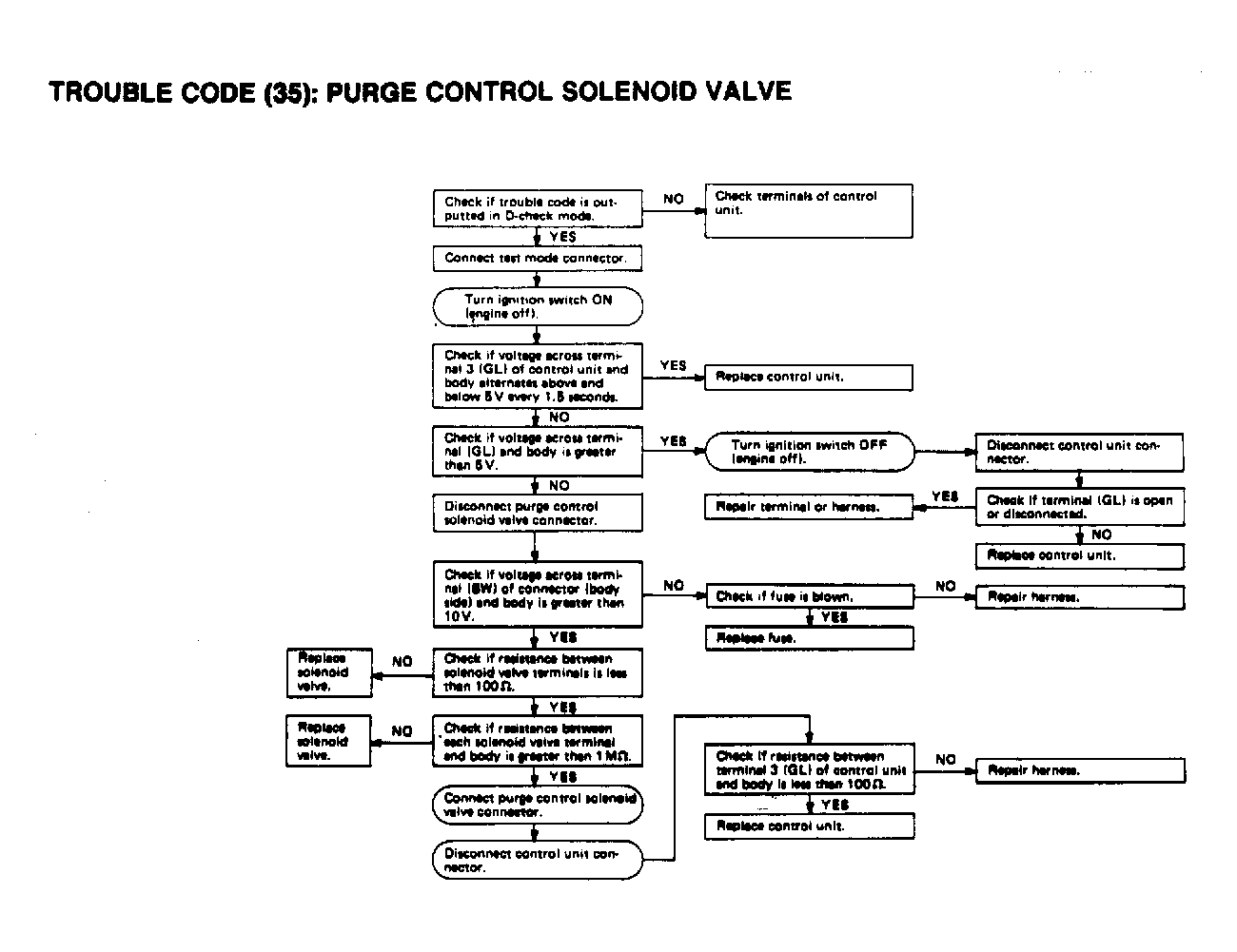

Fig 1: Trouble Code 35, Purge Control Solenoid Valve

G61881
