Trouble Shooting For Engine Starting Failure
>>
Trouble Code 25, Fuel Injector (XT 2.7L Model)
Trouble Code 25, Fuel Injector (XT 2.7L Model)

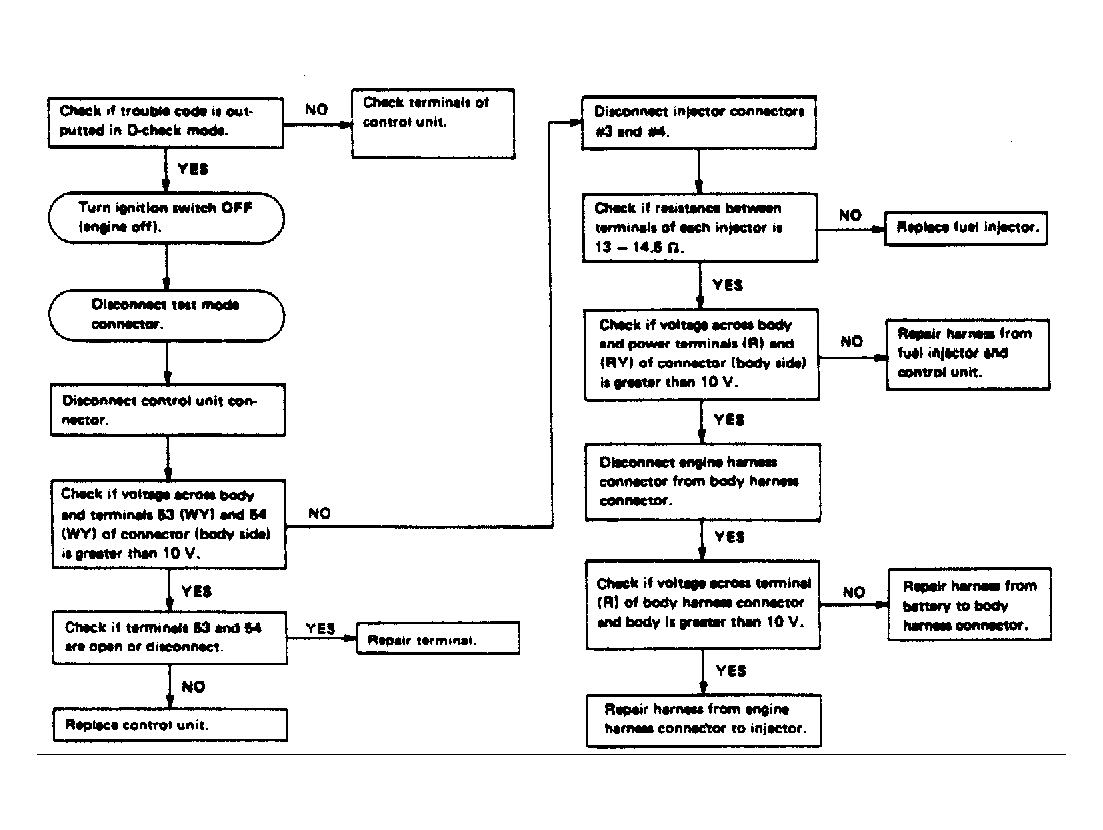

Fig 1: Trouble Code 25, Fuel Injector (XT 2.7L Model)
