Vacuum Pump

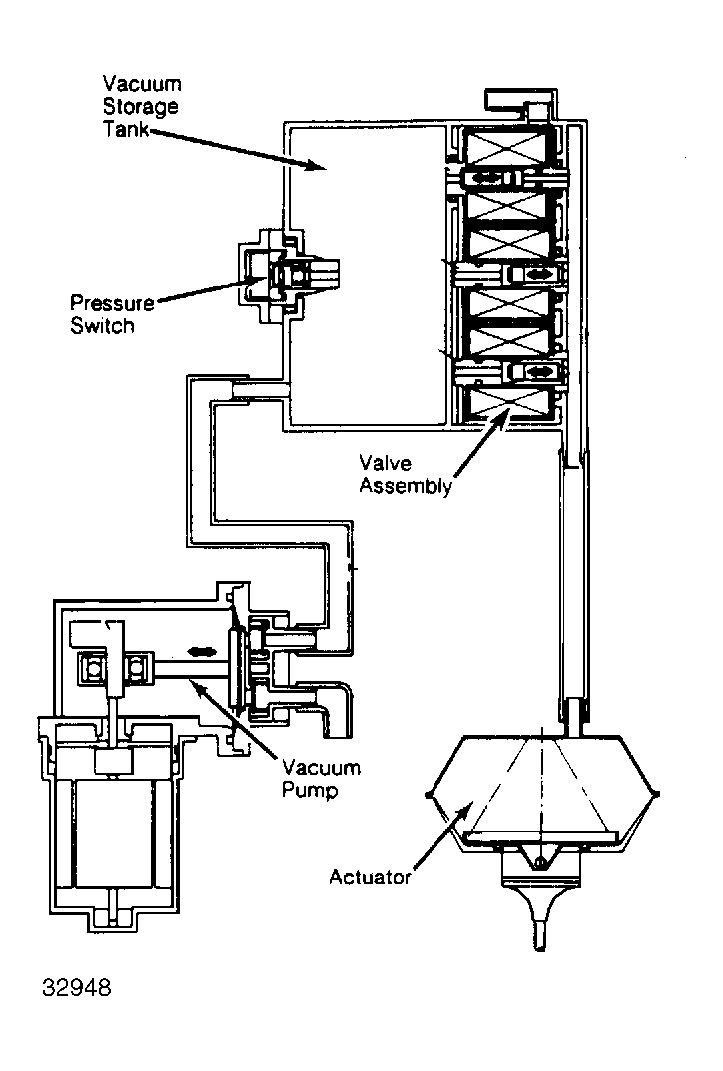

An electrically driven diaphragm pump supplies vacuum to a storage tank and valve assembly. A pressure switch located in the storage tank controls the pump. With ignition on, vacuum range is controlled between 12.6 in. Hg and 14.96 in. Hg. Vacuum pump, which is attached to tank and valve assembly, is mounted on right side of engine compartment. SeeFig 1 .
