Cruise Control Systems: Operation: Actuator

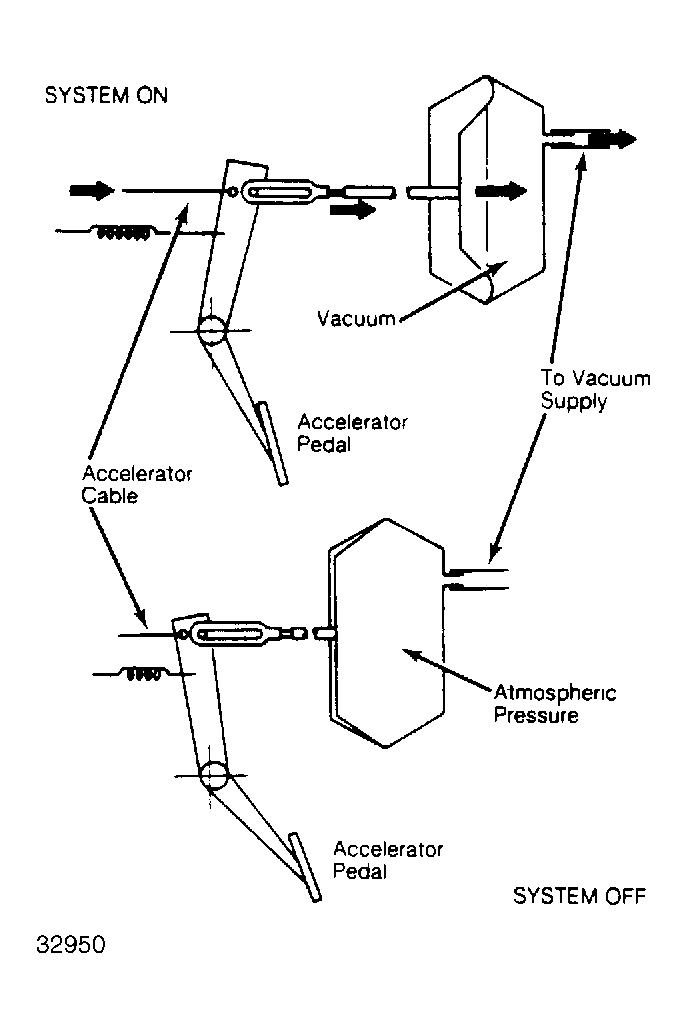

Diaphragm movement is controlled by vacuum and atmospheric pressure. Diaphragm movement operates a cable which controls accelerator position. When system is off, no vacuum is supplied to actuator unit. SeeFig 1 .
