Wiring Diagrams

Fig 1: Wiring Diagram For Justy

G95085

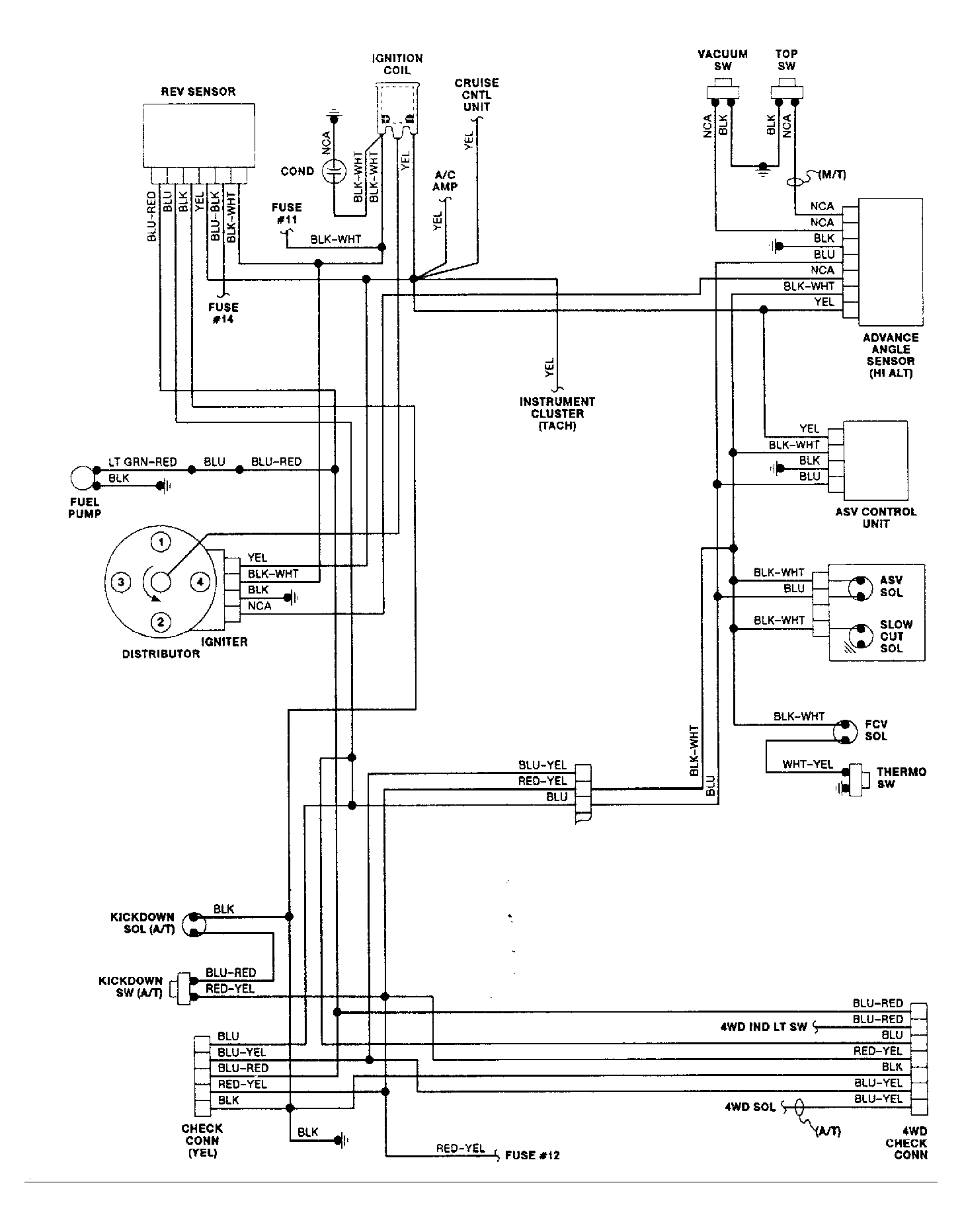

Fig 2: Wiring Diagram For Hatchback

G95086
