Ground & Control Unit Power Supply & Ignition Control System

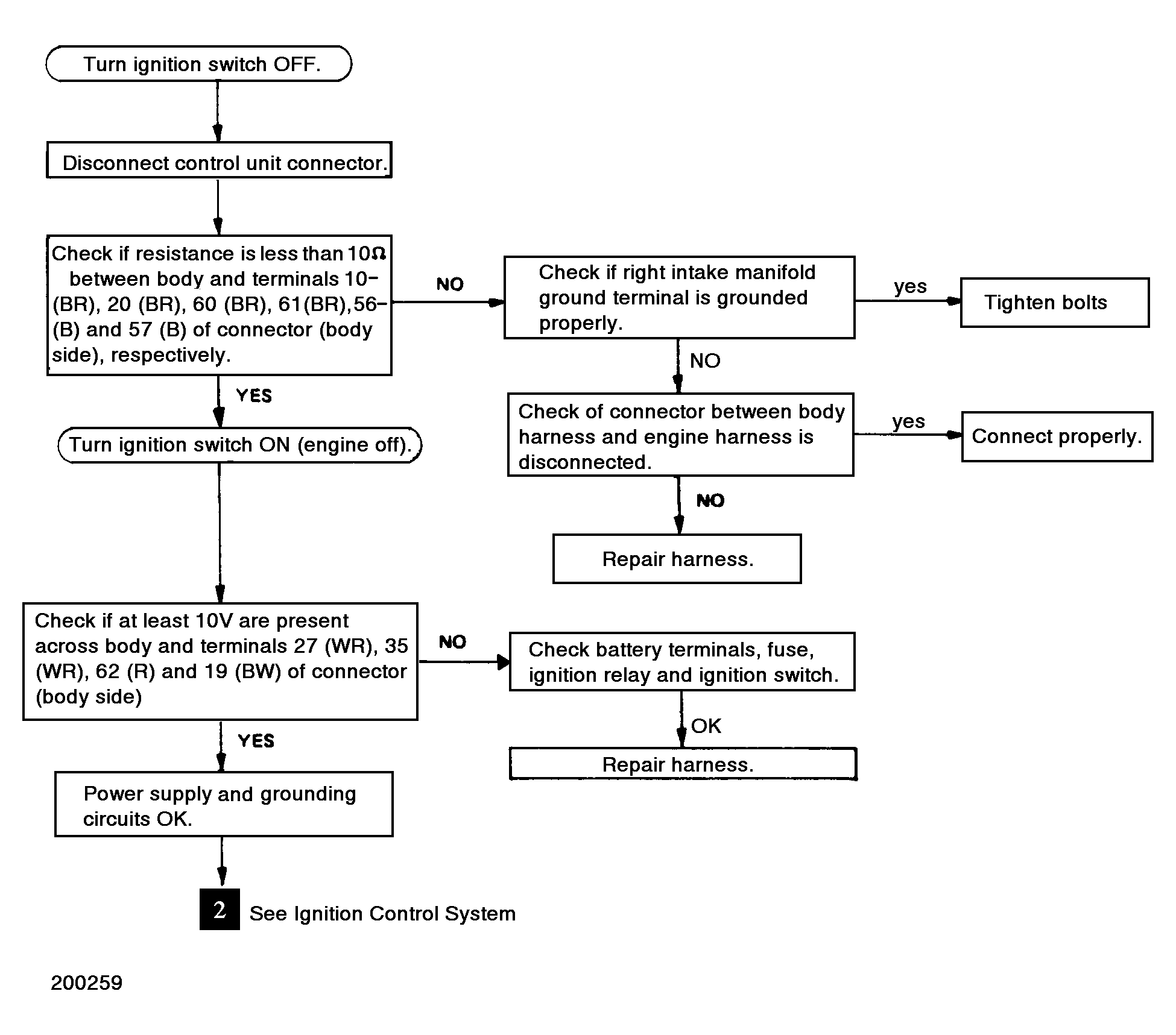

Fig 1: Ground & Control Unit Power Supply & Ignition Control System

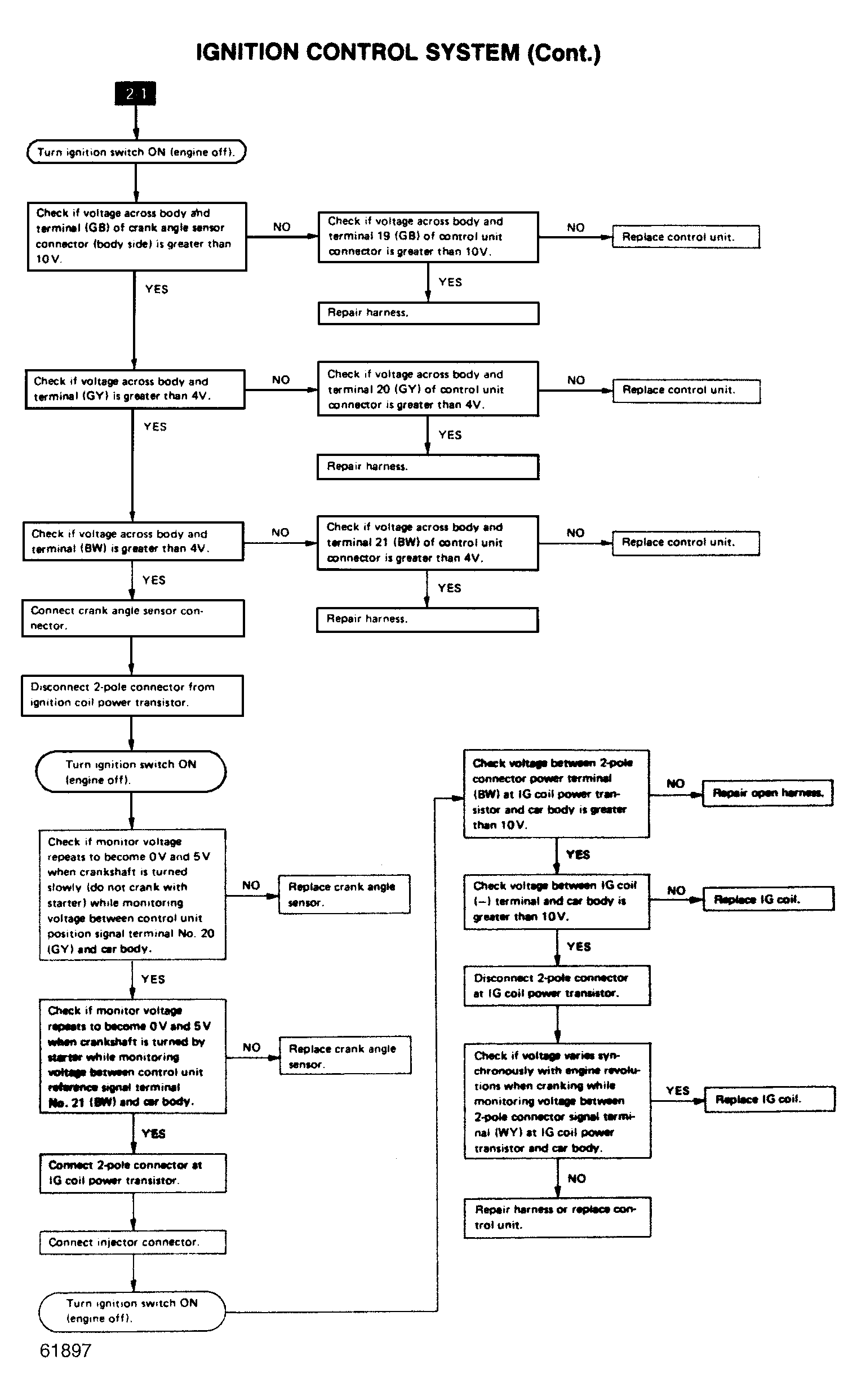

Fig 2: Ignition Control System (Cont.)
