Differential Assembly: Disassembly

  1. Remove snap rings from drive shafts. Mark axle drive shafts for location. Remove axle drive shafts. Remove ring gear. Drive pin toward ring gear surface.
  2. Remove pinion shaft. Remove side gears, pinion gears and washers. Note washer installation. Remove roller bearings. See Fig 1.

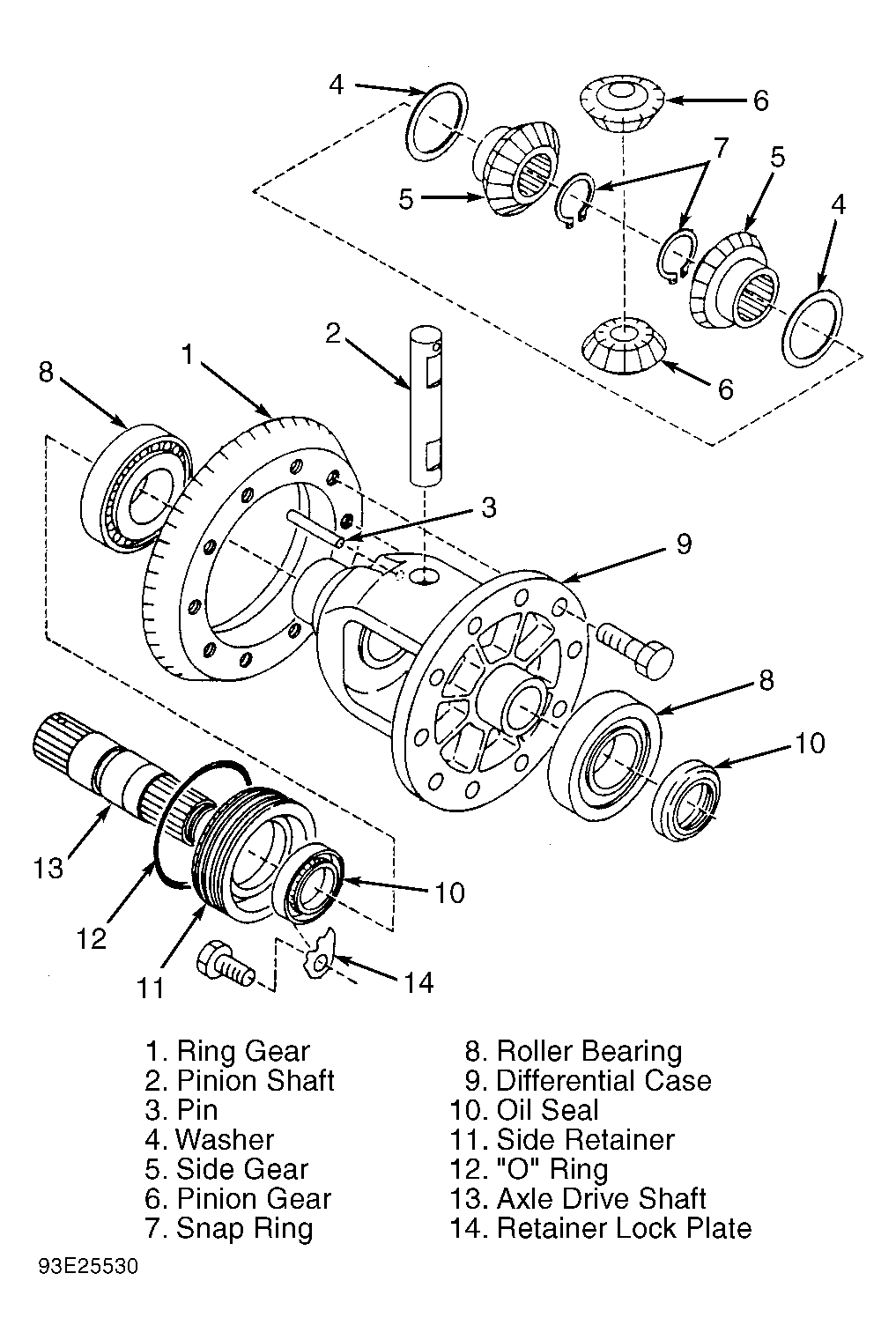

Fig 1: Exploded View Of Differential Assembly
G93E25530Courtesy of SUBARU OF AMERICA, INC.
