Fuel Pump Circuit

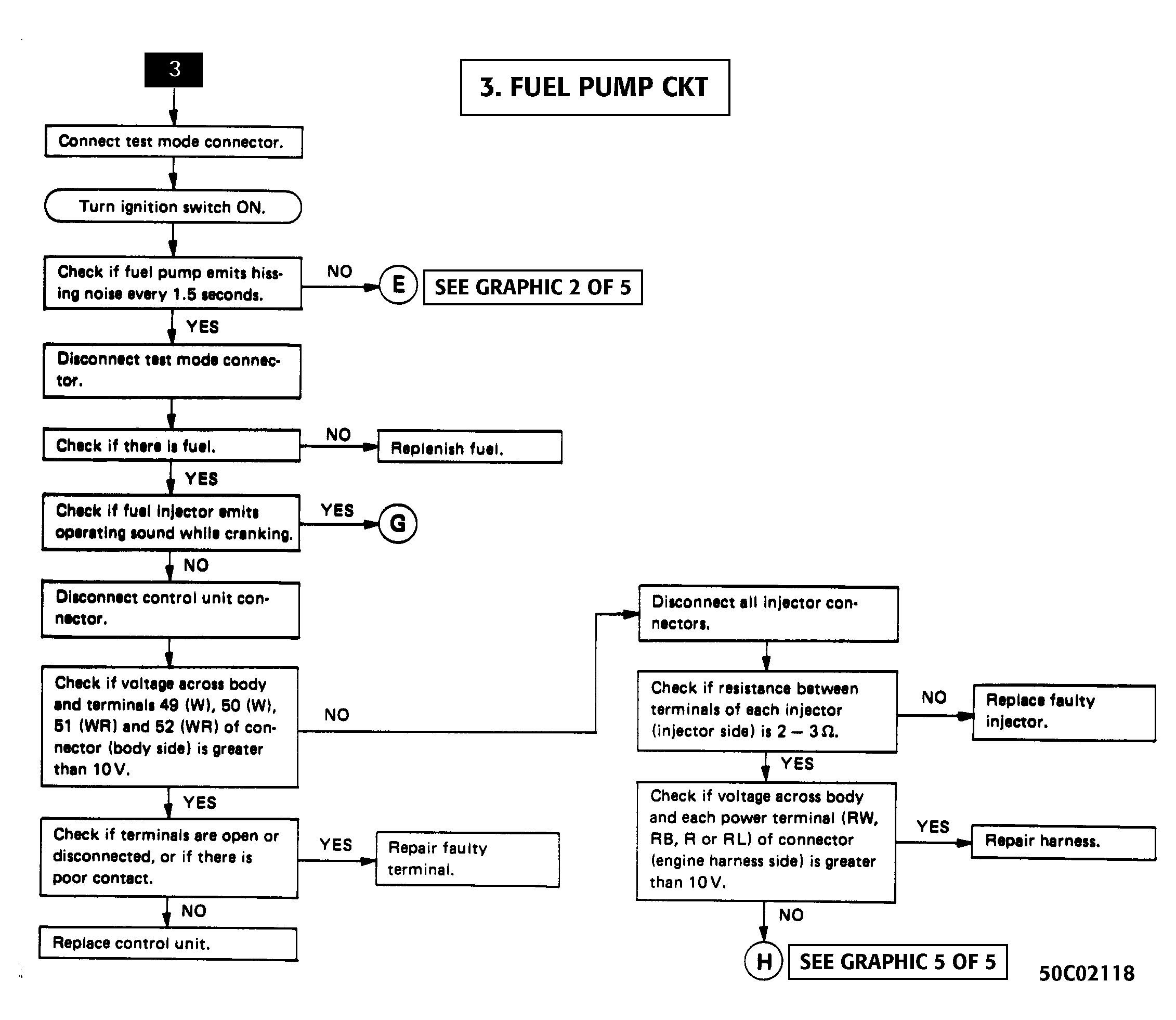

Fig 1: Fuel Pump Circuit Part 1 of 5

G50C02118

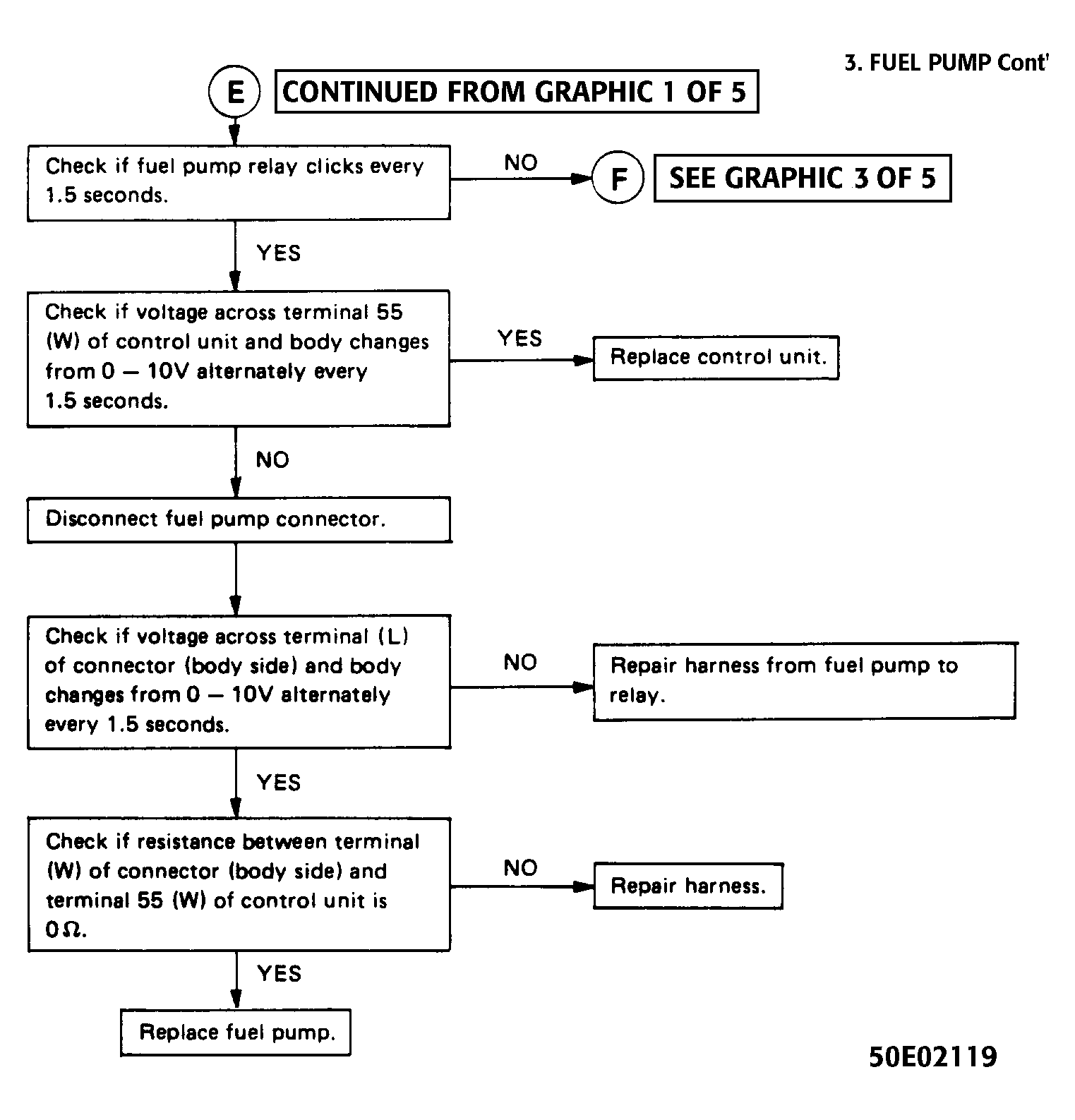

Fig 2: Fuel Pump Circuit Part 2 of 5

G50E02119

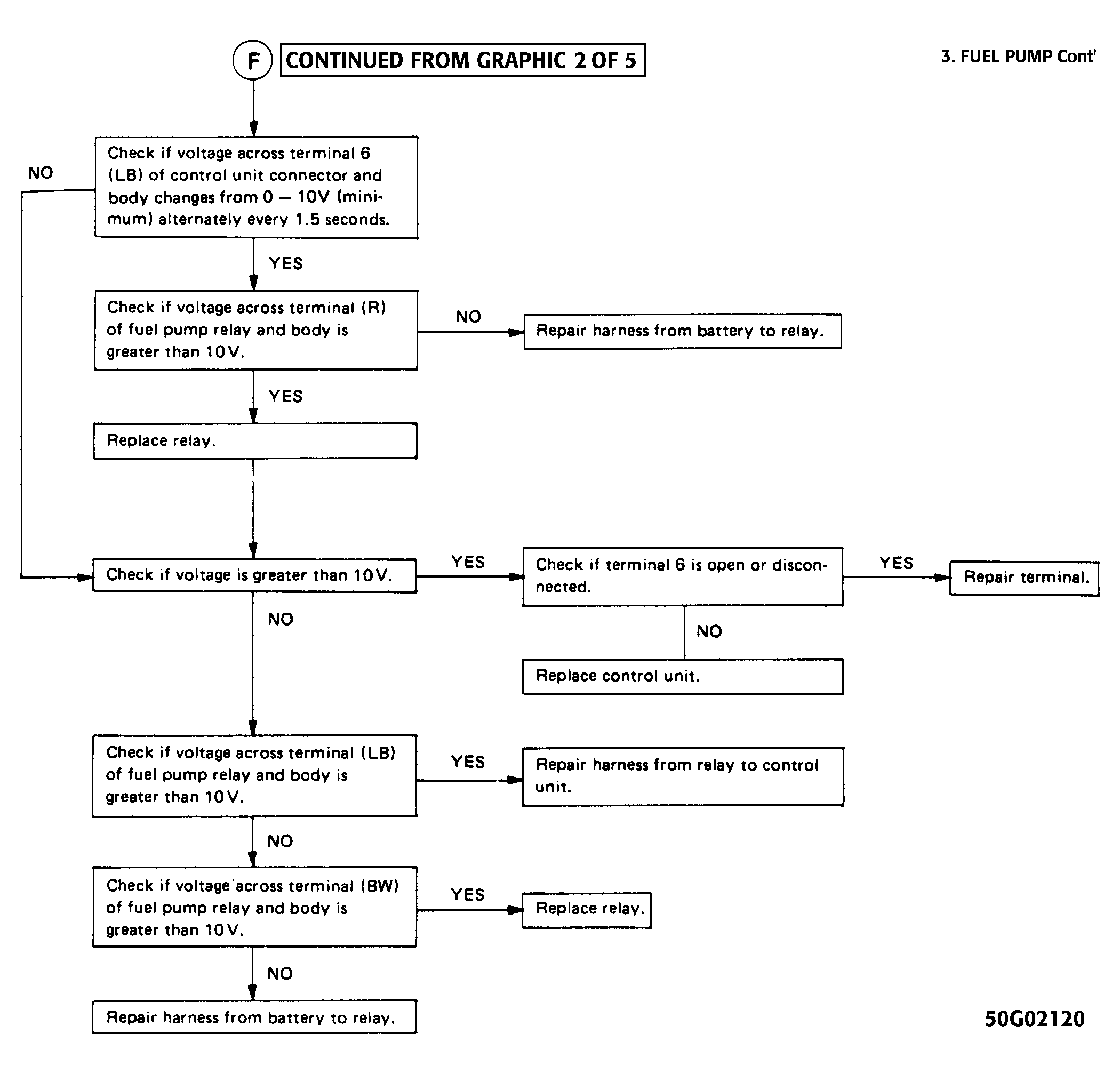

Fig 3: Fuel Pump Circuit Part 3 of 5

G50G02120

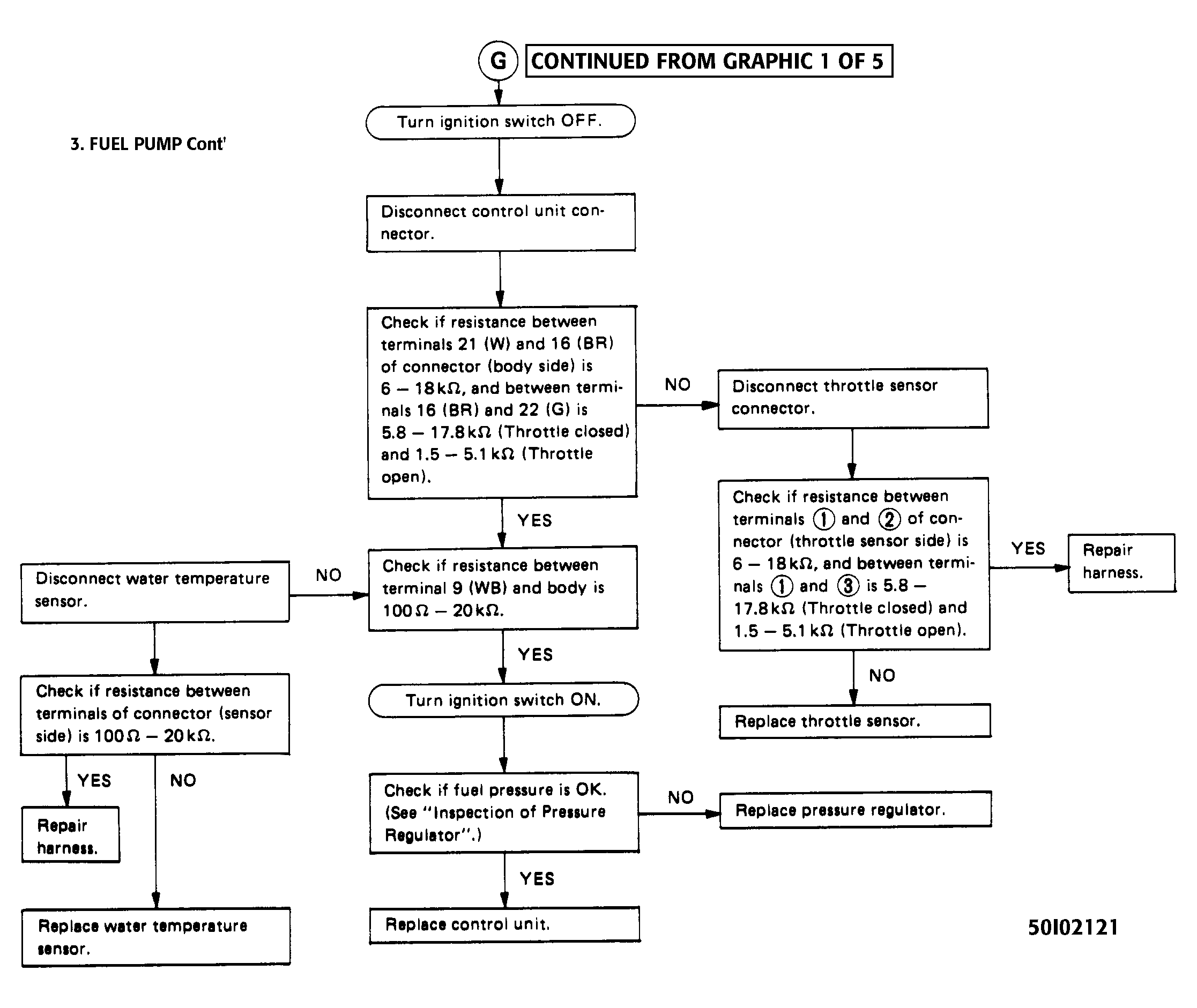

Fig 4: Fuel Pump Circuit Part 4 of 5

G50I02121

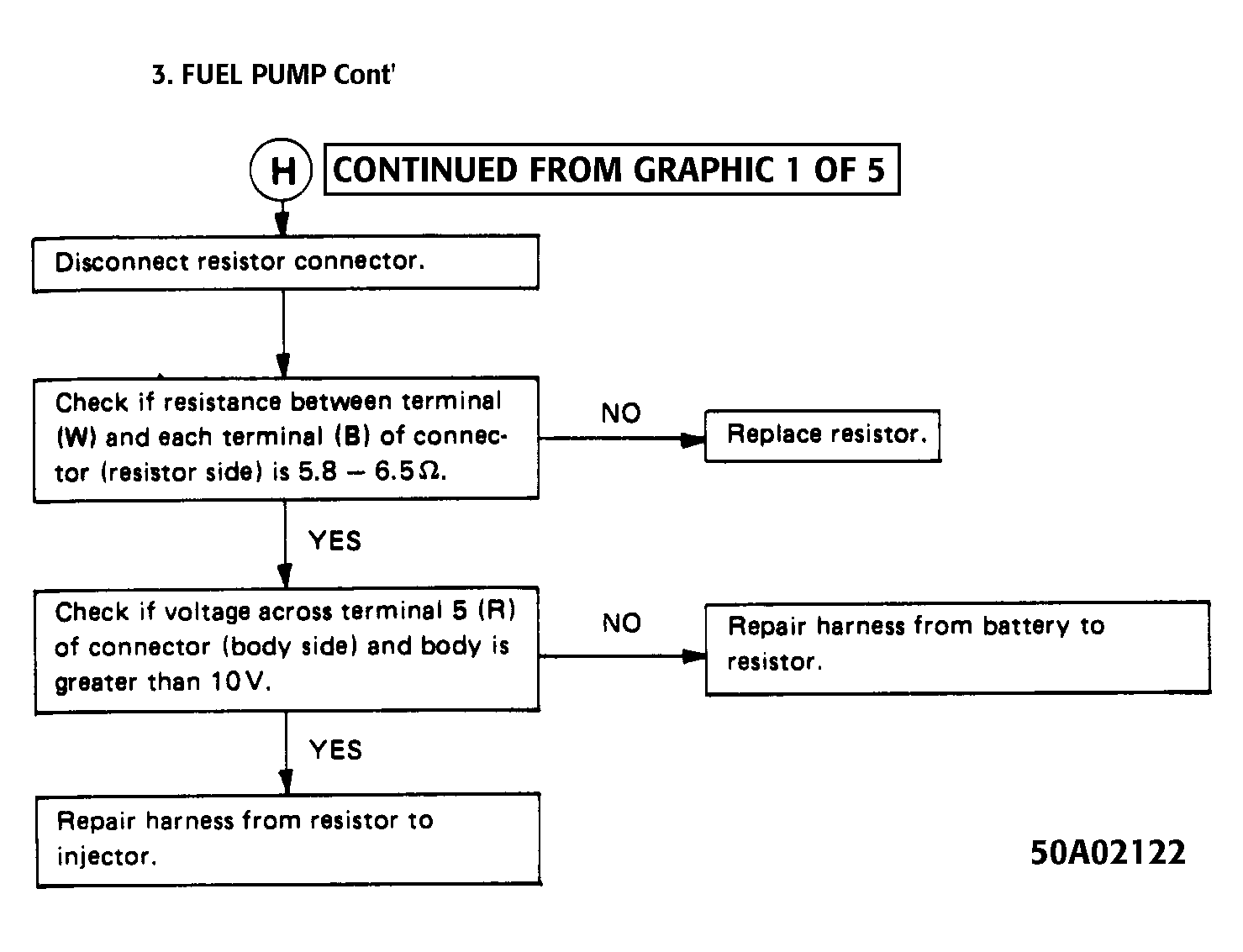

Fig 5: Fuel Pump Circuit Part 5 of 5

G50A02122
