Wiring Diagrams

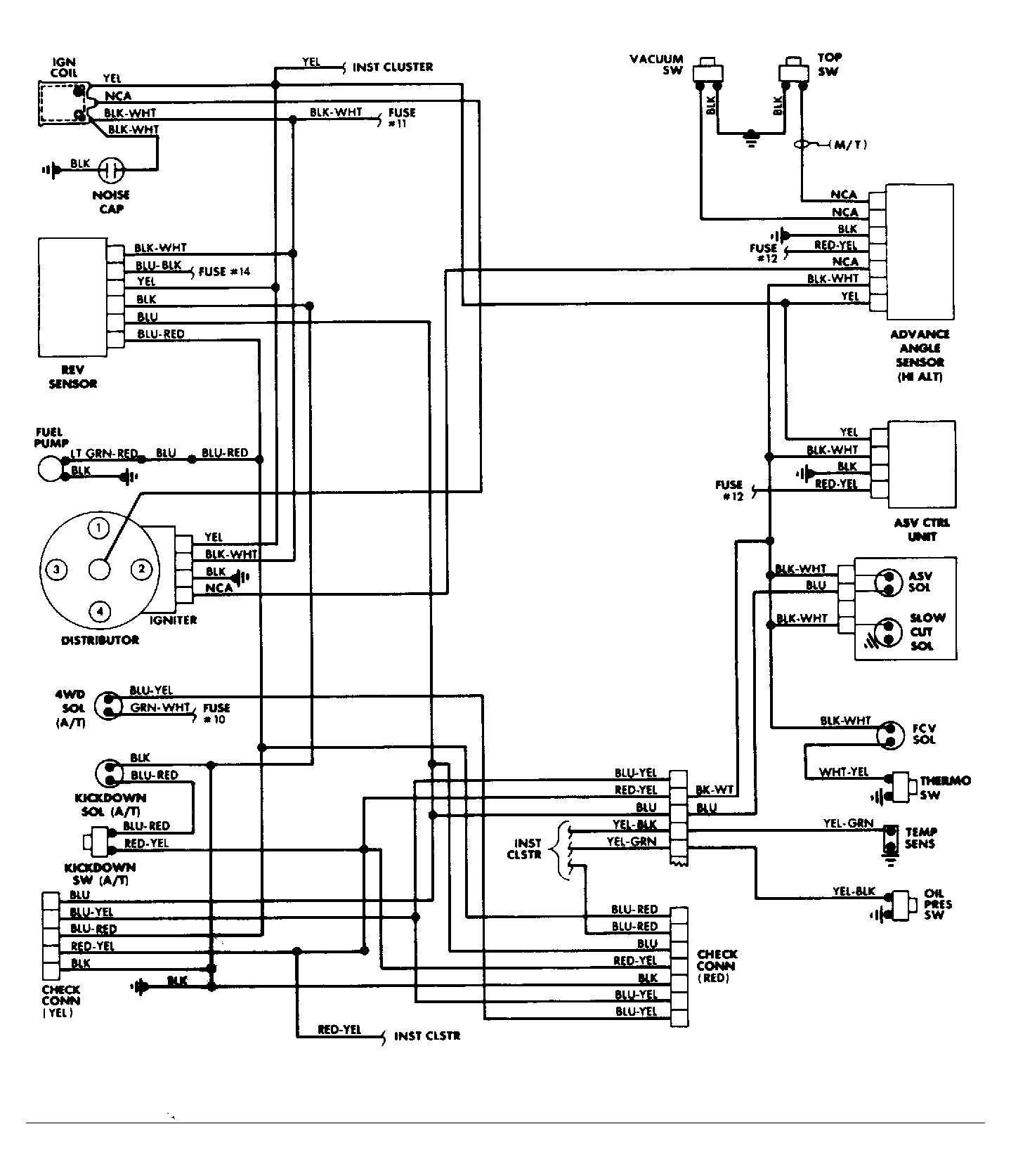

Fig 1: Wiring Diagram For All Carbureted Models Except Justy

G61847

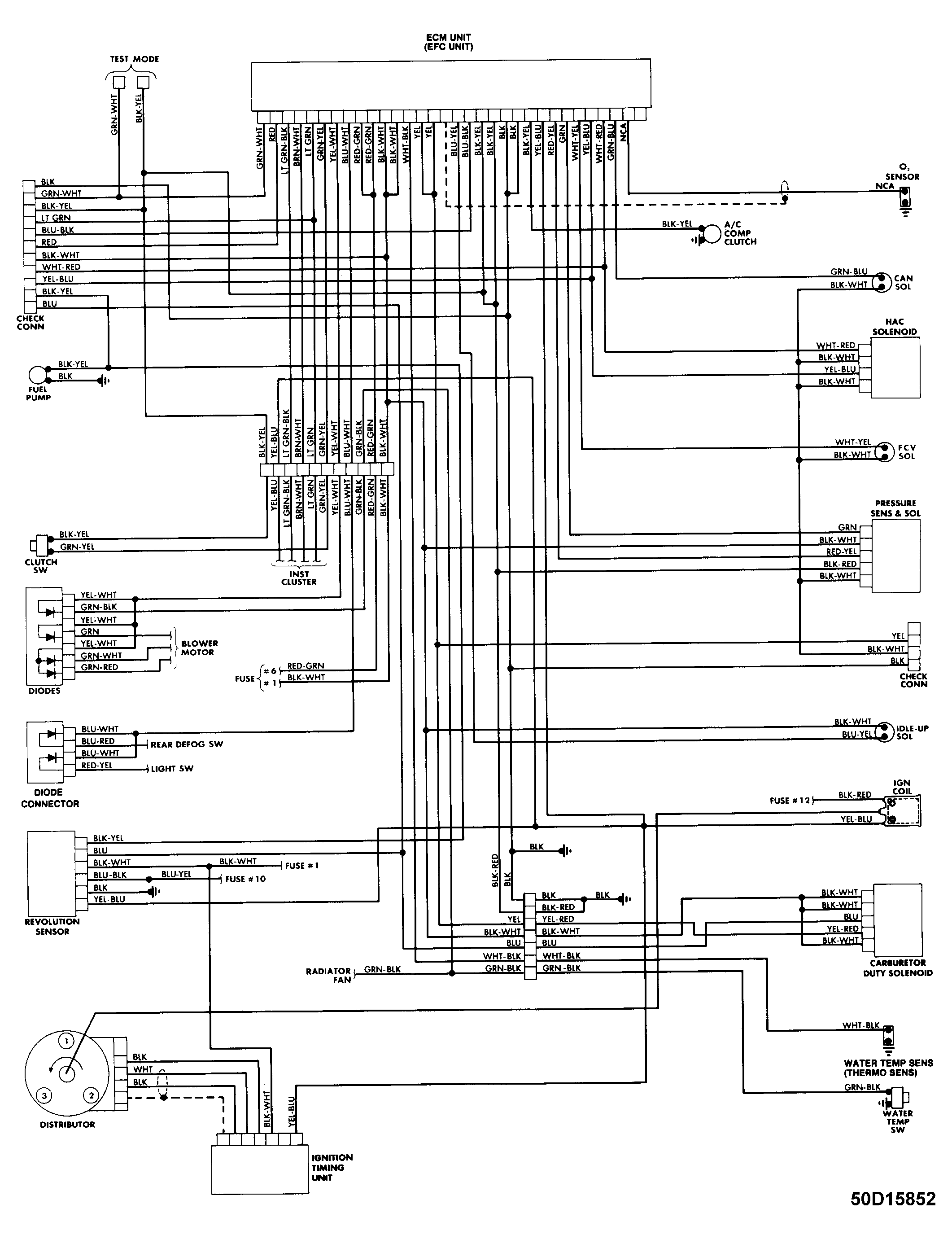

Fig 2: Wiring Diagram For Justy

G50D15852
