Test Mode Diagnostic Chart "A"
Test Mode Diagnostic Chart "A"

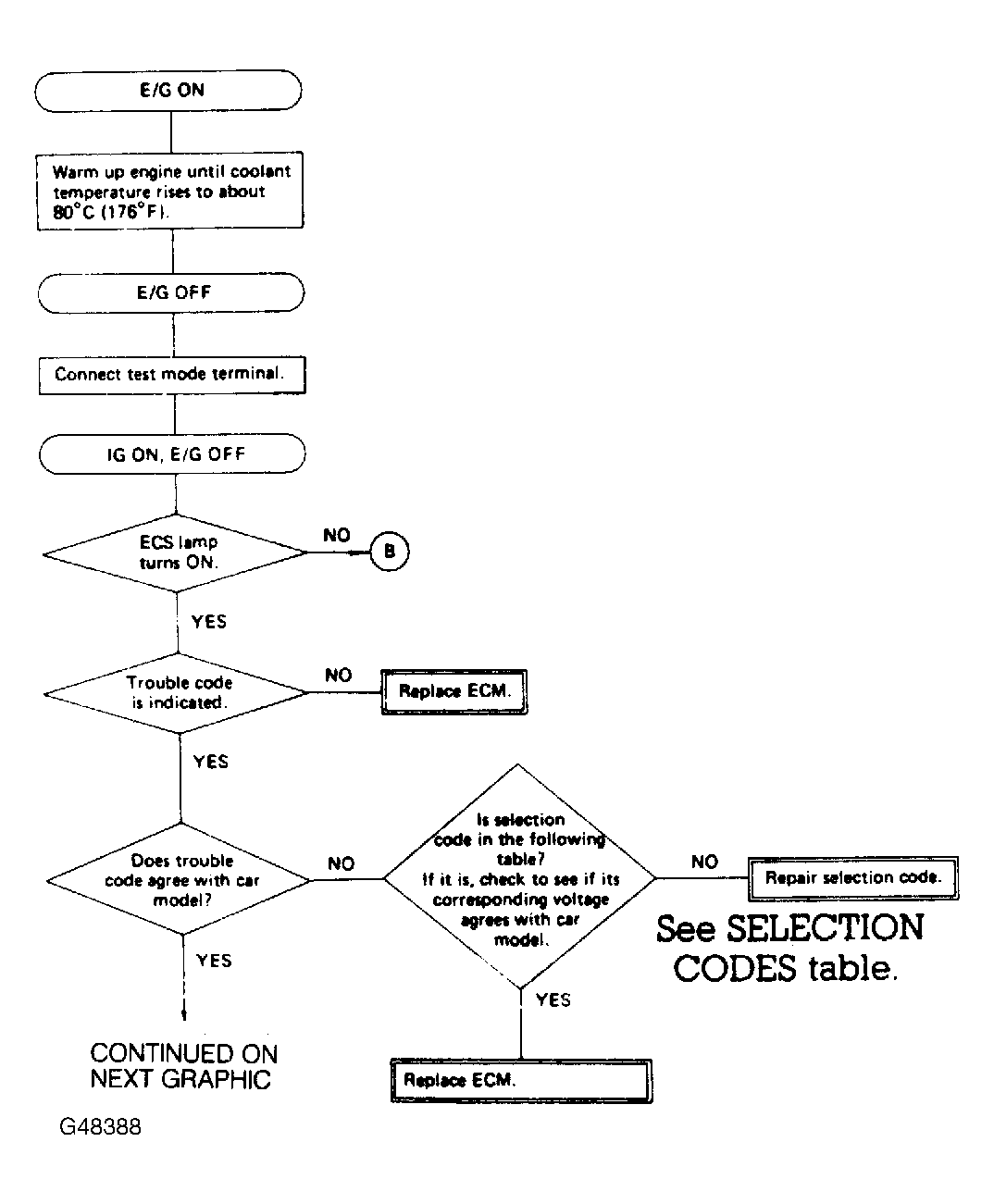

Fig 1: Test Mode Diagnostic Chart "A" (Part 1 of 2)

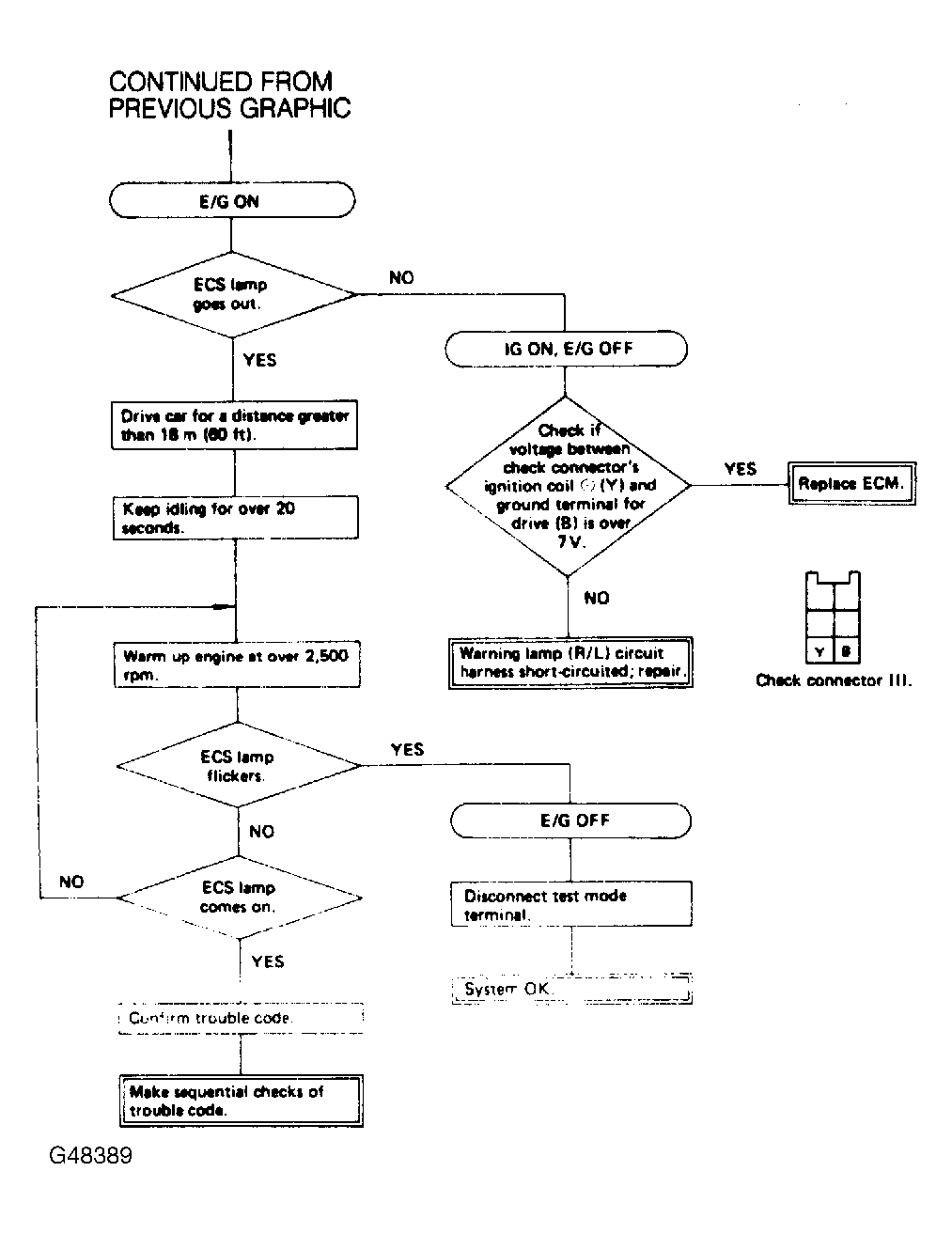

Fig 2: Test Mode Diagnostic Chart "A" (Part 2 of 2)
