Fuel Injection System - SUBARU SPFI: Wiring Diagram

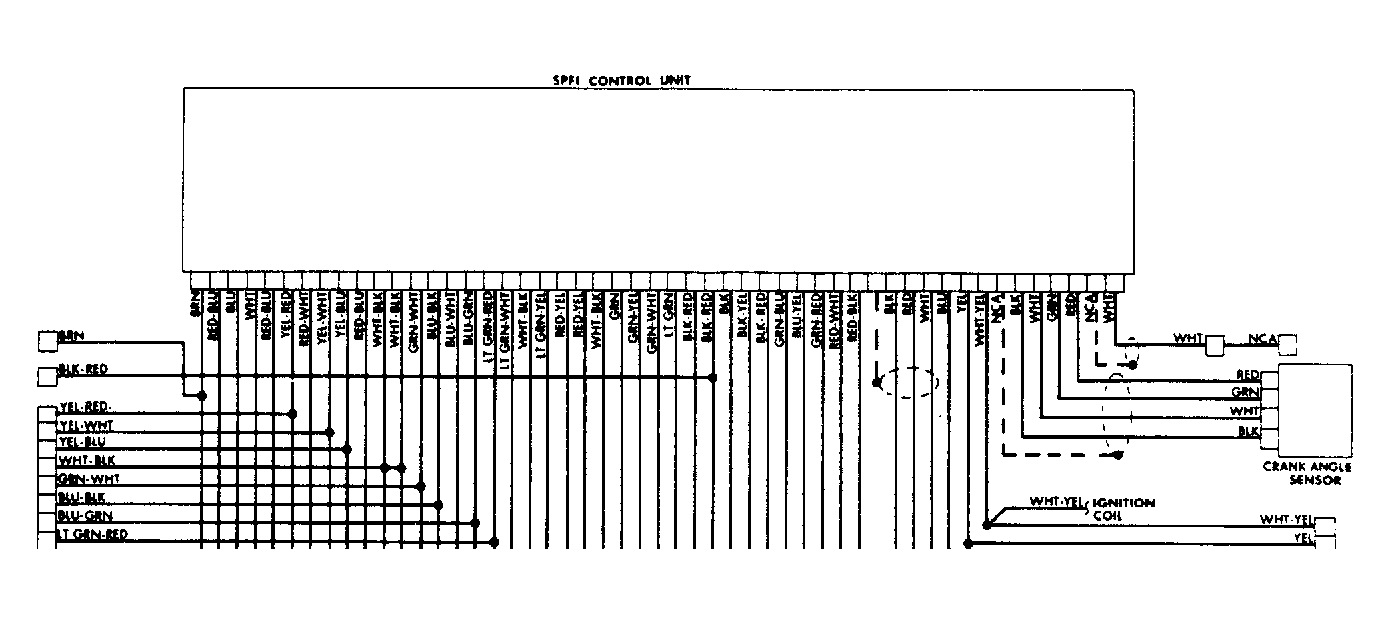

Fig 1: Subaru Single Point Fuel Injection (SPFI) Wiring Diagram

G48374
