Regular Mode & Test Mode

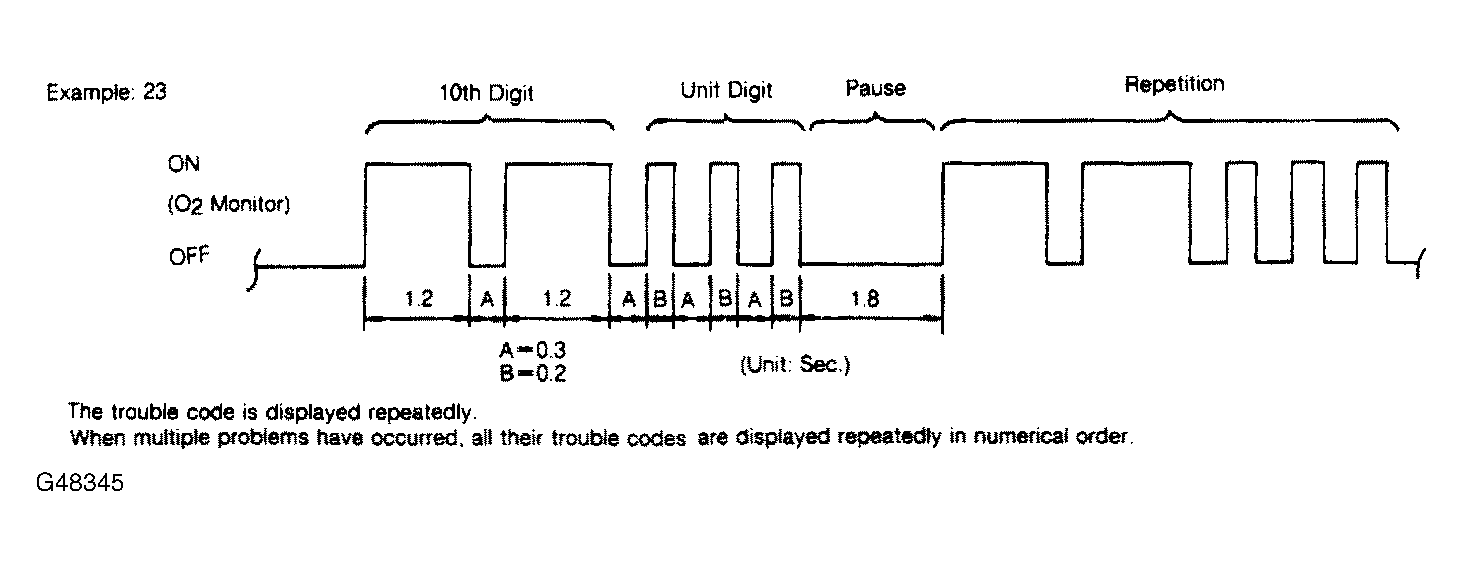

The self-diagnosing function is available in 2 modes, regular mode and test mode. Test mode is achieved by connecting the test mode connector together. The test mode connector must always be disconnected after testing. Test mode is a special mode provided to perform self-diagnosis quickly. Regular mode occurs when the test mode connector is disconnected. The D-Check chart in TROUBLE SHOOTING CHARTS is used with this test mode procedure.
