Flow Chart - Trouble Code 55

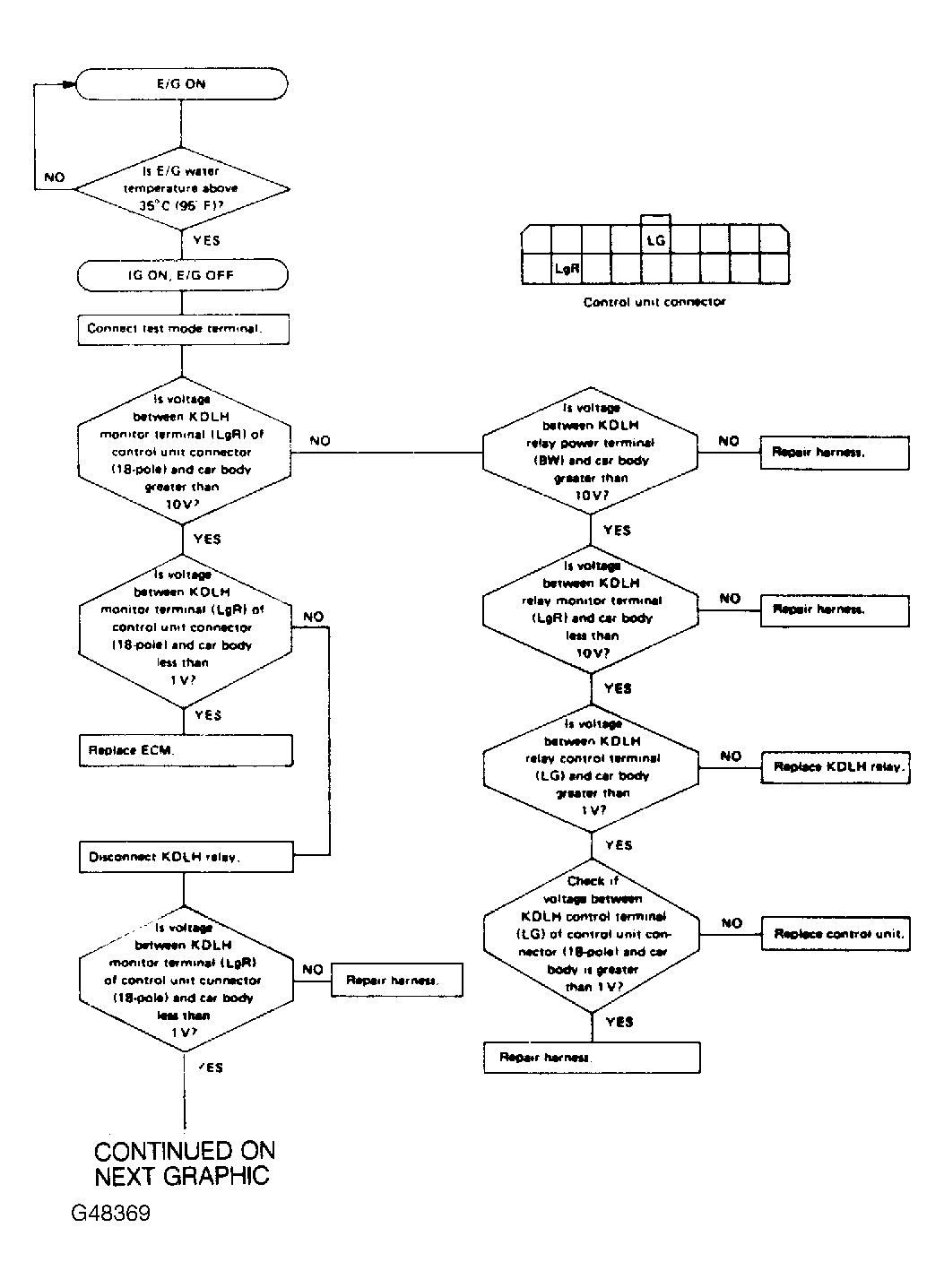

Fig 1: Trouble Code 55 (1 of 2)

G48369

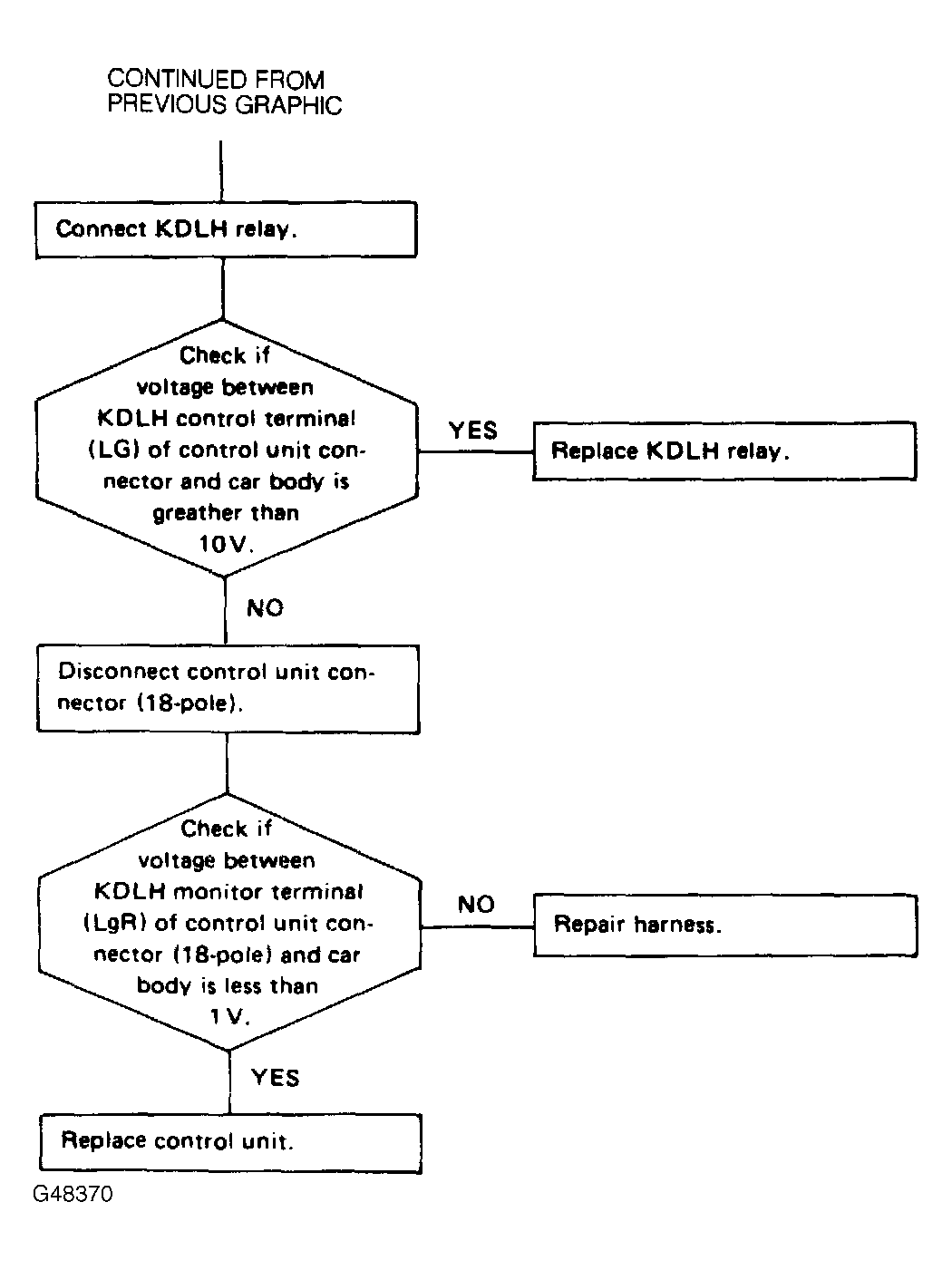

Fig 2: Trouble Code 55 (2 of 2)

G48370
