Flow Chart - D-Check

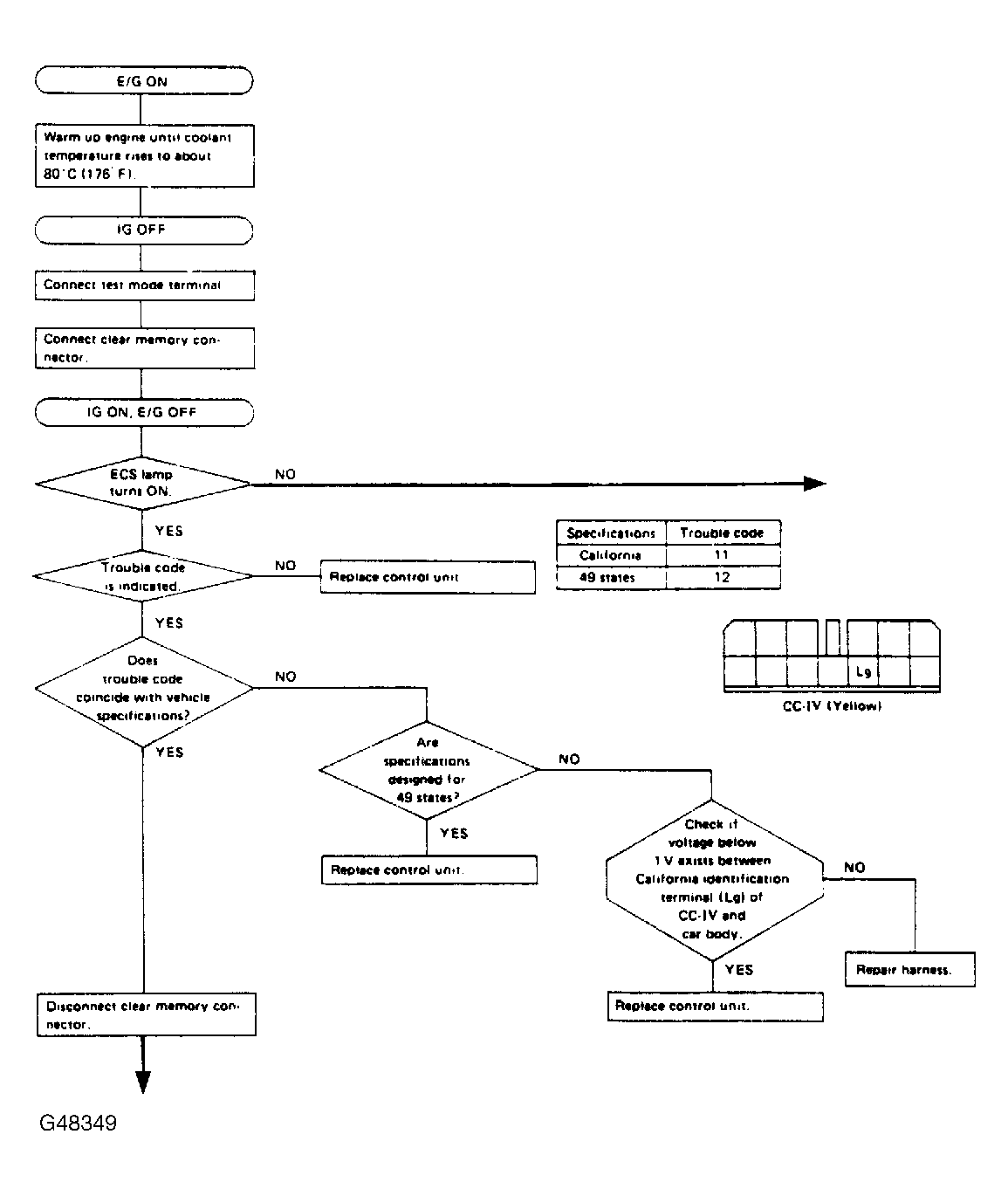

Fig 1: D-Check (1 of 3)

G48349

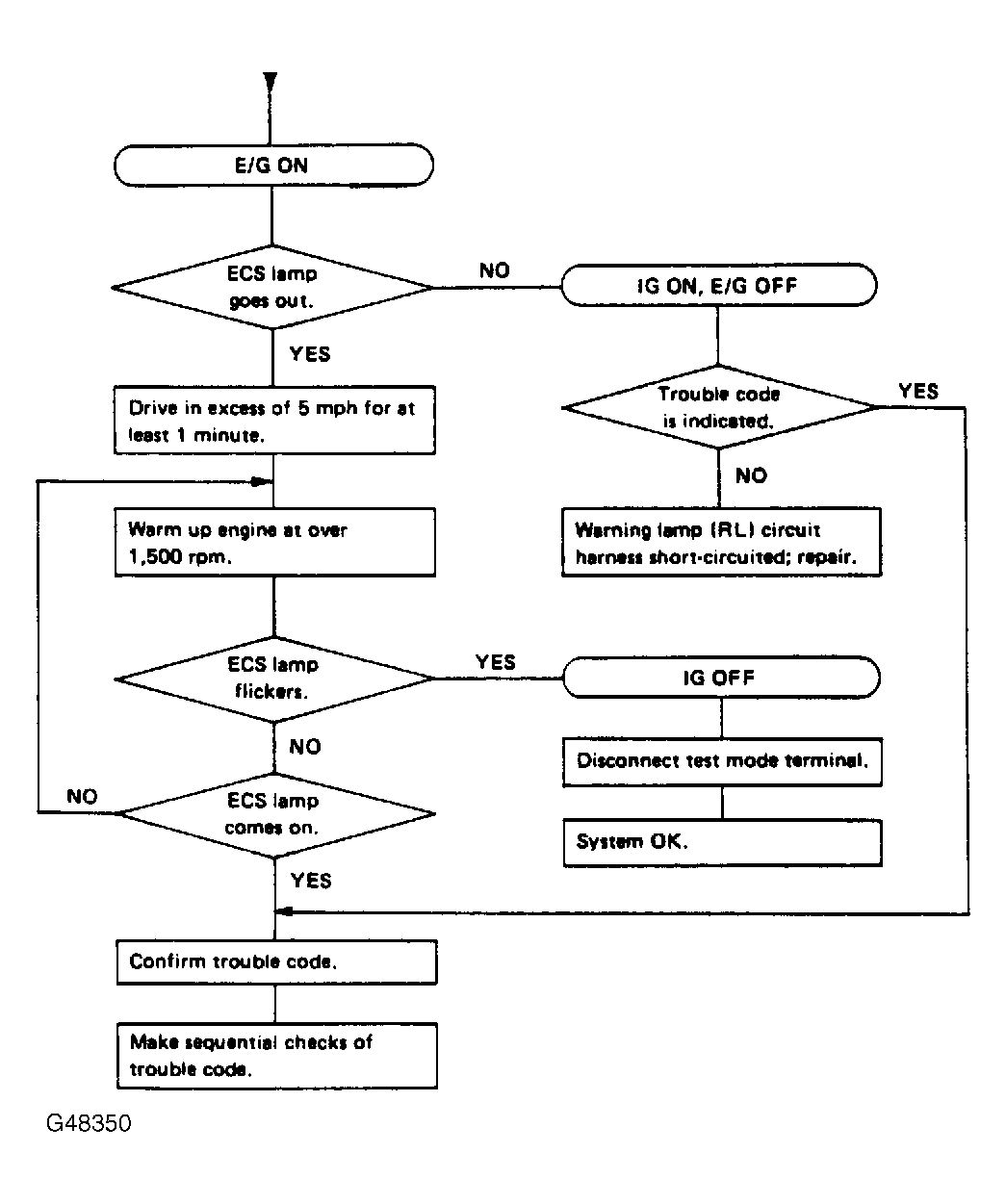

Fig 2: D-Check (2 of 3)

G48350

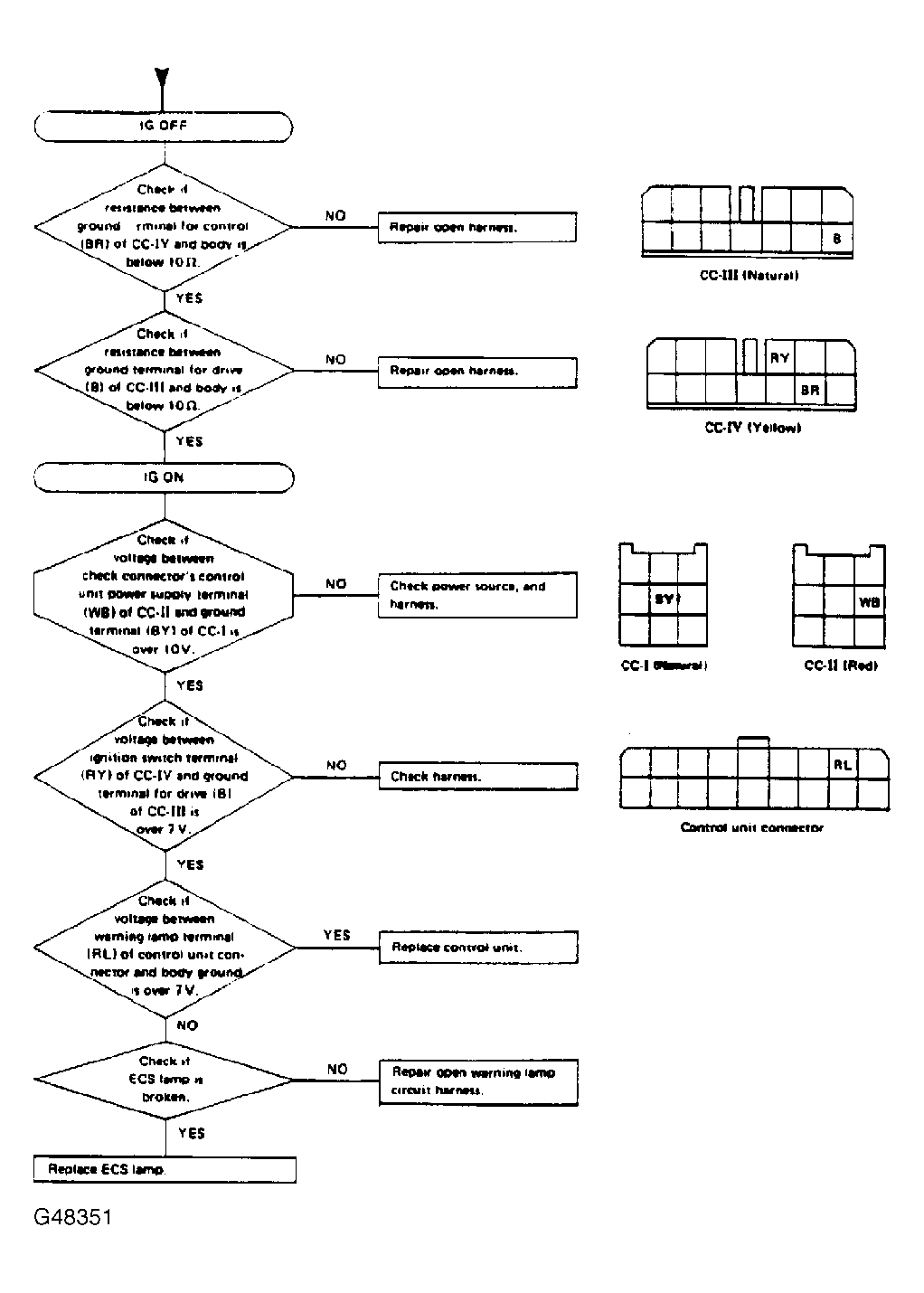

Fig 3: D-Check (3 of 3)

G48351
