Air Gap

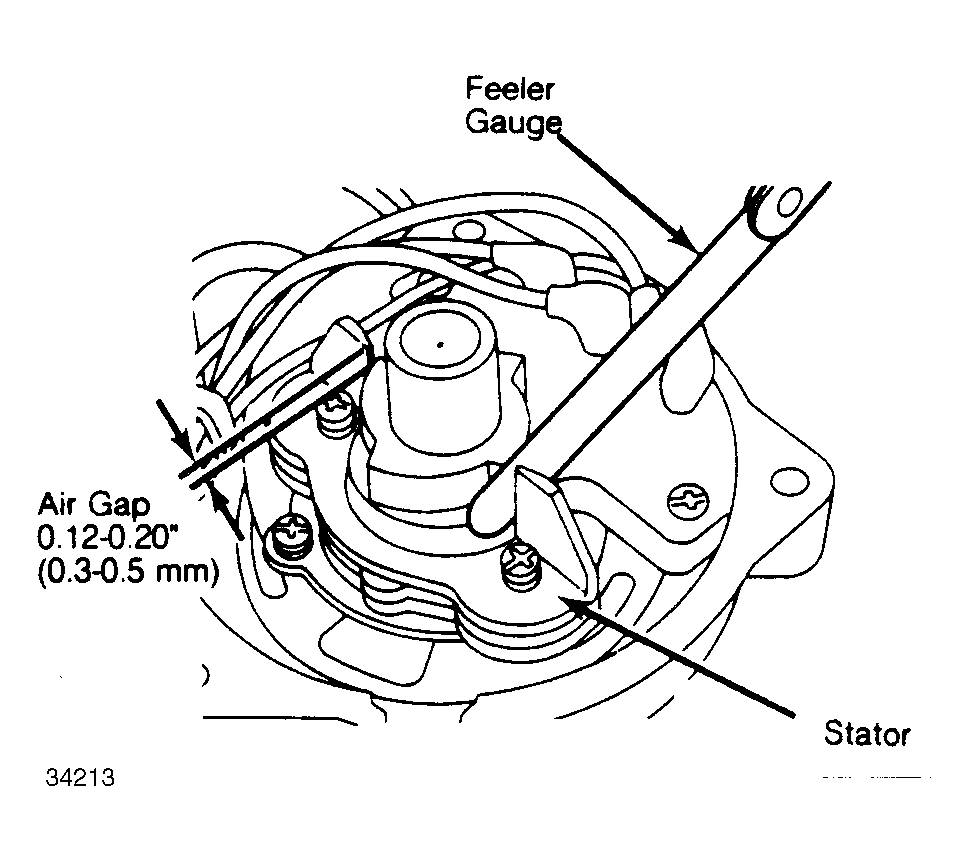

Align tooth of reluctor with upright teeth of stator. Measure air gap with a non-magnetic feeler gauge. Air gap should be .012-.020" (.3-.5 mm). Loosen stator screws to adjust air gap. See Fig 1.
Align tooth of reluctor with upright teeth of stator. Measure air gap with a non-magnetic feeler gauge. Air gap should be .012-.020" (.3-.5 mm). Loosen stator screws to adjust air gap. See Fig 1.
