DEALER INSTALLED A/C INSTALLATION MODIFICATIONS

TECHNICAL SERVICE BULLETIN

Reference Number(s): 10-43-85, Date of Issue: November 27, 1985

A/C INSTALLATION INSTRUCTION MODIFICATION

APPLICATION

Model(s): 1986 MY Station Wagon and Sedan with Hitachi Optional Kit A/C

Group: Air Conditioning

Bulletin No.: 10-43-35

Date: November 27, 1985

SERVICE INFORMATION

The installation instructions for the Hitachi A/C kit designed for 1986 Station Wagon, Sedan and 3-Door (SOA 332A103) have been updated.

The proper mounting location is behind the ignition coil mounting bolt where the silencer (muffler) assembly was retained in 1985 Hitachi A/C kits for Station Wagon and Sedan. (See Fig 1 ).

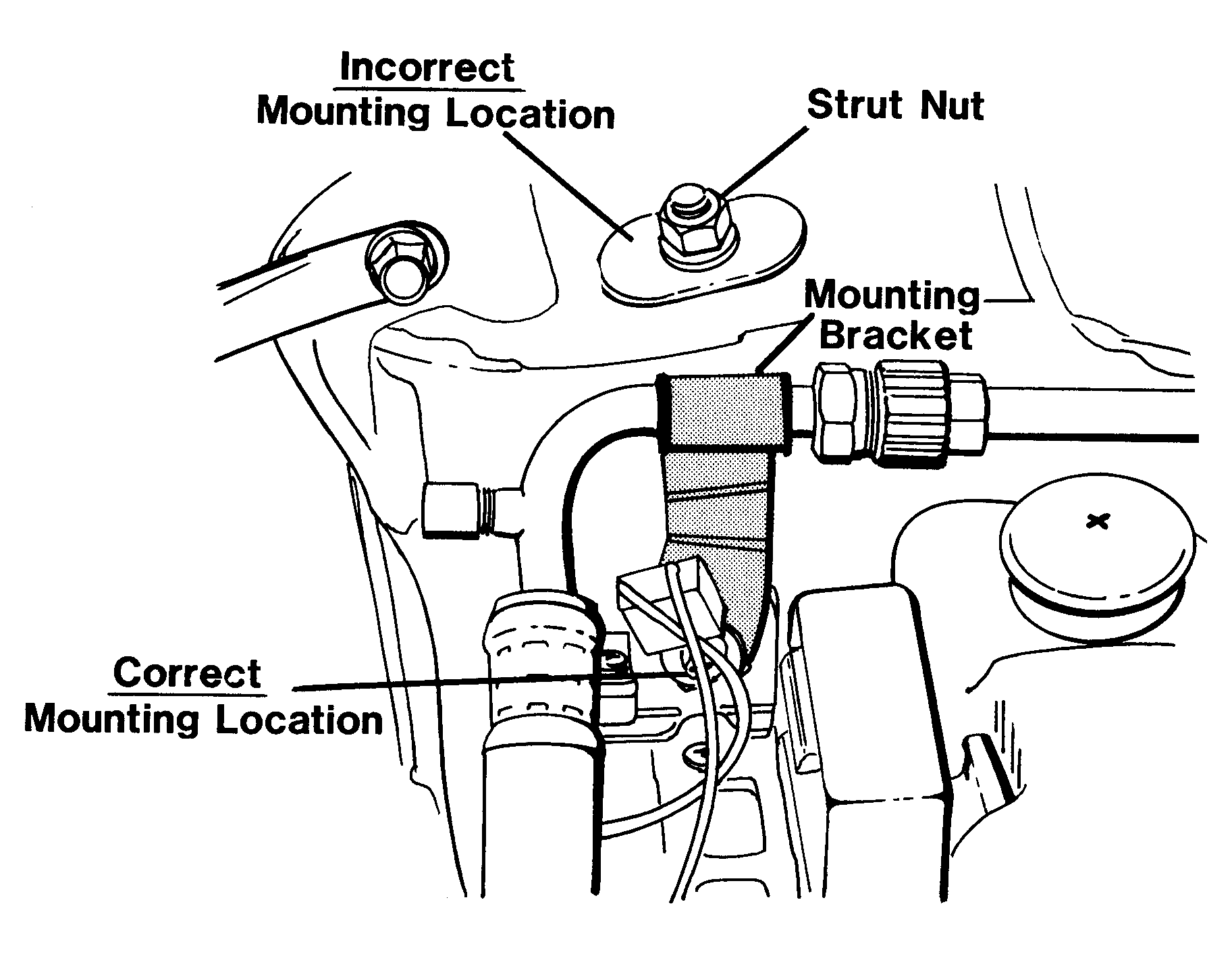

Fig 1: Mounting Location for Discharge Hose Mounting Bracket
