Home >> Subaru >> 1983 >> Subaru 1.8 5 >> Repair and Diagnosis >> Engine Performance >> System >> Feedback Carburetor System >> Diagnosis & Testing >> ECS Lamp Check

ECS Lamp Check

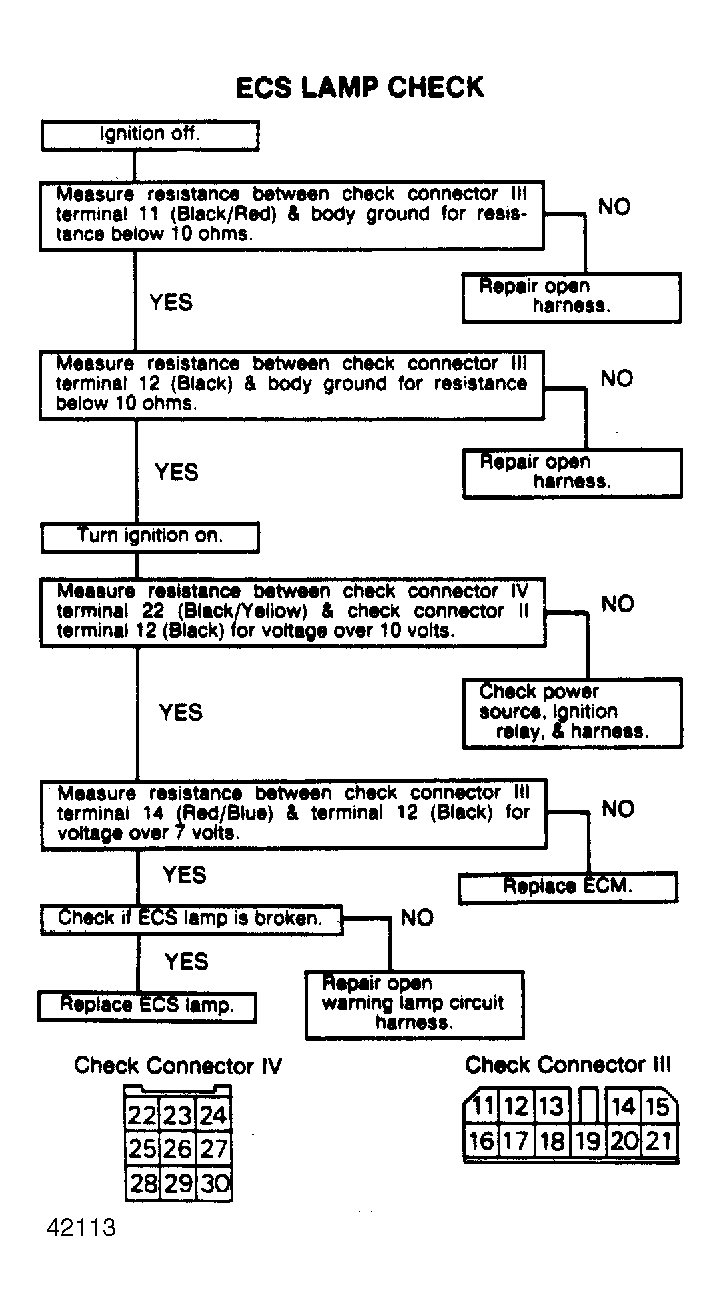

Fig 1: ECS Lamp Check

G42113
