Ignition System - NIPPONDENSO Electronic: Description

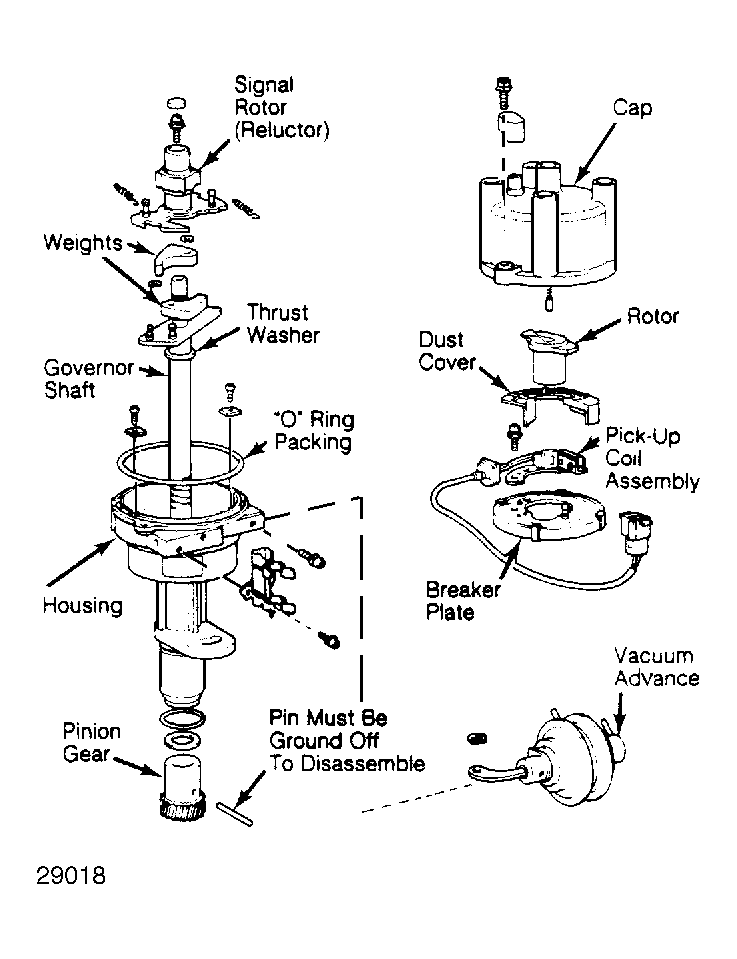

The Nippondenso electronic ignition system includes a breakerless distributor, an igniter (ignition control unit), a special ignition coil, and ignition switch. The distributor consists of a housing, rotor, and cap. It contains a signal rotor (timing rotor or reluctor), magnet, and a magnetic pick-up coil assembly. See Fig 1. The igniter is mounted inside the distributor.
