Component Disassembly & Reassembly: MAINSHAFT: Notes

NOTE: For Exploded View of Transaxle Assembly and Components, See Fig 1 .

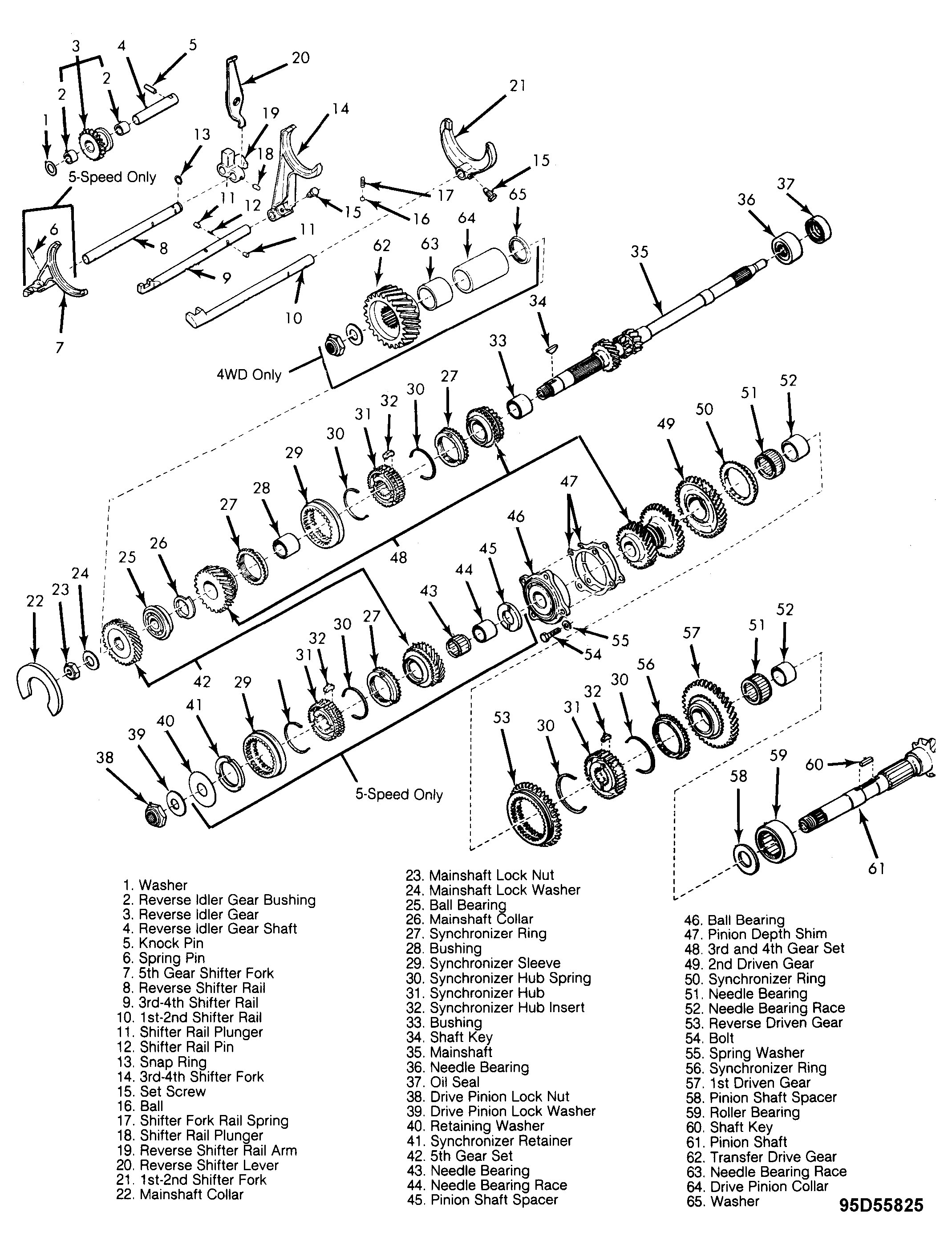

Fig 1: Exploded View of Transaxle Assembly Components
G95D55825Courtesy of SUBARU OF AMERICA, INC.
