Home >> Subaru >> 1982 >> GLF Standard Trans >> Repair and Diagnosis >> Engine Performance >> Emissions >> Base Ignition Timing Specifications >> Base Ignition Timing Specifications

Base Ignition Timing Specifications

Fig 1:

G00323558

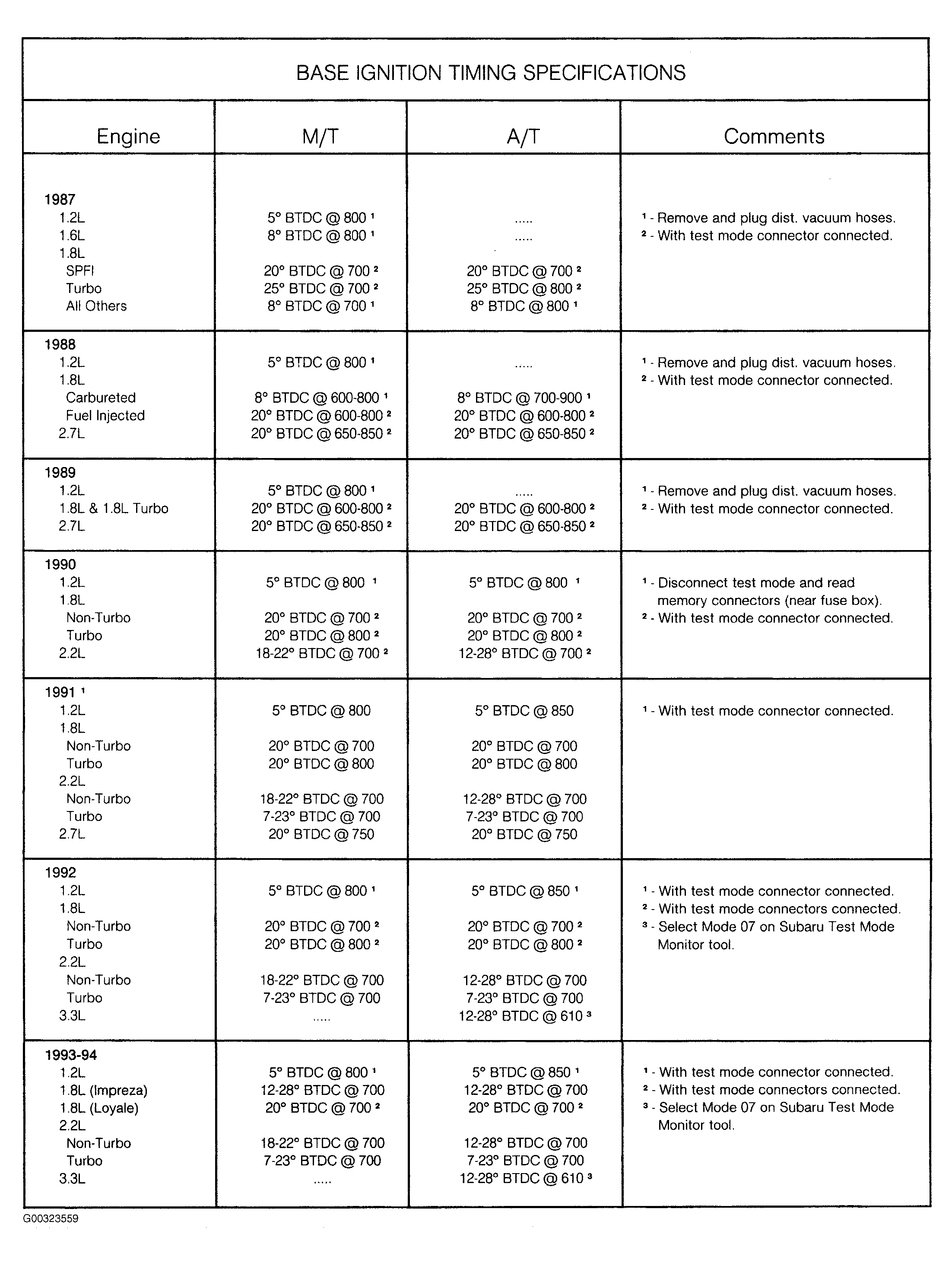

Fig 2:

G00323559

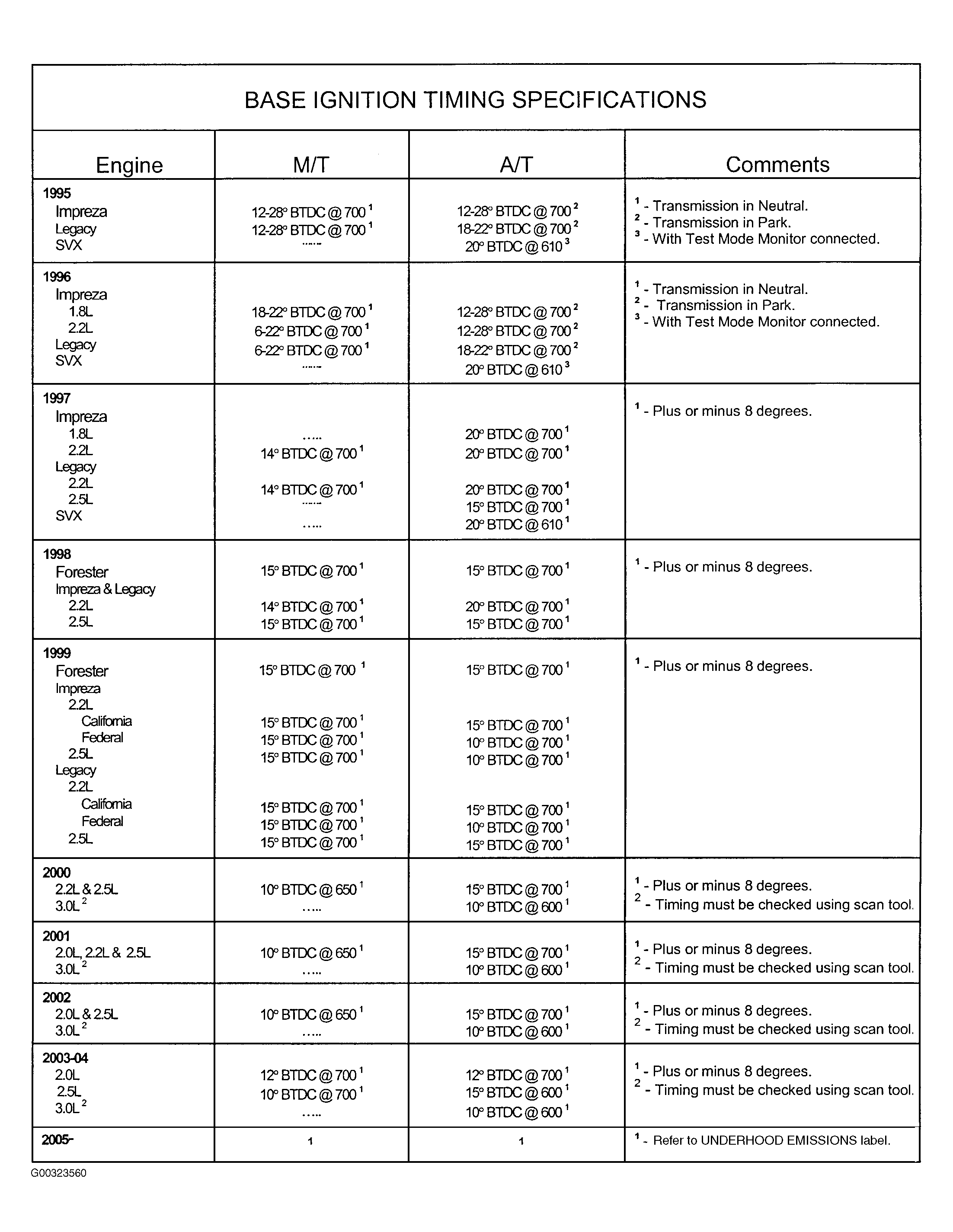

Fig 3:

G00323560
