Wiring Diagrams: UNDERDASH

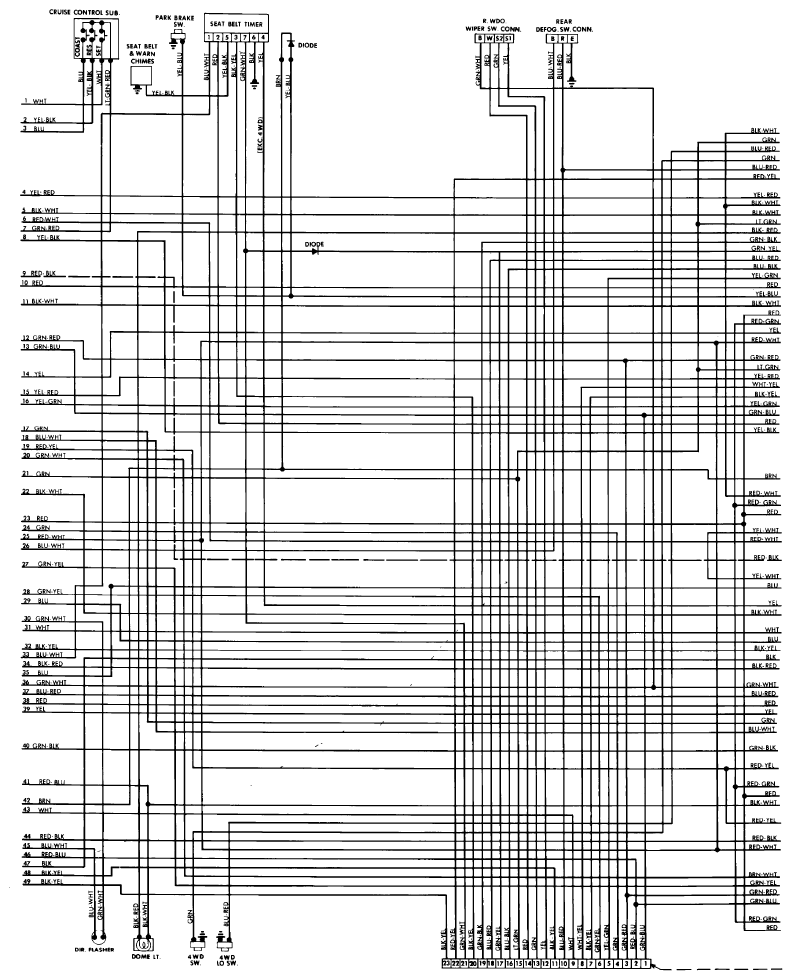

Fig 1: Wiring Diagram - Subaru 1600 & 1800 (3 of 4)

G09304534

Courtesy of SUBARU OF AMERICA, INC.
